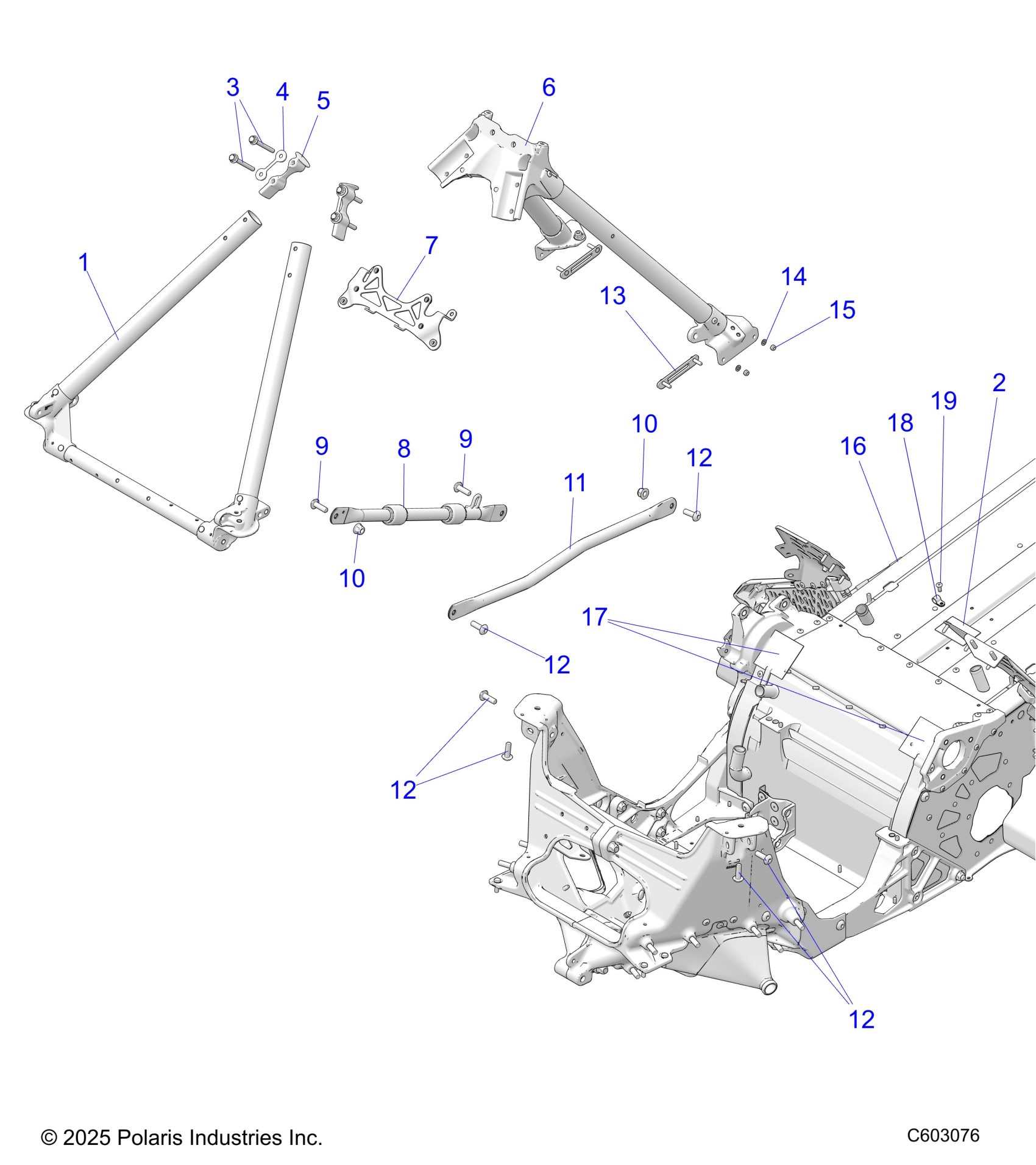

Polaris 650 VOYAGEUR ULTIMATE (R01) - S26TFN6RSP/RSL CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S26TFN6RSP/RSL (C603076) Diagram

#

Description
Price

1

ASM-FRAME TUBLR FRNT W/WNCH MT

1022777

$314.99

2

PAD-40X63.5

5814353

$9.70

3

SCR-HXFL-M6X1X60 10.9 ZOD P30

7520723

$4.99

4

SHIM-TUBE CAST 31.76 DIA

5633083

$6.99

5

SPACER-TUBE CAST 27.00 DIA

5633122

$9.59

6

ASM-TUBE FRAME REAR

1025156

$784.99

7

ASM-REGULATOR MOUNT

1024479

$36.41

8

WELD-CROSS BRACE RH

1027787

$74.99

9

SCREW-TXTR

7518906

$3.19

9

SCREW-TXTR

7518906

$3.19

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

TUBE-BRACE LH BLK

5337391-329

$34.99

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

13

ASM-STUD PLATE 5MM

1023672

$12.79

14

WSHR-FL,5.5X1.0,(10)

7556071

$4.79

15

NUT-M5X.8,HX NYL-Y

7546601

$1.49

16

ASM-CHASSIS 155 BLK

1027767-067

$2,639.99

17

PAD, 2.5"X2.5"

5814187

$4.03

18

CLAMP-CABLE

7080367

$2.39

19

RIVET 3/16(.063-.250)ST-ST-LF-B

7621472

$1.49
