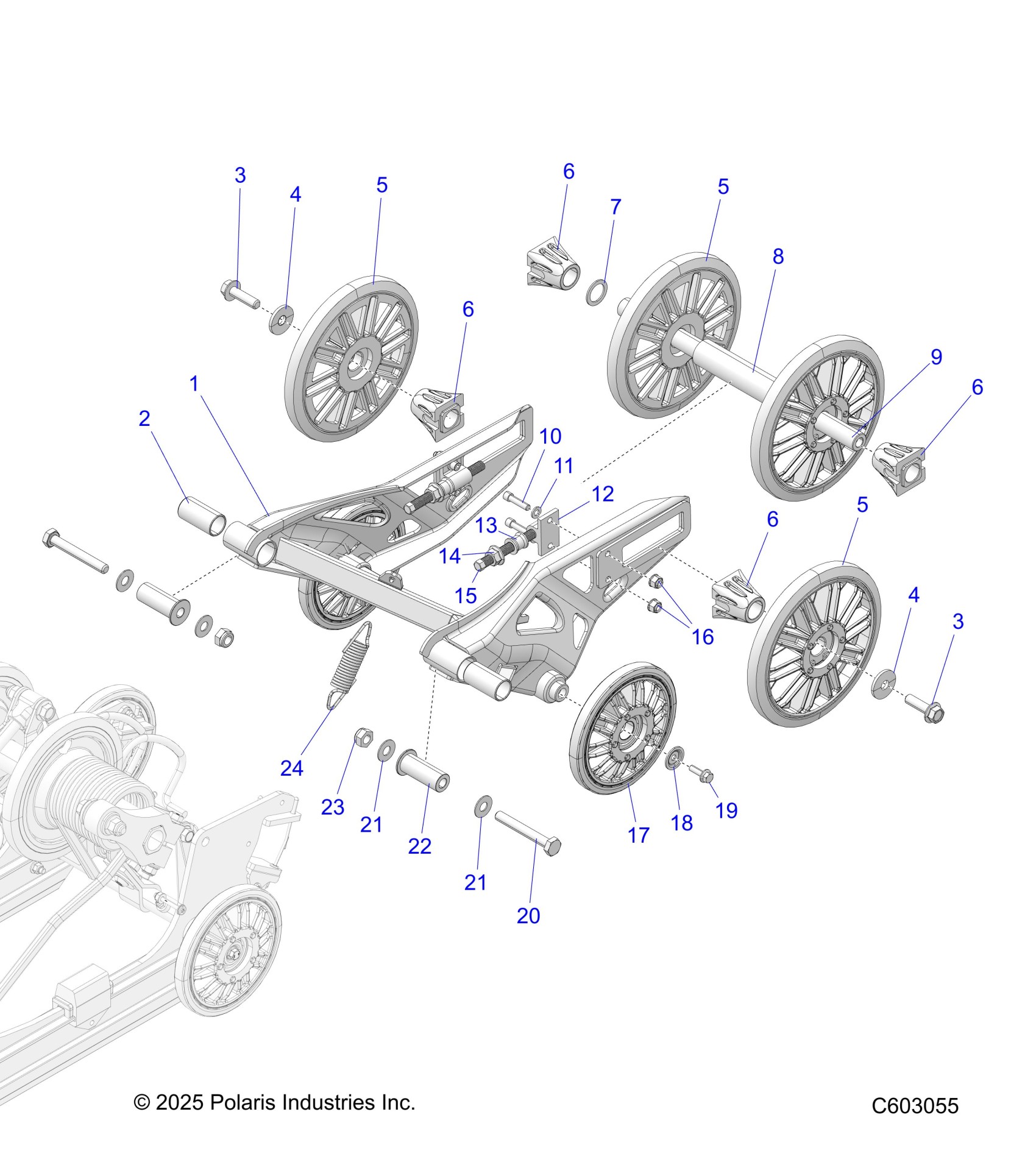

Polaris 650 VOYAGEUR SP AND XC 155 (R01) - S26TFF6RSL/TFP6RSL SUSPENSION, REAR EXTENSION - S26TFF6RSL/TFP6RSL (C603056) Diagram

#

Description
Price

1

ASM-FRAME ARTCLT NARROW [INCL. 2,10-12]

1544362

$199.99

2

BUSHING-PIVOT

5438875

$11.99

3

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

3

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

4

WASHER-SPRING.406X1.25X.125ZOD

7556490

$4.79

4

WASHER-SPRING.406X1.25X.125ZOD

7556490

$4.79

5

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

5

BEARING-.7874X1.6535X.4724,NTN [1 PER WHEEL]

3514384

$19.84

5

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

5

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

5

BEARING-.7874X1.6535X.4724,NTN [1 PER WHEEL]

3514384

$19.84

5

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

5

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

5

BEARING-.7874X1.6535X.4724,NTN [1 PER WHEEL]

3514384

$19.84

5

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

7

BUSHING-MACH,.800X1.125X.06-Y

7555918

$1.59

8

SPACER-IDLER, CENTER

5333283

$19.99

9

SHAFT-IDLER M10X1.5THDX336 LG

5136745

$38.71

10

SCR-1/4-20X1 SOC CP-Y

7515102

$4.79

11

WASHER-.5X.262X.06(16 GA)-Y

7555827

$3.99

12

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

13

SPACER-IDLER ADJ ALUM

5141837

$8.99

14

NUT-HXFL-M10X1.50 10 ZPC

7547017

$5.59

15

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

16

NUT-1/4-20 NYLOC FLANGED-Y

7542153

$1.59

17

ASM-WHEEL SPOKED 5.62

1590632

$38.39

17

BEARING-.7874X1.6535X.4724 NSK

3515142

$19.99

17

RING-RETAINING

7710444

$8.79

18

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

19

SCREW-HXFL-M6X1.0X20 8.8 ZOD NYL

7518613

$3.99

20

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$5.59

21

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

21

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

22

SHAFT-PIVOT

5137367

$28.32

23

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

24

SPRING-EXTENSION

7046314

$7.99
