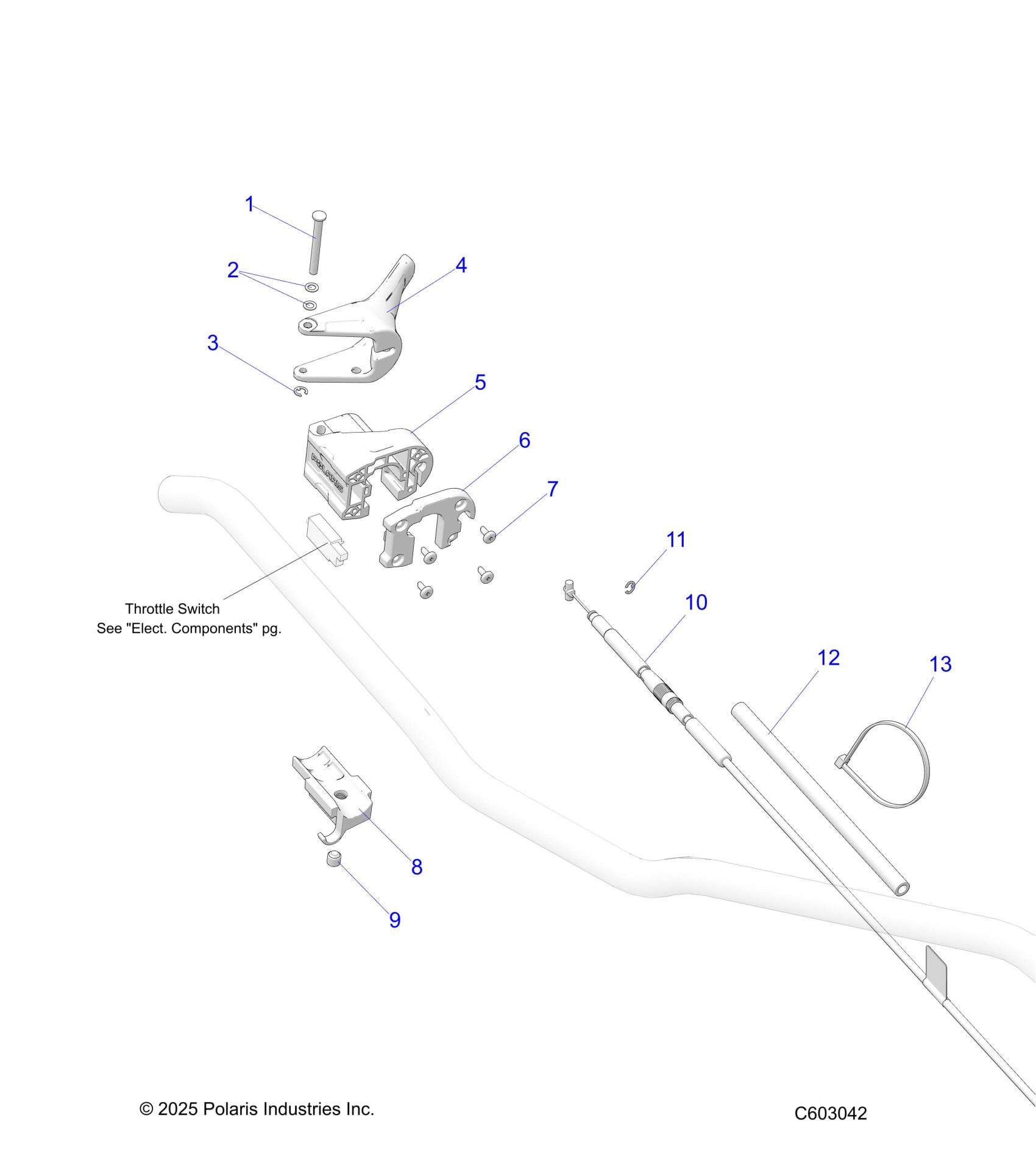

Polaris 650 VOYAGEUR 146 SP (R01) - S26TLF6RSL ENGINE, THROTTLE CONTROL ASM. - S26TLF6RSL (C603042) Diagram

#

Description
Price

1

PIN-RETAINING .186X1.780-AL

7661624

$12.79

2

WASHER

7555730

Unavailable

3

RING-RETAINING EXTERNAL

7710401

$3.99

4

ASM-LEVER HTR PWM 35.5MM

2010492

$114.99

5

BLOCK, THROTTLE UPPER

5450861

$40.46

6

COVER, THROTTLE

5450862

$11.60

7

SCR-6X3/8 PH TR HD GR5-Y

7511848

$3.99

8

BLOCK, THROTTLE LOWER

5450836

$24.27

9

SCREW, SET

7519755

$2.39

10

CABLE-THROTTLE

7082857

$60.70

11

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

12

TUBING, CONVOLUTED [SVC]

8360056-38

$7.27

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
