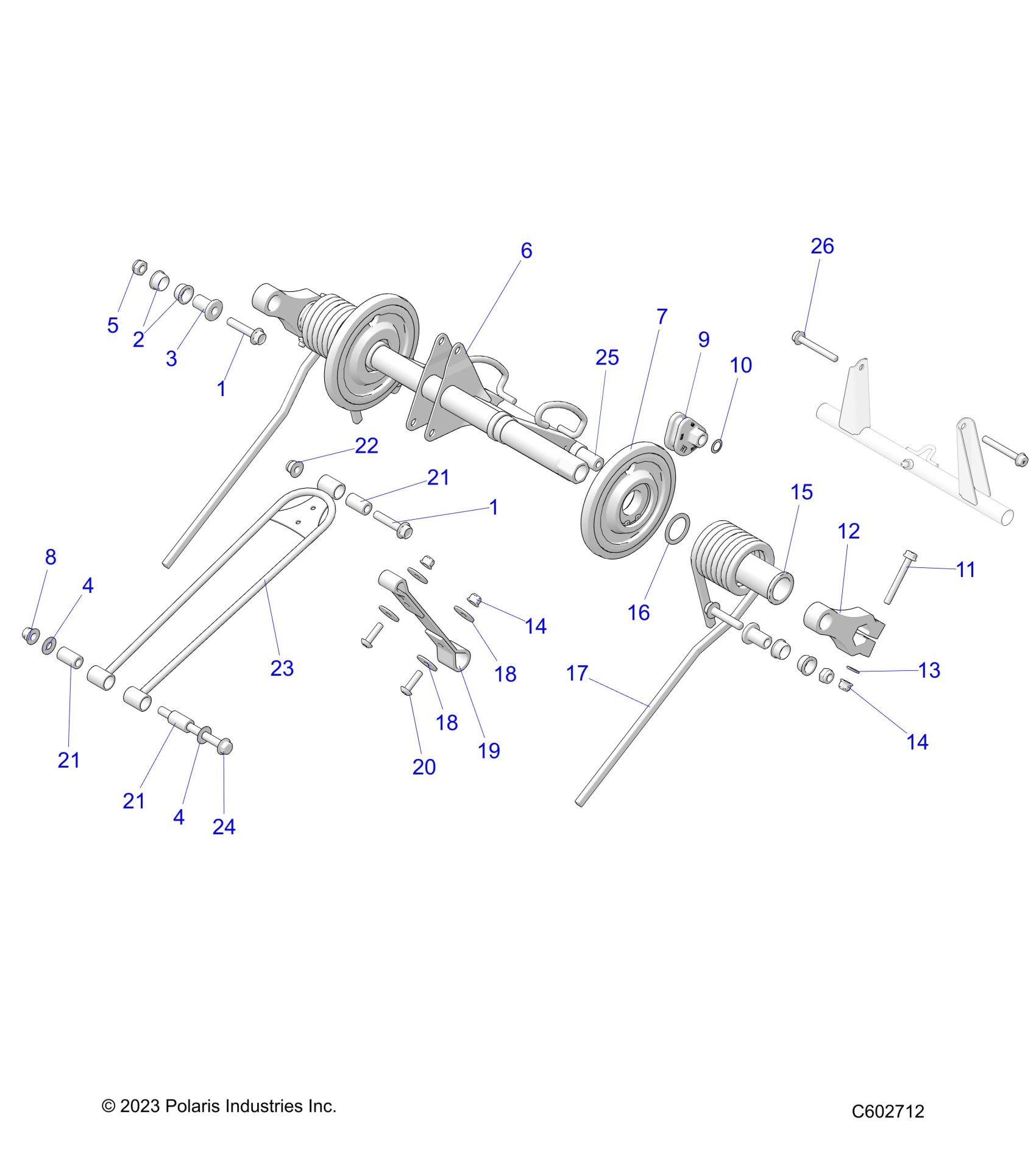

Polaris 650 TITAN ADVENTURE 155 (R03) - S25AJE6RSN/6RSP SUSPENSION, TORQUE ARM, REAR - S25AJE6RSN/6RSP (C602712) Diagram

#

Description
Price

1

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$6.39

1

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$6.39

2

BUSHING-CRANK

5438876

$7.99

3

SHAFT-RTA MOUNT

5141400

$13.75

4

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

4

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

5

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

6

WELD-RTA BLK

1545265-329

$259.99

7

ASM-WHEEL,PLAIN,6.38,6007

1590001

$72.84

7

BEARING [1 PER]

3514445

Unavailable

7

RING-RETAINING [1 PER]

7710486

Unavailable

8

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

ROLLER-SPRING,TRI-ADJ,LH

5434589

$32.37

9

ROLLER-SPRING,TRI-ADJ,RH

5434590

$28.32

10

CLIP-PUSH ON

7080394

$2.39

11

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

12

ASM-ARM 83.2 [INCL. BUSHING ITEM 2]

1543724

$48.56

13

WASHER-.344X.688X.063 FL-ZOD

7556524

$1.49

14

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

14

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

15

SLEEVE-TORSION SPRING

5434989

$3.99

16

WSHR-1.28X1.69X.075-Y

7555939

Unavailable

17

SPRING-TORS TRAP14.4/72 LH BLK

7044813-329

$133.56

17

SPRING-TORS TRAP14.4/72 RH BLK

7044814-329

$133.56

18

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

18

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

19

STRAP-LIMITER REAR

5416384

$24.27

20

SCR-M8X1.25X30 8.8 TR/TX ZOD

7518953

$1.59

21

BUSHING-M10X17.5X30

5137360

$3.99

21

BUSHING-M10X17.5X30

5137360

$3.99

21

BUSHING-M10X17.5X30

5137360

$3.99

22

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

23

ROD, SHOCK, WT, BLACK

1543727-329

$44.51

24

SCR-HXFL-M10X1.25X115 10.9 ZOD

7519365

$13.59

25

SHAFT-RTA LOWER

5339570

$20.22

26

SCR-HXFL-M8X1.25 10.9 ZFB P30

7528278

$1.59
