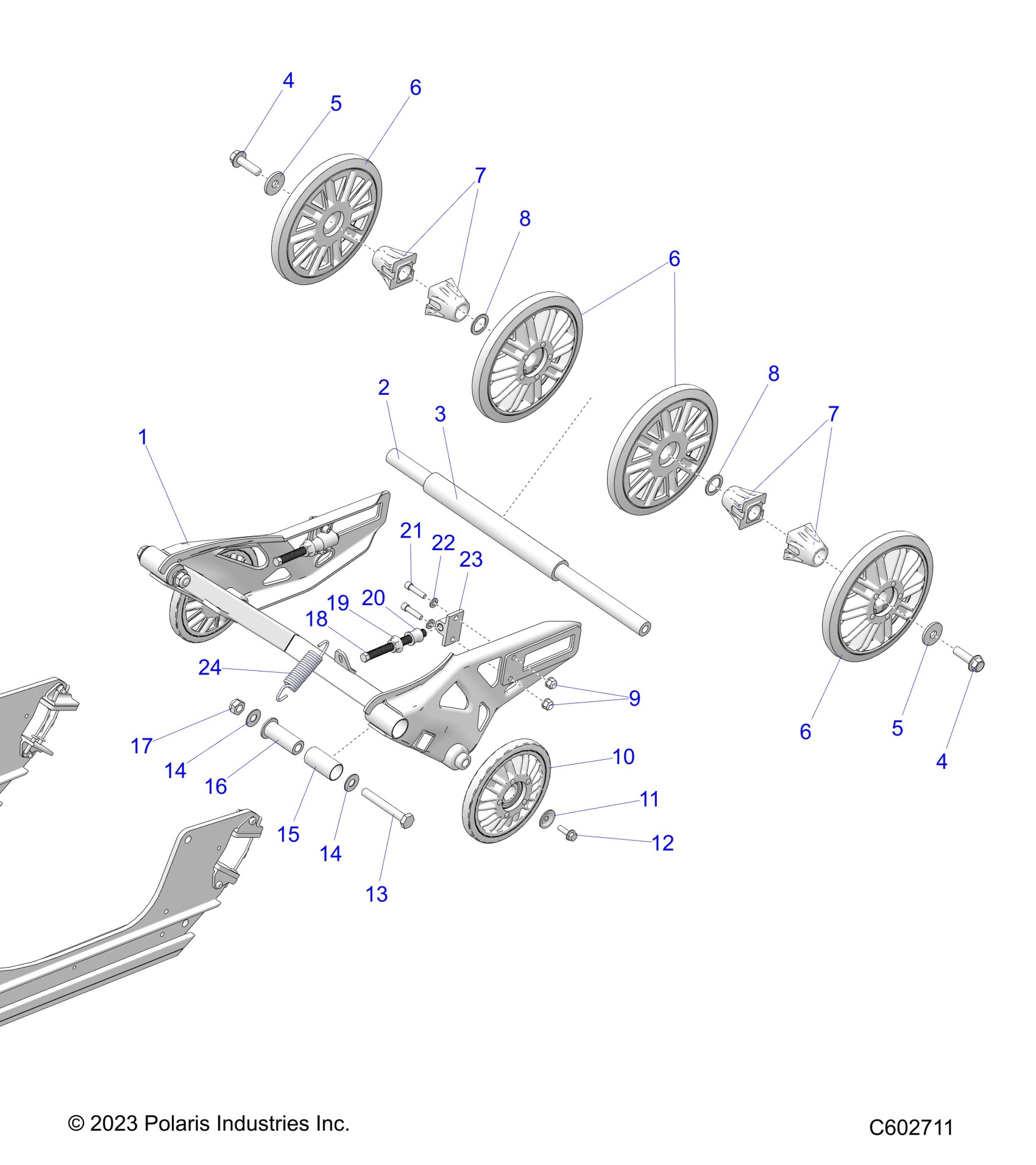

Polaris 650 TITAN ADVENTURE 155 (R03) - S25AJE6RSN/6RSP SUSPENSION, REAR EXTENSION - S25AJE6RSN/6RSP (C602711) Diagram

#

Description
Price

1

ASM-FRAME ARTCLT WIDE [INCL. 9,15,21-23]

1544995

$254.99

2

SHAFT-IDLER WT

5140503

$44.99

3

SPACER-IDLER 4WHL WT

5339576

$28.32

4

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

4

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

5

WASHER-SPRING.406X1.25X.125ZOD

7556490

$4.79

5

WASHER-SPRING.406X1.25X.125ZOD

7556490

$4.79

6

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

6

BEARING [1 PER WHEEL]

3514384

$19.84

6

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

6

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

6

BEARING [1 PER WHEEL]

3514384

$19.84

6

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

6

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

6

BEARING [1 PER WHEEL]

3514384

$19.84

6

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

7

SPACER-IDLER

5432535

$11.99

7

SPACER-IDLER

5432535

$11.99

8

BUSHING-MACH,.800X1.125X.06-Y

7555918

$1.59

8

BUSHING-MACH,.800X1.125X.06-Y

7555918

$1.59

9

NUT-1/4-20 NYLOC FLANGED-Y

7542153

$1.59

10

ASM-WHEEL SPOKED 5.62

1590632

$38.39

10

BEARING-.7874X1.6535X.4724 NSK

3515142

$19.99

10

RING-RETAINING

7710444

$8.79

11

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

12

SCREW-HXFL-M6X1.0X20 8.8 ZOD NYL

7518613

$3.99

13

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$5.59

14

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

14

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

15

BUSHING-PIVOT

5438875

$11.99

16

SHAFT-PIVOT

5137367

$28.32

17

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

18

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

19

NUT-HXFL-M10X1.50 10 ZPC

7547017

$5.59

20

SPACER-IDLER ADJ ALUM

5141837

$8.99

21

SCR-1/4-20X1 SOC CP-Y

7515102

$4.79

22

WASHER-.5X.262X.06(16 GA)-Y

7555827

$3.99

23

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

24

SPRING-EXTENSION

7044715

$20.22
