- 650 TITAN ADVENTURE 155 (R03) - S25AJE6RSN/6RSP
STEERING, LOWER - S25AJE6RSN/6RSP (C602716)

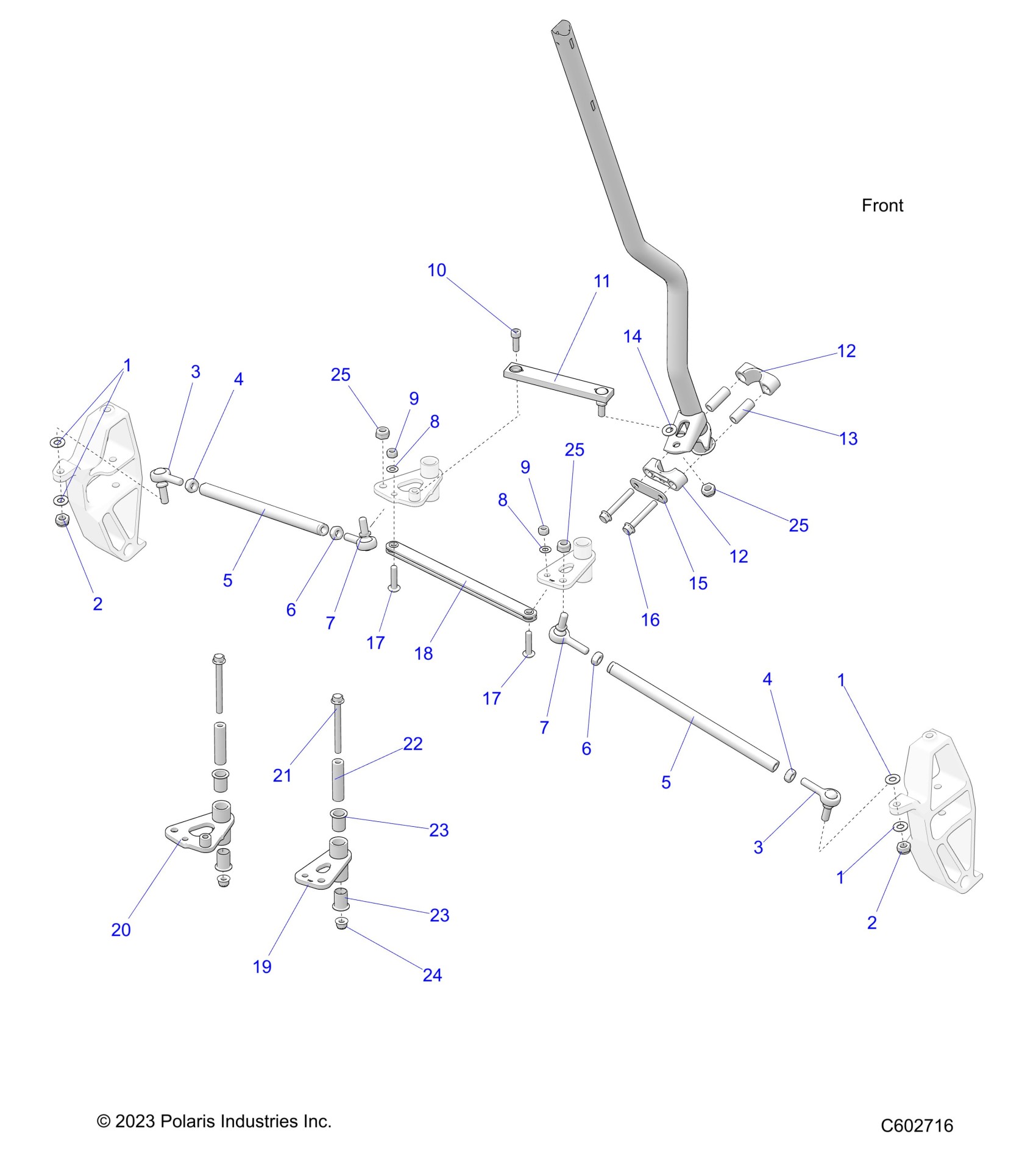

Polaris 650 TITAN ADVENTURE 155 (R03) - S25AJE6RSN/6RSP STEERING, LOWER - S25AJE6RSN/6RSP (C602716) Diagram
#
Description
Price
1
Washer
7555806
$1.49
1
Washer
7555806
$1.49
1
Washer
7555806
$1.49
2
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
2
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
3
ROD END-M10X26.5 75DEG RH
7061166
$52.60
3
ROD END-M10X26.5 75DEG RH
7061166
$52.60
4
NUT-M10X1.5 ZOD
7547430
$3.17
4
NUT-M10X1.5 ZOD
7547430
$3.17
5
ROD-TIE 296.29MM
5338122
$24.99
5
ROD-TIE 296.29MM
5338122
$24.99
6
NUT, LH
7547431
$3.19
6
NUT, LH
7547431
$3.19
7
ROD END-M10X23 75DEG LH
7061165
$52.60
7
ROD END-M10X23 75DEG LH
7061165
$52.60
8
WASHER-FL 8.4X16.0X.91 HRD ZOD
7557059
$3.19
8
WASHER-FL 8.4X16.0X.91 HRD ZOD
7557059
$3.19
9
NUT-M8X1.25C10,HX,NYL,DIN982,Z
7547405
$1.49
9
NUT-M8X1.25C10,HX,NYL,DIN982,Z
7547405
$1.49
10
SCR-M8X1.25X25 8.8 SH ZOD P30
7519010
$3.99
11
ASM-DRAGLINK FIXED
7061186
$97.13
12
BUSHING-STEERING POST LOWER
5458495
$4.79
12
BUSHING-STEERING POST LOWER
5458495
$4.79
13
SPACER-BUSHING
5137796
$3.99
14
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
15
STRAP-STEERING
5258308
$3.22
16
SCR-HXFL-M8X1.25X55 8.8 ZODP30
7519242
$4.79
17
SCR-TXTH-M8X1.25X35 8.8 ZOD
7519238
$6.39
17
SCR-TXTH-M8X1.25X35 8.8 ZOD
7519238
$6.39
18
ASM-RACK LINK
7061190
$71.99
19
ASM-IDLER [INCL. 23]
1824547
$135.54
20
ASM-PITMAN [INCL. 23]
1824761
$150.06
21
SCR-HXFL-M8X1.25X85 10.9 ZOD
7519972
$9.59
22
SHAFT-PIVOT IDLER
5138365
$24.27
23
BUSHING-SKI PIVOT
5438460
$15.99
23
BUSHING-SKI PIVOT
5438460
$15.99
24
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
25
NUT-HEX M10X1.5 8 ZOD NYL
7547442
$3.99
25
NUT-HEX M10X1.5 8 ZOD NYL
7547442
$3.99
25
NUT-HEX M10X1.5 8 ZOD NYL
7547442
$3.99
