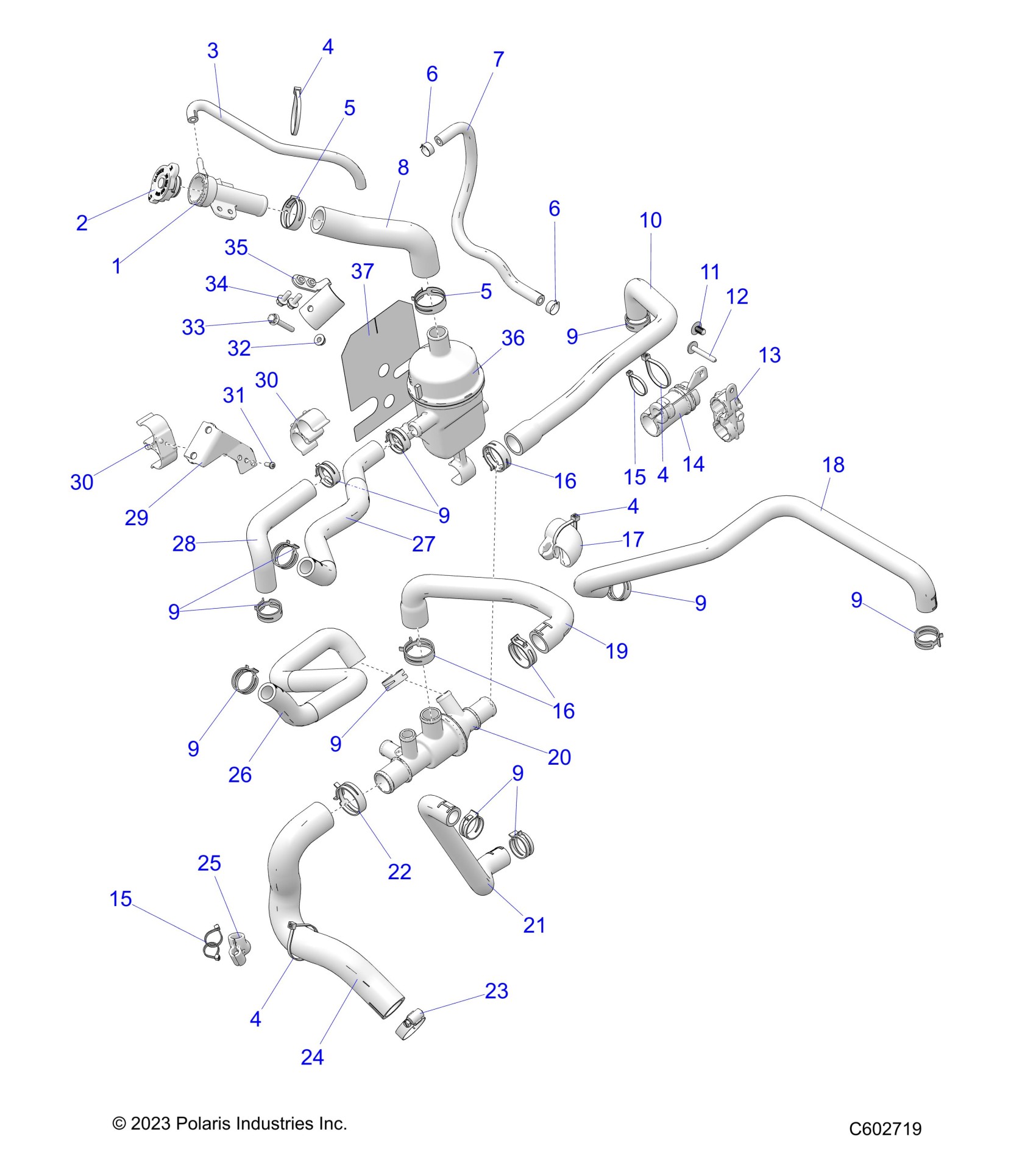

Polaris 650 TITAN ADVENTURE 155 (R03) - S25AJE6RSN/6RSP ENGINE, COOLING SYSTEM - S25AJE6RSN/6RSP (C602719) Diagram

#

Description
Price

1

FILLER-REMOTE,COOLANT,SM-RACE

5453578

$16.99

2

CAP-PRESSURE

1240300

$40.46

3

HOSE-FILLER NECK

5416515

$7.99

4

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

4

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

4

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

4

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

5

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

5

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

6

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

6

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

7

HOSE-THROTTLE BODY/BOTTLE

5418210

$12.94

8

HOSE-FILL

5418271

$24.27

9

SPRINGBAND-CLAMP 26/12

7081692

$4.03

9

SPRINGBAND-CLAMP 26/12

7081692

$4.03

9

SPRINGBAND-CLAMP 26/12

7081692

$4.03

9

SPRINGBAND-CLAMP 26/12

7081692

$4.03

9

SPRINGBAND-CLAMP 26/12

7081692

$4.03

9

SPRINGBAND-CLAMP 26/12

7081692

$4.03

9

SPRINGBAND-CLAMP 26/12

7081692

$4.03

9

SPRINGBAND-CLAMP 26/12

7081692

$4.03

10

HOSE-THERMOSTAT/TUNNEL

5418215

$40.46

11

CLIP-PLASTIC DART, NYLON

7670088

$1.59

12

SCR-TXTH-M6X1.0X50, 8.8, ZPB

7519001

$3.99

13

BRACKET-COOLANT TUBE

5451221

$8.79

14

SUPPORT-RUBBER

5418594

$24.27

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

16

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

17

HOSE-SUPPORT

5418358

$24.27

18

HOSE-TUNNEL IN/CLOSE OFF

5415995

$32.37

19

HOSE-ENGINE/BOTTLE

5418208

$40.46

20

WELD-THERMOSTAT HOUSING

1244734

$67.99

21

HOSE-CLOSEOFF/THERMOSTAT

5418213

$36.41

22

SPRINGBAND-CLAMP 38/12,BLK

7082025

$5.59

23

CLAMP-HOSE, 1.750-SS

7080560

$11.19

24

HOSE-THERMOSTAT/PUMP

5418605

$40.46

25

SUPPORT-FUEL LINE/OIL LINE

5416539

$7.27

26

HOSE-RADIATOR/THERMOSTAT

5418212

$44.51

27

HOSE-THERMOSTAT/RADIATOR

5418211

$32.37

28

HOSE-BOTTLE/THERMOSTAT

5418209

$32.37

29

BRKT-HOSE SUPPORT

5465311

$8.89

30

CLIP-HOSE DUAL

5459513

$11.99

30

CLIP-HOSE DUAL

5459513

$11.99

31

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.19

32

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

33

SCR-HXFL-M6X1.0X45 8.8 ZOD

7519257

$3.99

34

SCR-HXFL-M6X1.0X16 8.8 ZYL NYL

7519236

$3.19

35

ASM-BRKT FILLER NECK

1244777

$10.99

36

WELD-COOLANT BOTTLE

1244735

$43.56

37

FOIL-COOLANT BOTTLE

5815398

$8.89
