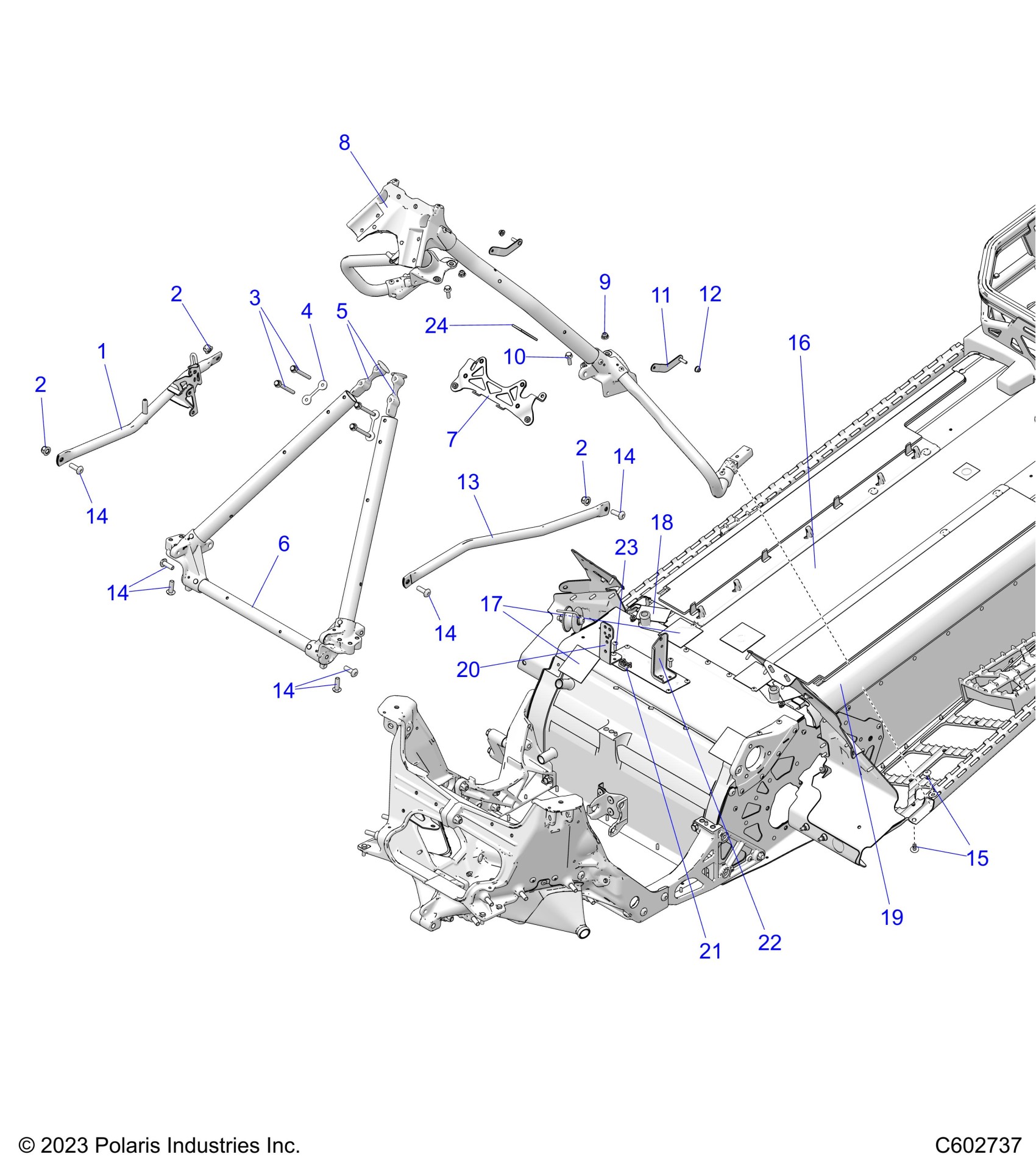

Polaris 650 TITAN ADVENTURE 155 (R03) - S25AJE6RSN/6RSP CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S25AJE6RSN/6RSP (C602737) Diagram

WELD-TUBE BRACE RH BLK

1028043-067

$114.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

SCR-HXFL-M6X1X60 10.9 ZOD P30

7520723

$4.99

SHIM-TUBE CAST 31.76 DIA [BULK SVC]

5633083

Unavailable

SPACER-TUBE CAST 27.00 DIA

5633122

$9.59

ASM-FRAME TUBLR FRNT W/WNCH MT

1022777

$314.99

ASM-REGULATOR MOUNT

1024479

$36.41

ASM-TUBE FRAME REAR

1028046

$389.99

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

SCREW-M6X1.0X20-HX/FL-Y/D

7516822

$2.39

ASM-STUD PLATE M5 RH

1023173

$24.99

ASM-STUD PLATE M5 LH

1023172

$24.99

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

TUBE-BRACE LH BLK

5346103-067

$69.99

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

SCR-TXTH-M6X1.0X15 8.8 P80 ZOD

7520147

$3.99

ASM-CHASSIS 155 WIDE 2S BLK [INCL. BULKHEAD]

1027754-067

$2,059.99

ASM-TUNNEL 155 WIDE BLK

1027755-067

$2,289.99

PAD, 2.5"X2.5"

5814187

$4.03

PAD-40X63.5

5814353

$9.70

COVER-TUNNEL LH

5459752

$104.99

COVER-TUNNEL RH

5459753

$104.99

BRKT-ELECTRICAL

5274078

$34.99

MOUNT-CABLE TIE

7082323

$8.08

RIVET-POP 3/16(.126-.250)-ST-B

7661973

$1.49

BRKT-CHASSIS COOLING

5264163

$11.32

RIVET-3/16-.090-.290

7661637

$1.49

PAD-RUBBER 1.0 X 2.50 X.13

5813729

$28.32
