Description

Price

13101

GEAR-ASSY

13101-3705

Unavailable

21039

BRUSH,CARBON

21039-3702

Unavailable

21040

SPRING-BRUSH

21040-1003

$9.41

21163

STARTER-ELECTRIC

21163-3712

$600.85

27010

SWITCH,STARTER RELAY

27010-3705

$212.87

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT

92002-3744

$36.81

92015

NUT,6MM

92015-3710

$4.18

92022

WASHER,9.1X18X0.2

21025-011

$6.22

92022A

WASHER,9.1X18X0.8

92022-1132

$6.22

92022B

WASHER

92022-3035

$3.52

92022C

WASHER

92022-3036

Unavailable

92022D

WASHER,6MM

92022-3711

$4.18

92022E

WASHER,SPRING,5MM

92022-3712

Unavailable

92022F

WASHER

92022-553

$1.24

92055

RING-O,64MM

92055-1086

$10.00

92055A

RING-O

92055-1276

$9.91

92055B

RING-O,4.5X2.0

92055-1370

$4.69

92071

GROMMET

92071-3004

$3.99

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER PLAIN 10MM

410B1000

$0.58

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

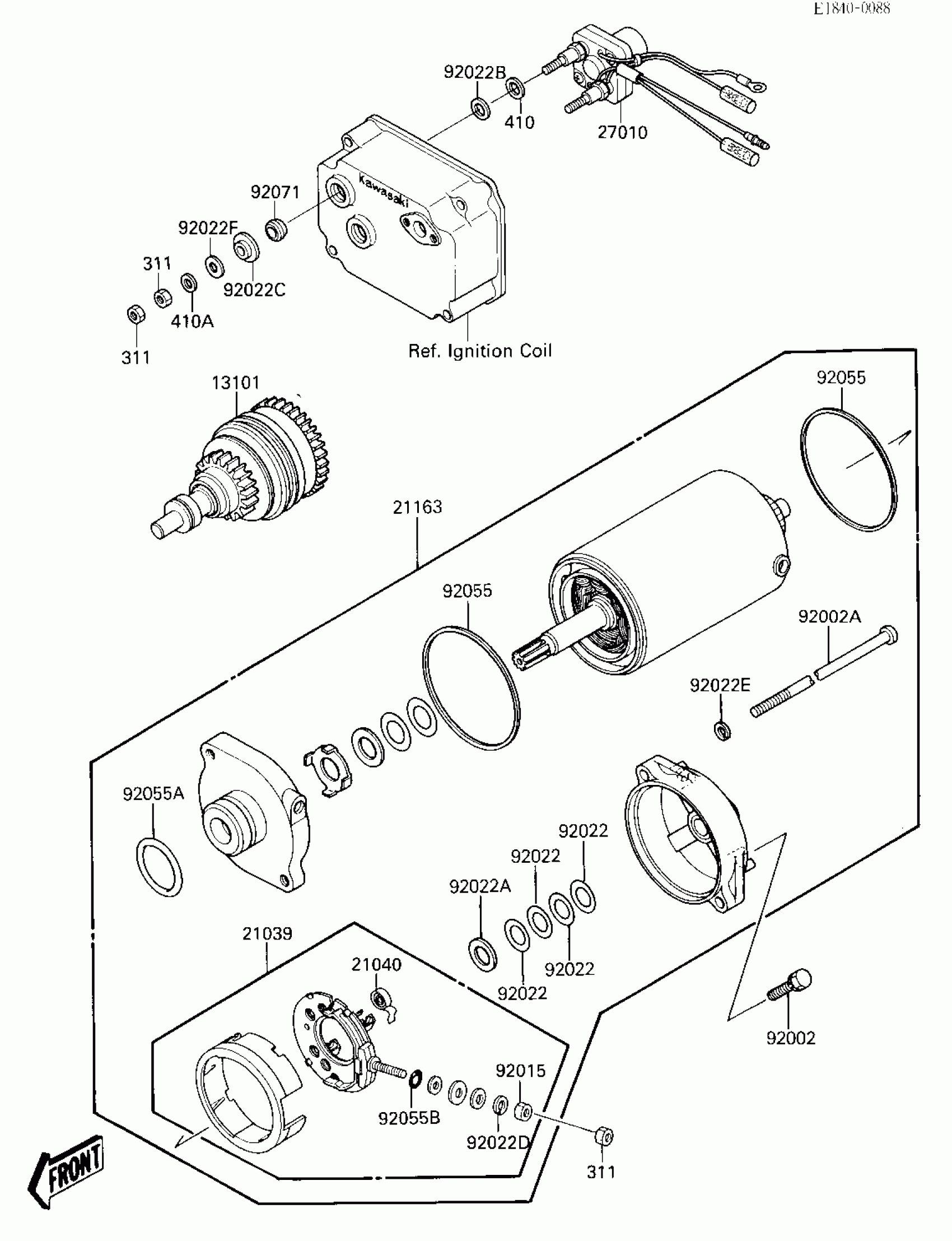

Kawasaki 650 SX STARTER MOTOR Diagram

GEAR-ASSY

BRUSH,CARBON

SPRING-BRUSH

STARTER-ELECTRIC

SWITCH,STARTER RELAY

BOLT,6X25

BOLT

NUT,6MM

WASHER,9.1X18X0.2

WASHER,9.1X18X0.8

WASHER

WASHER

WASHER,6MM

WASHER,SPRING,5MM

WASHER

RING-O,64MM

RING-O

RING-O,4.5X2.0

GROMMET

NUT-HEX,6MM

WASHER PLAIN 10MM

WASHER-PLAIN-SMALL,6MM
