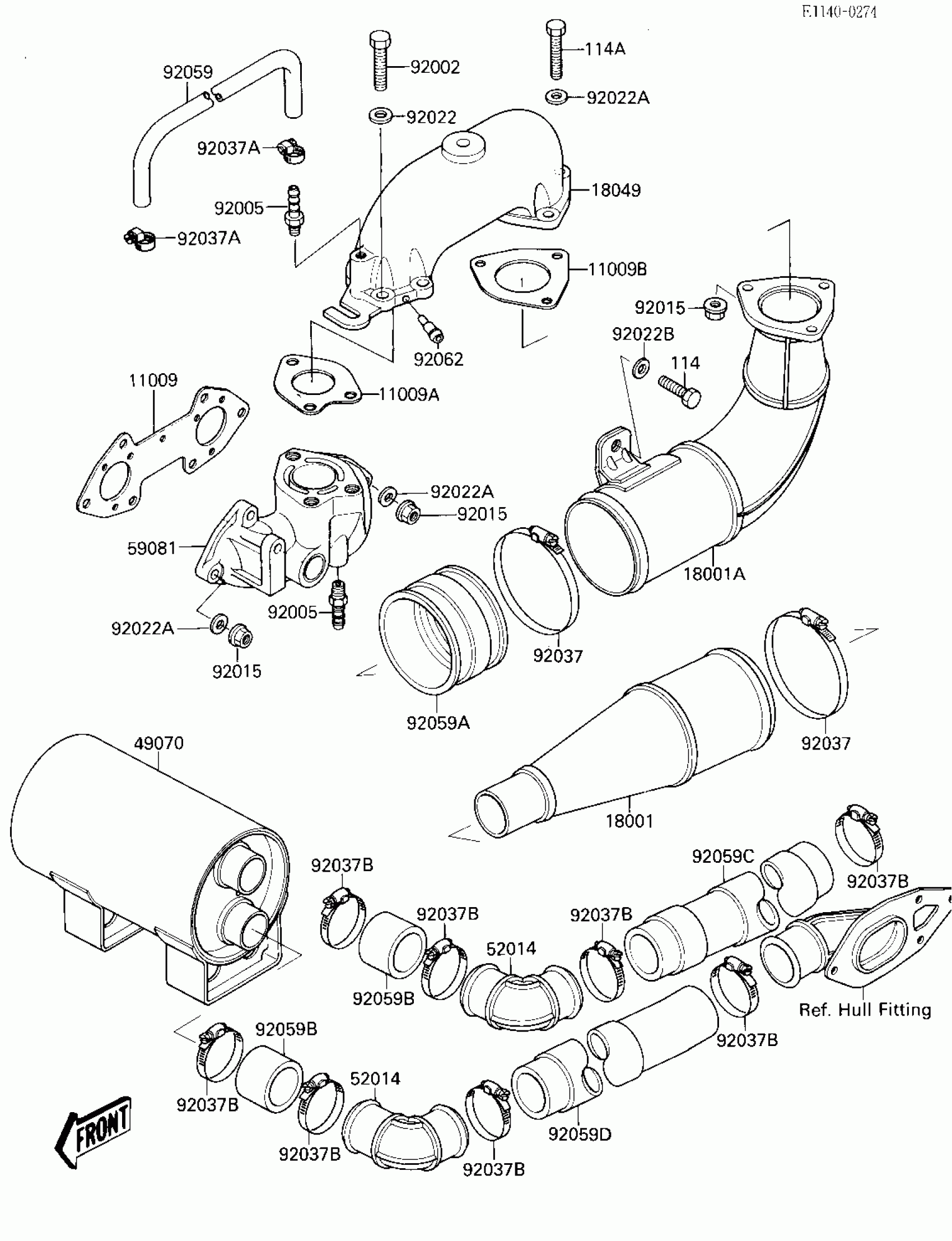

Kawasaki 650 SX MUFFLER (KAW10001B787~KAW15906E787) Diagram

Description

Price

11009

GASKET,EXHAUST MANIFOLD

11009-3722

Unavailable

11009A

GASKET,EXHAUST PIPE

11060-3725

$25.06

11009B

GASKET,MUFFLER

11009-3724

Unavailable

18001

MUFFLER,BODY

18001-3716

$157.38

18001A

MUFFLER,TUNED

18001-3718

$313.56

18049

PIPE-EXHAUST

18049-3710

$217.04

49070

MUFFLER-COMP

49070-3710

$155.66

52014

ELBOW

52014-3702

Unavailable

59081

MANIFOLD-EXHAUST

59081-3705

Unavailable

92002

BOLT

92002-3746

$6.72

92005

FITTING,HOSE

92005-3001

$10.88

92015

NUT,FLANGED,8MM

92015-3709

$5.05

92022

WASHER,10.2X20X1.5

92022-3742

$4.18

92022A

WASHER,8.2X18X1.5

92022-1964

$4.18

92022B

WASHER,8.4X23X2.5

92022-3744

$4.18

92037

CLAMP,MAX120.7MM

92037-3733

$13.94

92037A

CLAMP

92037-504

$13.67

92037B

CLAMP

92037-509

$5.58

92059

TUBE,9X16X200

92059-3748

Unavailable

92059A

TUBE,MUFFLER CONNECTING

92059-3767

$54.26

92059B

TUBE

92059-3807

Unavailable

92059C

TUBE

92059-3808

Unavailable

92059D

TUBE

92059-3809

Unavailable

92062

NOZZLE

92062-3705

$8.44

114

BOLT-SMALL

114R0825

$2.66

114A

BOLT-SMALL,8X35

114R0835

$4.32
