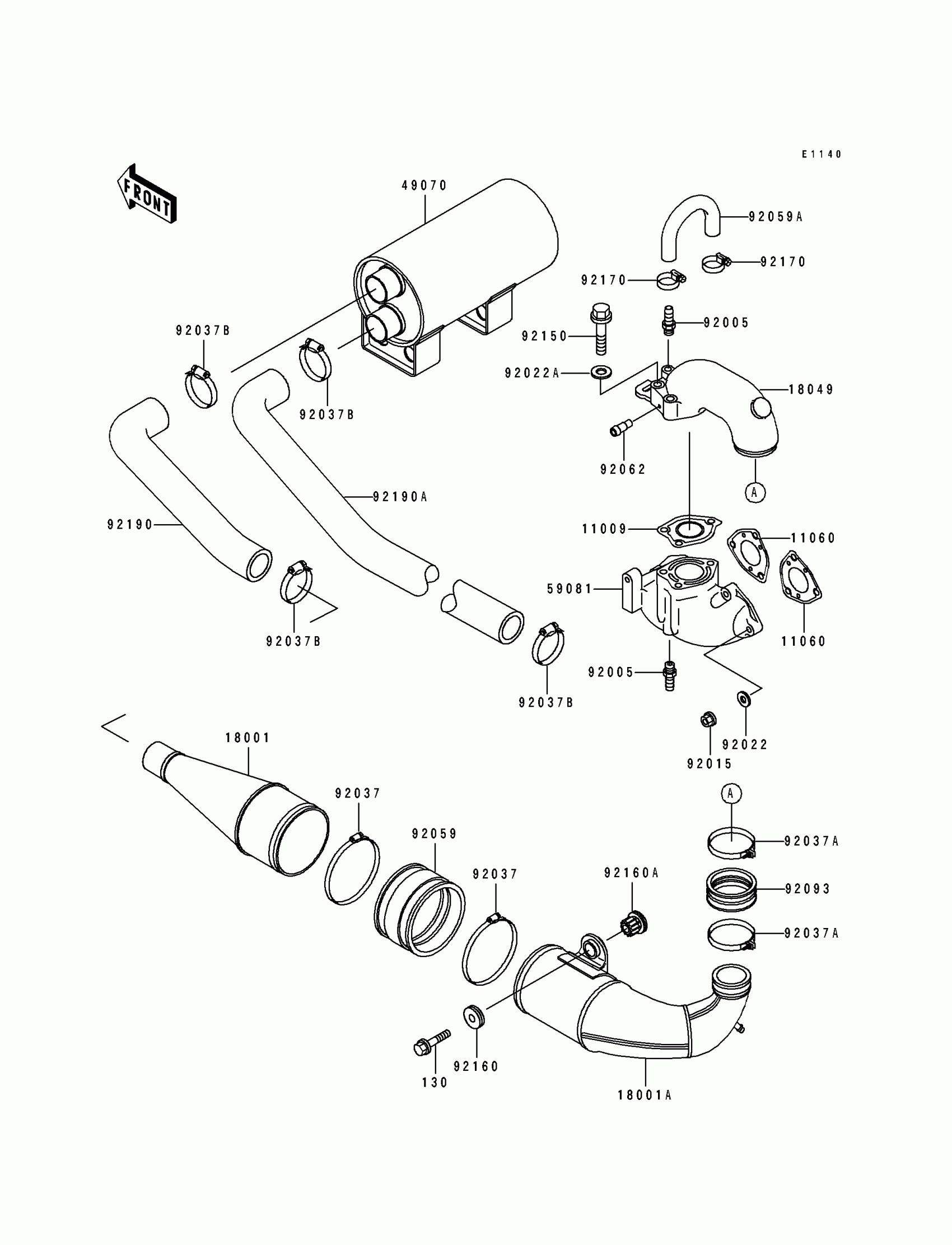

Kawasaki 650 SX Muffler Diagram
#
Description
Price
11009
GASKET,EXHAUST PIPE
11009-3752
$26.93
11060
GASKET,EXHAUST PIPE
11060-3721
Unavailable
18001
MUFFLER,BODY
18001-3716
$157.38
18001A
MUFFLER
18001-3720
$413.60
18049
PIPE-EXHAUST
18049-3724
$196.96
49070
MUFFLER-COMP
49070-3710
$155.66
59081
MANIFOLD-EXHAUST
59081-3706
Unavailable
92005
FITTING,HOSE
92005-3001
$10.88
92015
NUT,CAP,8MM
92015-1371
$5.00
92022
WASHER,8.2X18X1.5
92022-1964
$4.18
92022A
WASHER,10.2X20X1.5
92022-3742
$4.18
92037
CLAMP,MAX120.7MM
92037-3733
$13.94
92037A
CLAMP,68MM
92037-3740
$14.63
92037B
CLAMP
92037-509
$5.58
92059
TUBE,MUFFLER CONNECTING
92059-3767
$54.26
92059A
TUBE
92059-3816
Unavailable
92062
NOZZLE
92062-3705
$8.44
92093
SEAL
92093-3705
Unavailable
92150
BOLT,10X50
92150-3723
$13.08
92160
DAMPER,MUFFLER
92160-3701
$9.83
92160A
DAMPER,MUFFLER MOUNT
92160-3702
$9.83
92170
CLAMP
92170-3718
$13.67
92190
TUBE,MUFFLER-WATER MUFFLER
92190-3731
Unavailable
92190A
TUBE,WATER MUFFLER-HULL
92190-3732
$225.30
130
BOLT-FLANGED
130Z0845
$3.71
