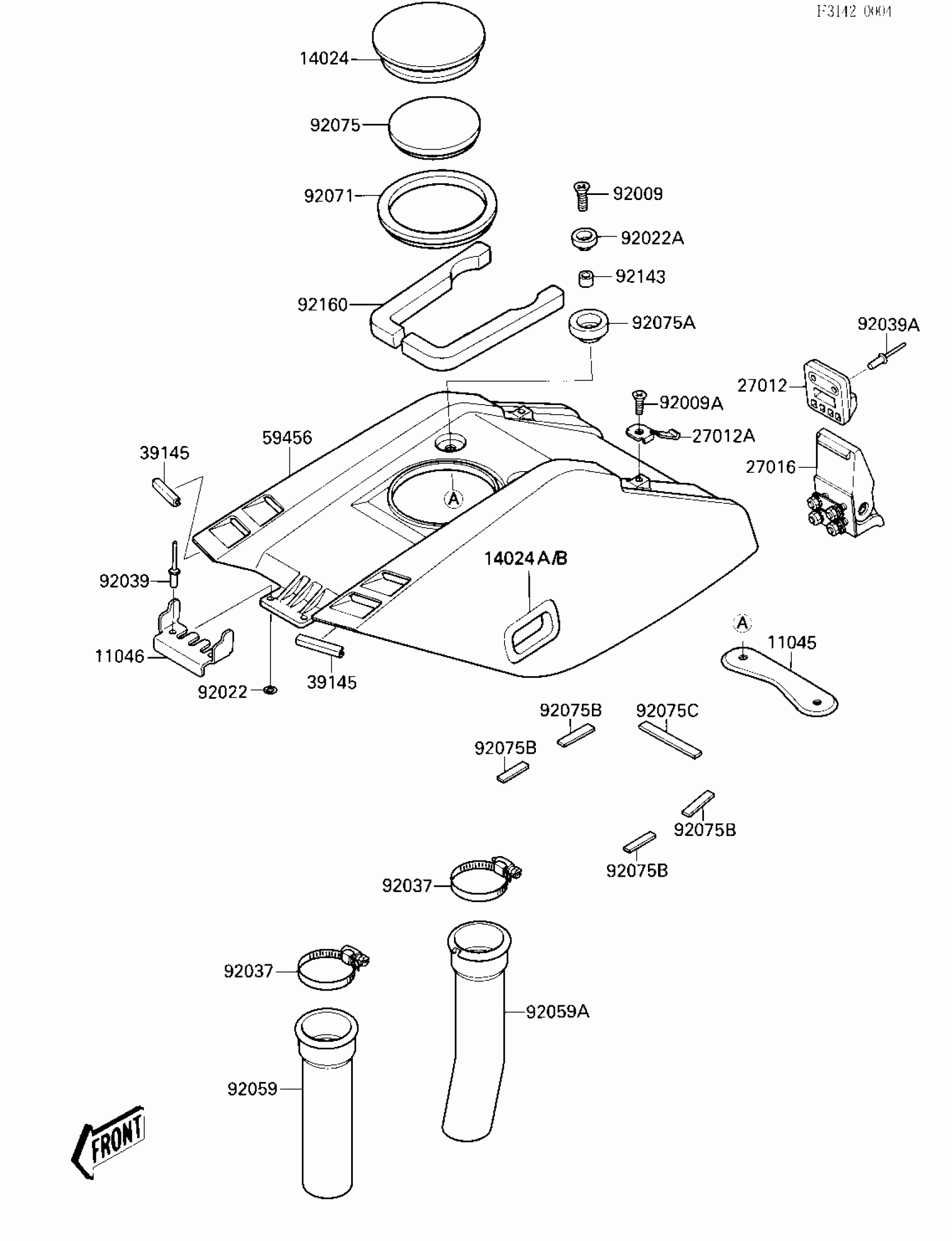

Kawasaki 650 SX ENGINE HOOD Diagram
#
Description
Price
11045
BRACKET
11046-3748
Unavailable
11046
BRACKET
11046-3703
Unavailable
14024
COVER
14024-3748
$7.76
14024A
COVER,LH,J.WHITE
14024-3771-8U
Unavailable
14024B
COVER,RH,J.WHITE
14024-3772-8U
Unavailable
27012
HOOK
27012-3711
$37.56
27012A
HOOK,FOR PAD
27012-3716
Unavailable
27016
LOCK-ASSY
27016-3703
$166.56
39145
TRIM-SEAL
39145-3708
$2.50
59456
HOOD-COMP-ENGINE,J.WHITE
59456-3714-8C
Unavailable
92009
SCREW,6X25
92009-3717
$4.81
92009A
SCREW,TAPPING
92011-561
Unavailable
92022
WASHER,5X16X1.5
92022-3041
$4.18
92022A
WASHER
92022-3732
Unavailable
92037
CLAMP
92037-3738
$6.89
92039
RIVET
92039-3002
$5.82
92039A
RIVET
92039-3722
Unavailable
92059
TUBE
92059-3803
Unavailable
92059A
TUBE
92059-3815
$41.99
92071
GROMMET
92071-3742
$9.94
92075
DAMPER
92075-3737
$24.84
92075A
DAMPER
92160-3709
Unavailable
92075B
DAMPER,DUCT,RR,LH
92075-3744
$4.75
92075C
DAMPER,DUCT,REAR
92075-3746
$10.56
92143
COLLAR,7.1X10.5X6
92027-3702
$7.65
92160
DAMPER,ENGINE HOOD
92160-3703
Unavailable
