- 650 SWITCHBACK XC 146 ALL OPTIONS (R02) - S25TLP6RS
SUSPENSION, TORQUE ARM, REAR - S25TLP6RS (C601896)

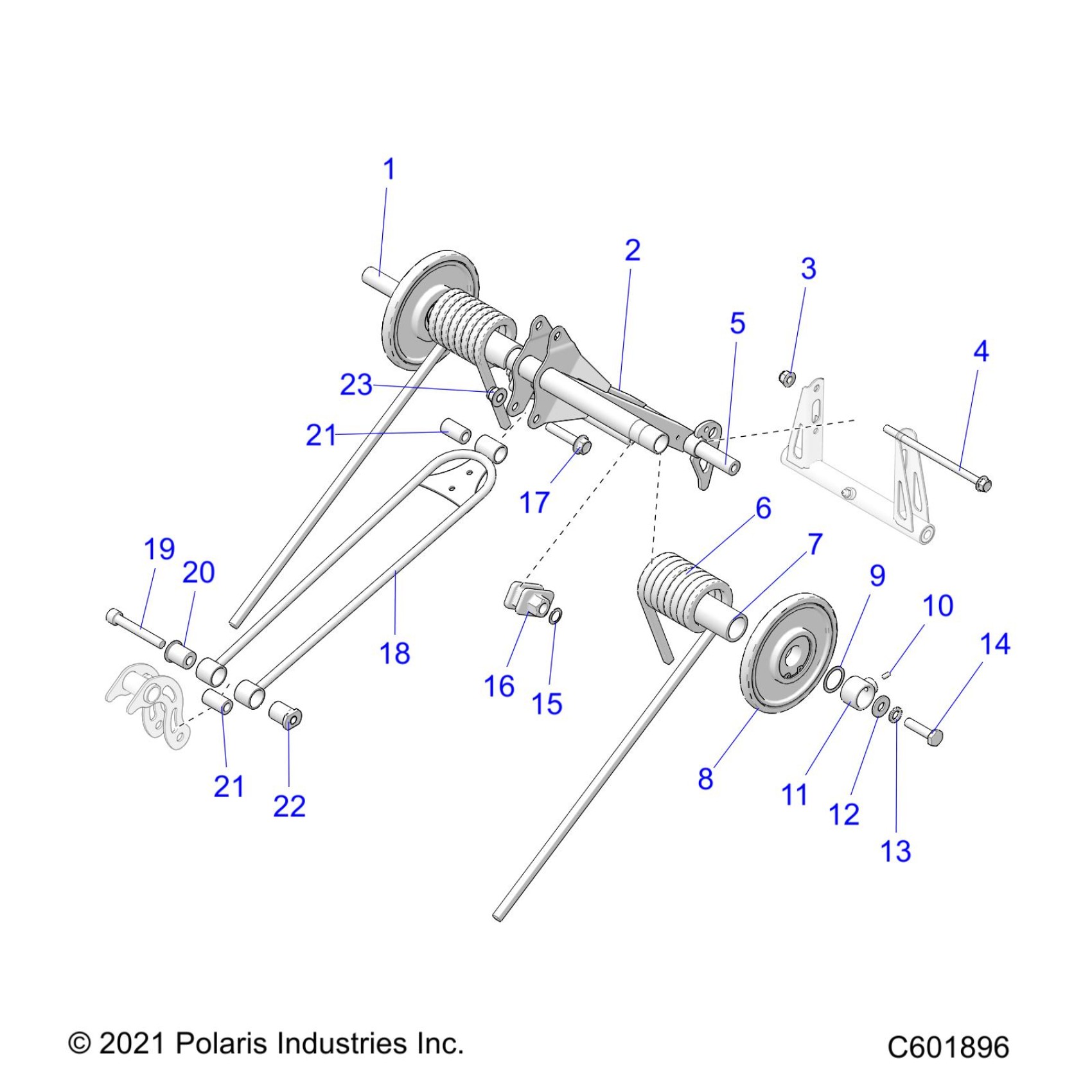

Polaris 650 SWITCHBACK XC 146 ALL OPTIONS (R02) - S25TLP6RS SUSPENSION, TORQUE ARM, REAR - S25TLP6RS (C601896) Diagram
#
Description
Price
1
SHAFT
5137223
$69.99
2
FITTING-LUBRICATION 1/4-28
7080424
$4.79
2
WELD-RTA ECOAT
1543511-329
$264.99
3
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
4
SCR-HXFL-M8X1.25X150 8.8 ZOD
7519200
$9.59
5
SHAFT
5337198
$28.32
6
SPRING-TORSION,.347SQ/77�LHBLK [OPT]
7041627-067
$135.54
6
SPRG-TORS,.375SQ/77,LH,ECOAT [OPT]
7041942-329
$117.37
6
SPRING-TORSION,.347/77�,RH,BLK [OPT]
7041628-067
$135.54
6
SPRG-TORS,.375SQ/77,RH,ECOAT [OPT]
7041943-329
$113.32
6
SPRG-TORSION.359SQ/77LH,ECOAT [STD]
7041629-329
$113.32
6
SPRG-TORSION.359SQ/77RH,ECOAT [STD]
7041630-329
$113.32
7
SLEEVE-TORSION SPRING RMK
5434337
$7.99
8
RET.RING-TRUARC
7718407
$4.79
8
BEARING
3514303
$11.99
8
ASM-WHL,CARRIER,LWT,PLAIN,5.62
1590539
$54.99
9
WASHER, SPRING
7571605
$6.39
10
SCR-10-24-3/8 SOC/SET-Y
7518262
$3.99
11
SPACER
5135424
$19.99
12
WSHR-M10.5X25X2.4 ZPC
7556559
$3.19
13
WSHR-M10,SPRING LOC ZPC
7556558
$2.39
14
SCR-HH,M10X40 10.9 ZPC P80
7519223
$3.99
15
CLIP-PUSH ON
7080394
$2.39
16
ROLLER-SPRING,ADJ,SQUARE,X10
5432983
$9.70
17
SCR-M10X1.5X50 8.8 HX/FL ZOD
7518971
$6.39
18
WELD-SHOCK ROD ECOAT
1543561-329
$102.21
19
SCR-SH-M10X1.5X70 12.9 ZOD P80
7520368
$6.39
20
BUSHING, RTS
5140273
$11.99
21
BUSHING
5137360
$3.99
21
BUSHING
5137360
$3.99
22
BUSHING, RTS, THREADED
5140274
$11.99
23
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
