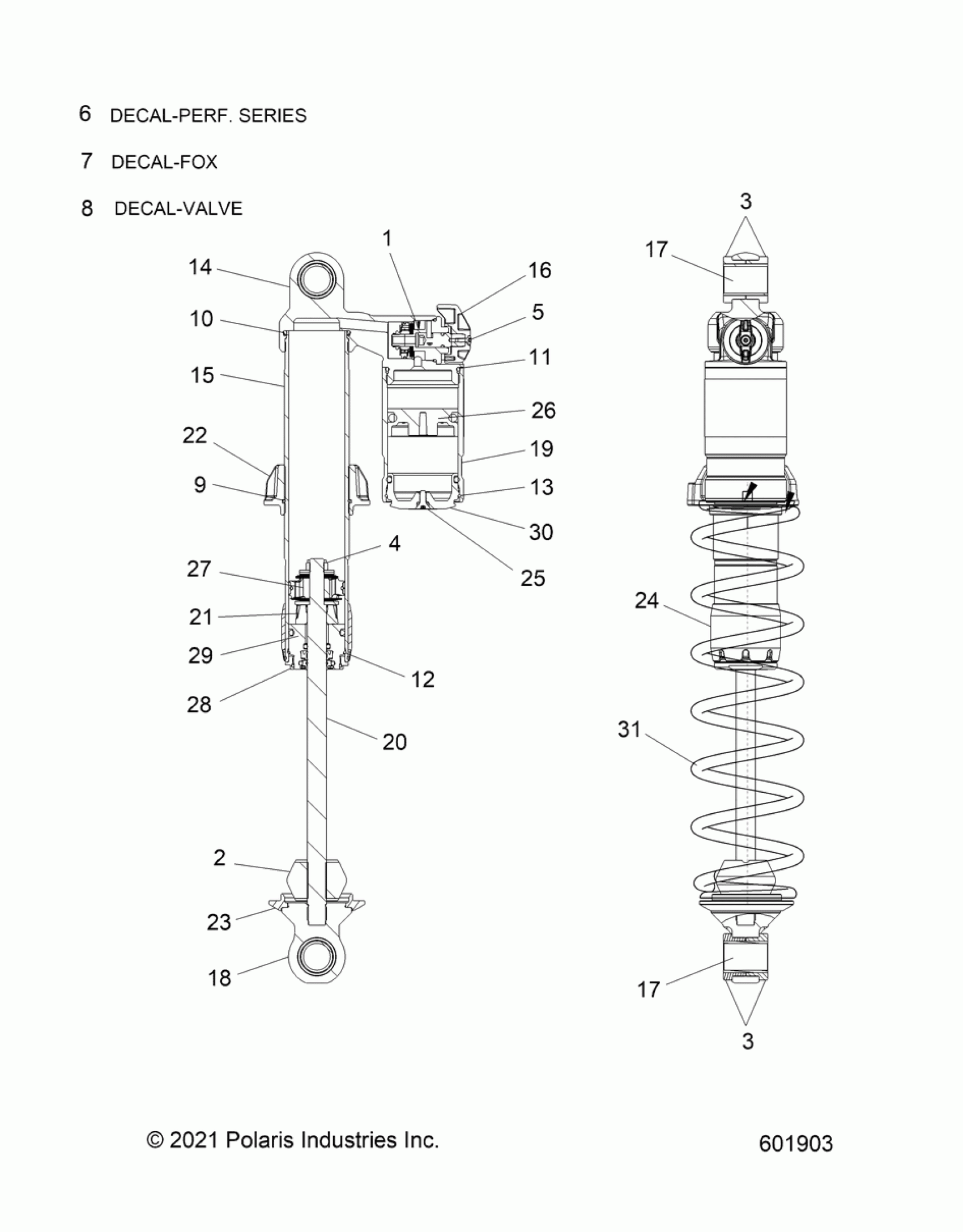

Polaris 650 SWITCHBACK XC 146 ALL OPTIONS (R02) - S25TLP6RS SUSPENSION, SHOCK, IFS - S25TLP6RS (601903) Diagram

#

Description
Price

-

SHOCK-IFS FOX PIGGYBACK INCL. 1-30

7045865

$774.99

1

ASM-DMPNG ADJ,038 CART,.5SHFT

1504506

$214.99

2

BUMPER-.498x1.05L

1500902

$32.37

3

BUSHING- .35x.82x.58

1500103

$8.08

3

BUSHING- .35x.82x.58

1500103

$8.08

4

NUT, LOCK, 3/8-24

1500016

$12.79

5

SCREW, #4, SS PAN

1501011

$13.59

6

DECAL-PEFORMANCE SERIES,SLVR

1504504

$11.99

7

DECAL-RESERVOIR

1501366

$39.99

8

DECAL-3 POS. BASE VALVE

1501367

$31.99

9

O-RING

1500997

$27.99

10

O-RING,.103W-1.549ID

1500108

$10.99

11

O-RING,.103W-1.737ID

1500623

$6.39

12

RING-RETAINING, WIRE 1.455

1504494

$4.03

13

RING-RETAINING, WIRE 2.050

1501015

$9.59

14

BODY CAP, PIGGYBACK

1501117

$144.99

15

BODY, .498x8.60TLG

1501118

$130.70

16

KNOB, DAMP. ADJ, BLK

1501108

$20.22

17

SLEEVE

1500852

$49.99

17

SLEEVE

1500852

$49.99

18

EYELET-SHAFT

1501370

$104.99

19

RESERVOIR, BLK

1501109

$111.33

20

Shaft

-------

Unavailable

21

SPACER, SHAFT

1501121

$15.99

22

RING-SPRING PRELOAD

1501236

$32.37

23

RETAINER-SPRING, SLOTTED

1501245

$34.99

24

GUIDE, SPRING

1500930

$39.99

25

SCR ASM-10-24X.375,FLT HD

1504505

$59.99

26

ASM-PISTON, FLOATING

1504496

$54.99

27

ASM-PISTON

-------

Unavailable

28

ASM., BRNG. CAP, W/O-RING

1501113

$49.99

29

ASM., BEARING, FIST

1501114

$139.99

30

ASM-END CAP, RESERVOIR

1504500

$124.99

31

SPRING, COMPRESSION, 10.25 100#, BLACK NOT SHOWN

7043460-458

$76.89
