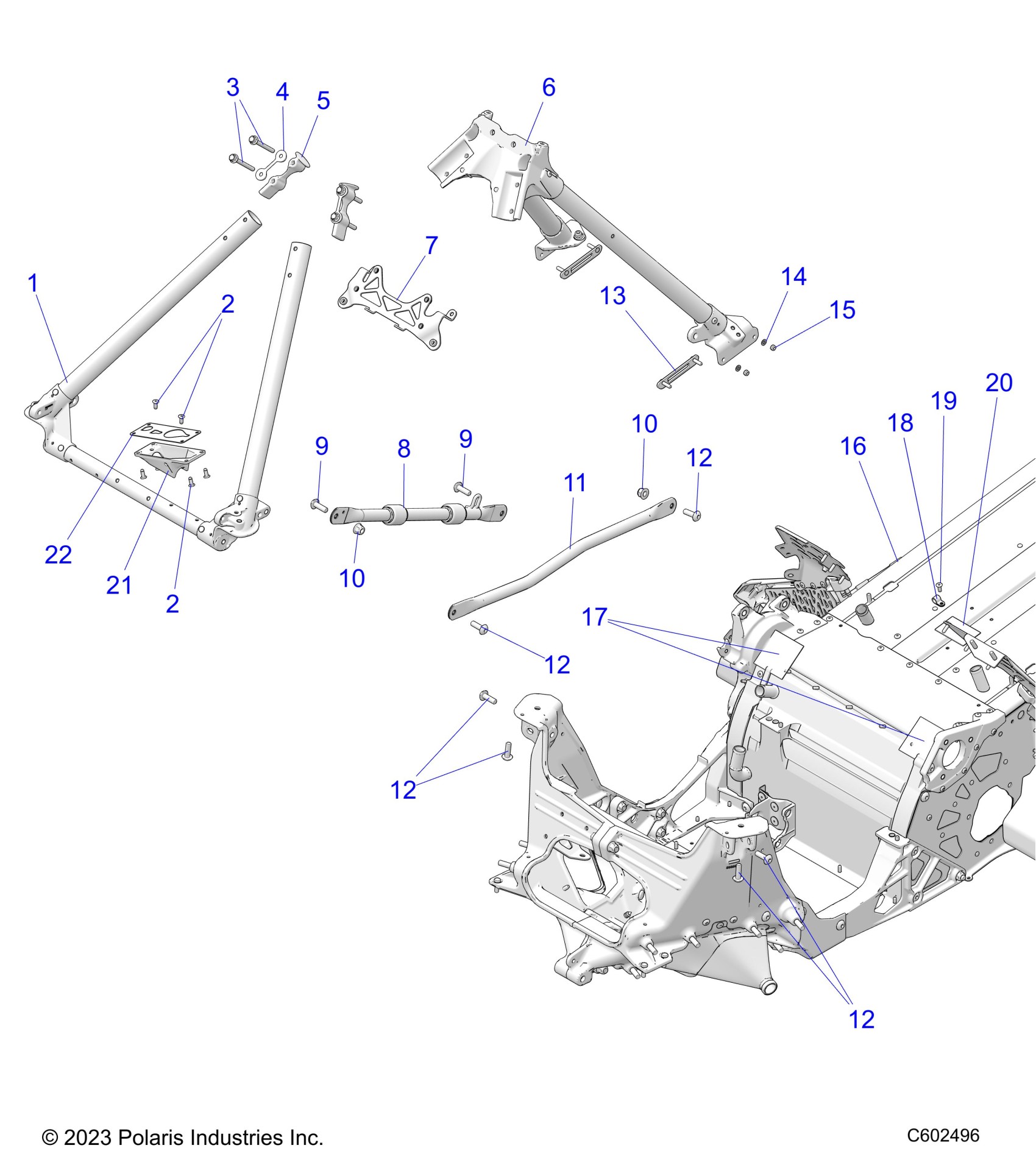

Polaris 650 SWITCHBACK XC 146 ALL OPTIONS (R02) - S25TLP6RS CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S25TLP6RS (C602496) Diagram

#

Description
Price

1

ASM-FRAME TUBULAR FRONT ALUM

1024164

$149.99

2

RIVET-POP 3/16(.126-.250)-ST-B

7661973

$1.49

2

RIVET-POP 3/16(.126-.250)-ST-B

7661973

$1.49

3

SCR-HXFL-M6X1X60 10.9 ZOD P30

7520723

$4.99

4

SHIM-TUBE CAST 31.76 DIA

5633083

$6.99

5

SPACER-TUBE CAST 27.00 DIA

5633122

$9.59

6

ASM-TUBE FRAME REAR

1025156

$784.99

7

ASM-REGULATOR MOUNT

1024479

$36.41

8

WELD-CROSS BRACE RH

1027787

$74.99

9

SCREW-TXTR

7518906

$3.19

9

SCREW-TXTR

7518906

$3.19

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

TUBE-BRACE LH BLK

5337391-329

$34.99

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

13

ASM-STUD PLATE 5MM

1023672

$12.79

14

WSHR-FL,5.5X1.0,(10)

7556071

$4.79

15

NUT-M5X.8,HX NYL-Y

7546601

$1.49

16

ASM-CHASSIS 650/850 146 NAT [COLOR OPTION][INCL. BULKHEAD]

1028940-309

$2,059.99

16

ASM-TUNNEL 650/850 146 NAT [COLOR OPTION][INCL. TUNNEL COOLER]

1026717-309

$1,909.99

16

ASM-CHASSIS 650/850 146 BLK [COLOR OPTION][INCL. BULKHEAD]

1028940-067

$2,769.99

16

ASM-CHASSIS 650/850 146 RED [COLOR OPTION][INCL. BULKHEAD]

1028940-293

Unavailable

16

ASM-TUNNEL 650/850 146 INDYRED [COLOR OPTION][INCL. TUNNEL COOLER]

1026717-293

$1,889.99

16

ASM-CHASSIS 650/850 146 LLM [COLOR OPTION][INCL. BULKHEAD]

1028940-801

$2,367.19

17

PAD, 2.5"X2.5"

5814187

$4.03

18

CLAMP-CABLE

7080367

$2.39

19

RIVET-4.8MM DIA-1.5-6.0GRIP BK

7662251

$2.49

20

PAD-40X63.5

5814353

$9.70

21

MOUNT-LOAD CENTER

5454789

$9.70

22

BRKT-LOAD CENTER

5265340

$4.84
