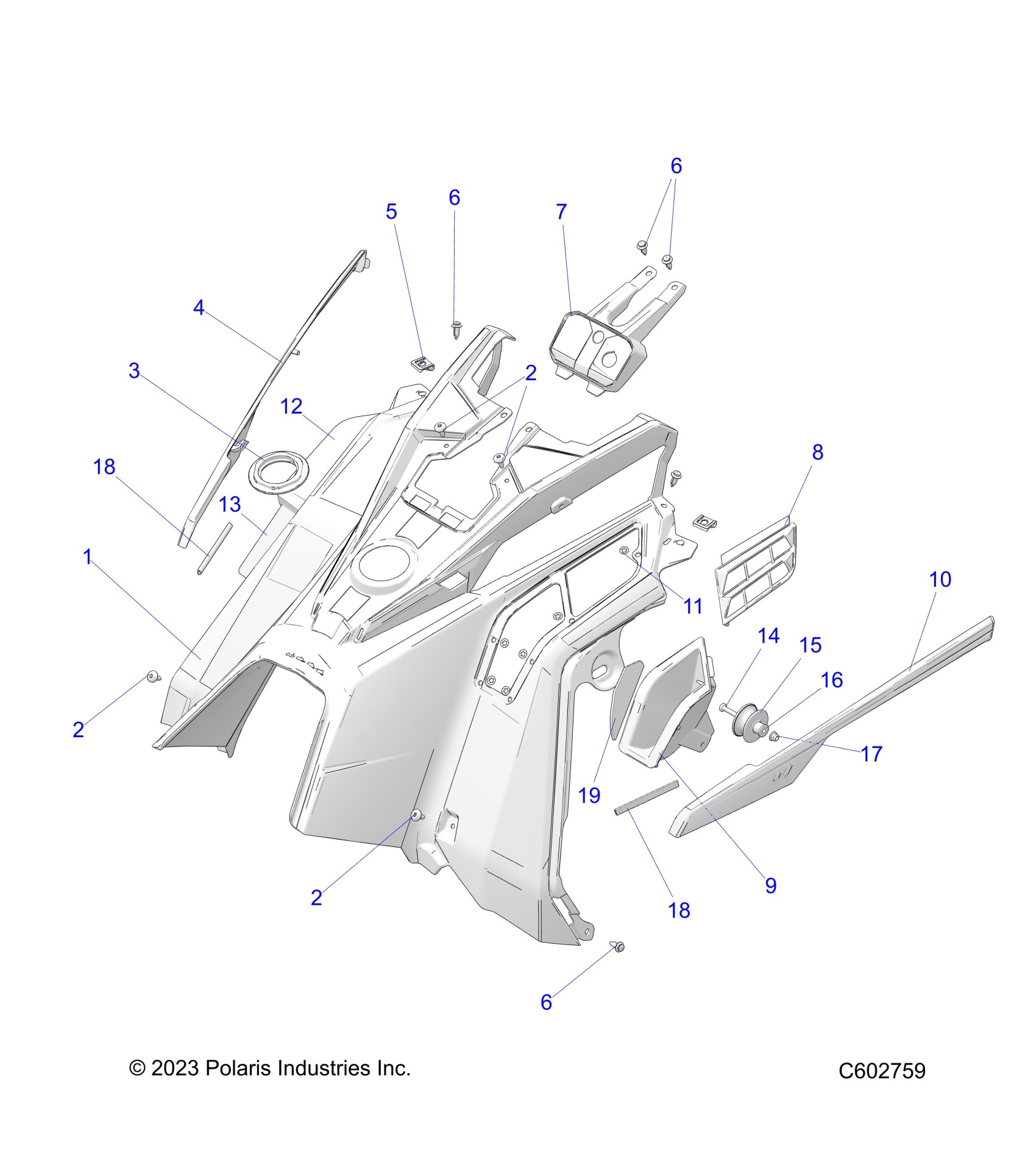

Polaris 650 SWITCHBACK XC 146 ALL OPTIONS (R02) - S25TLP6RS BODY, CONSOLE - S25TLP6RS (C602759) Diagram

#

Description
Price

1

ASM-CONSOLE [INCL. 8,9,11-13, AND WARN. DECAL]

2637700

$164.99

2

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

2

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

2

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

3

Nut, Filler Neck

5435156

$4.79

4

TRIM-CONSOLE LH RADNT GRN MET [COLOR OPTION]

5457070-887

$59.99

4

TRIM-CONSOLE LH INMLD SHDWGRY [COLOR OPTION]

5456441-944

$32.37

4

TRIM-CONSOLE LH IN-MLD INDYRED [COLOR OPTION]

5456441-293

$32.37

5

CLIP-1/4 TURN 6MM

7710808

$5.99

6

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

6

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

6

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

7

PANEL-CONSOLE SWITCH RCA

5466064

$24.27

8

VENT-CONSOLE

5457103

$12.94

9

ASM-POCKET RECOIL [INCL. 19]

2638092

$32.37

10

TRIM-CONSOLE RH RADIENTGRNMET [COLOR OPTION]

5457071-887

$59.99

10

TRIM-CONSOLE RH INMLD SHDWGRY [COLOR OPTION]

5456442-944

$32.37

10

TRIM-CONSOLE RH IN-MLD INDYRED [COLOR OPTION]

5456442-293

$32.37

11

RETAINER-BOLT,1/4-20

7670154

$1.49

12

FOAM-CONSOLE UPPER LH

5815022

$7.27

13

FOAM-CONSOLE LOWER LH

5815023

$4.84

14

SCR-TXPH-M6X1.0X45 8.8 ZBLK

7520466

$5.59

15

ROLLER, RECOIL

5435390

$16.44

16

BUSHING-ROLLER M6

5143683

$3.19

17

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

18

SEAL-BULB, .375, 350CM [BULK SVC LENGTH]

5521697-350

$40.46

18

SEAL-BULB, .375, 350CM [BULK SVC LENGTH]

5521697-350

$40.46

19

FOAM-RECOIL POCKET

5815248

$5.99
