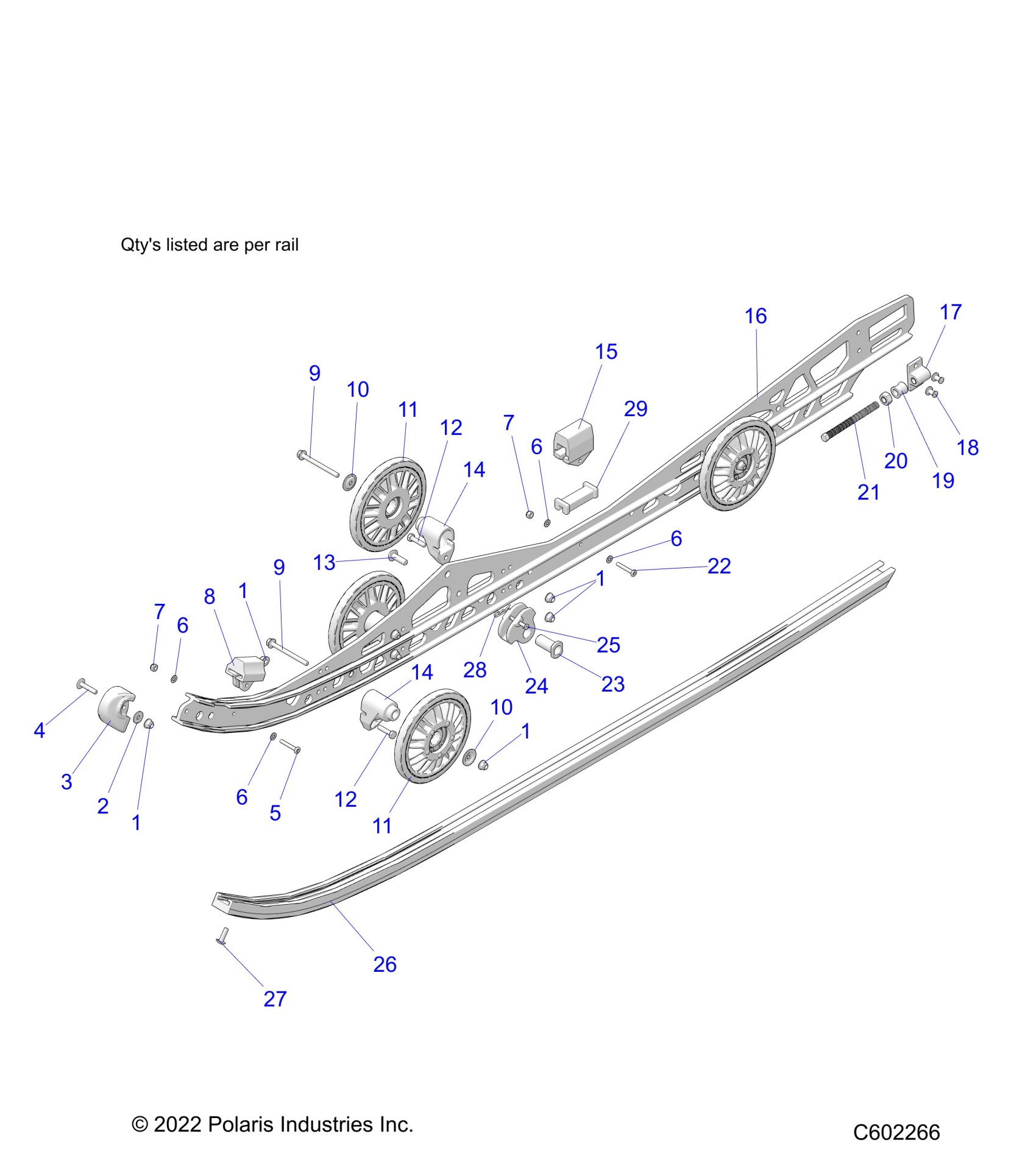

Polaris 650 SWITCHBACK XC 146 ALL OPTIONS (R01) - S26TLP6RS SUSPENSION, RAIL BEAM LH/RH - S26TLP6RS (C602266) Diagram

#

Description
Price

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

2

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

3

CAP, RAIL TIP

5452441

$16.99

4

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

5

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.79

6

Washer, Flat

7555783

$3.99

6

Washer, Flat

7555783

$3.99

6

Washer, Flat

7555783

$3.99

6

Washer, Flat

7555783

$3.99

7

NUT-NYLOC 10-24 Y

7541925

$1.49

7

NUT-NYLOC 10-24 Y

7541925

$1.49

8

BUMPER, JOUNCE, FRONT

5522253

$8.89

9

SCR-HXFL-M6X1.0X70 10.9 ZFB

7521331-70

$1.49

9

SCR-HXFL-M6X1.0X70 10.9 ZFB

7521331-70

$1.49

10

WASHER, OFFSET

7556799

$3.19

10

WASHER, OFFSET

7556799

$3.19

11

ASM-WHEEL SPOKED 5.62

1590632

$38.39

11

BEARING-.7874X1.6535X.4724 NSK [1 PER WHEEL]

3515142

$19.99

11

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

11

ASM-WHEEL SPOKED 5.62

1590632

$38.39

11

BEARING-.7874X1.6535X.4724 NSK [1 PER WHEEL]

3515142

$19.99

11

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

12

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

12

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

13

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

14

BLOCK-WHEEL MOUNT

5633278

$29.99

14

BLOCK-WHEEL MOUNT

5633278

$29.99

15

BUMPER-JOUNCE RTA

5418223

$34.99

16

ASM-RAIL 146 PREM SVC LH BLK [INCL.17,18][BLACK COLOR OPTION]

1544456-067

$664.99

16

ASM-RAIL 146 PREM SVC RH BLK [INCL.17,18][BLACK COLOR OPTION]

1544457-067

$664.99

16

ASM-RAIL 146 PREM SVC LH VELBL [INCL.17,18][VELOCITY BLUE COLOR OPTION]

1544456-689

$664.99

16

ASM-RAIL 146 PREM SVC RH VELBL [INCL.17,18][VELOCITY BLUE COLOR OPTION]

1544457-689

$664.99

17

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

18

RIVET

7621501

$2.39

19

SPACER-IDLER ADJ ALUM

5141837

$8.99

20

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

21

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

22

SCREW-#10-24X1.5,TRX/PN MC-Y

7510504

$6.76

23

SHAFT-SPRING ROLLER

5144612

$10.51

24

GUIDE, SPRING, SQUARE

5434334

$28.32

25

Pin, Clevis

7661123

$3.99

26

HI-FAX-146 BLK

5526364-070

$56.65

27

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19

28

PIN-HITCH, 3/32-Y

7661644

$2.39

29

LINER, BUMPER,LOW PROFILE

5451787

$6.99
