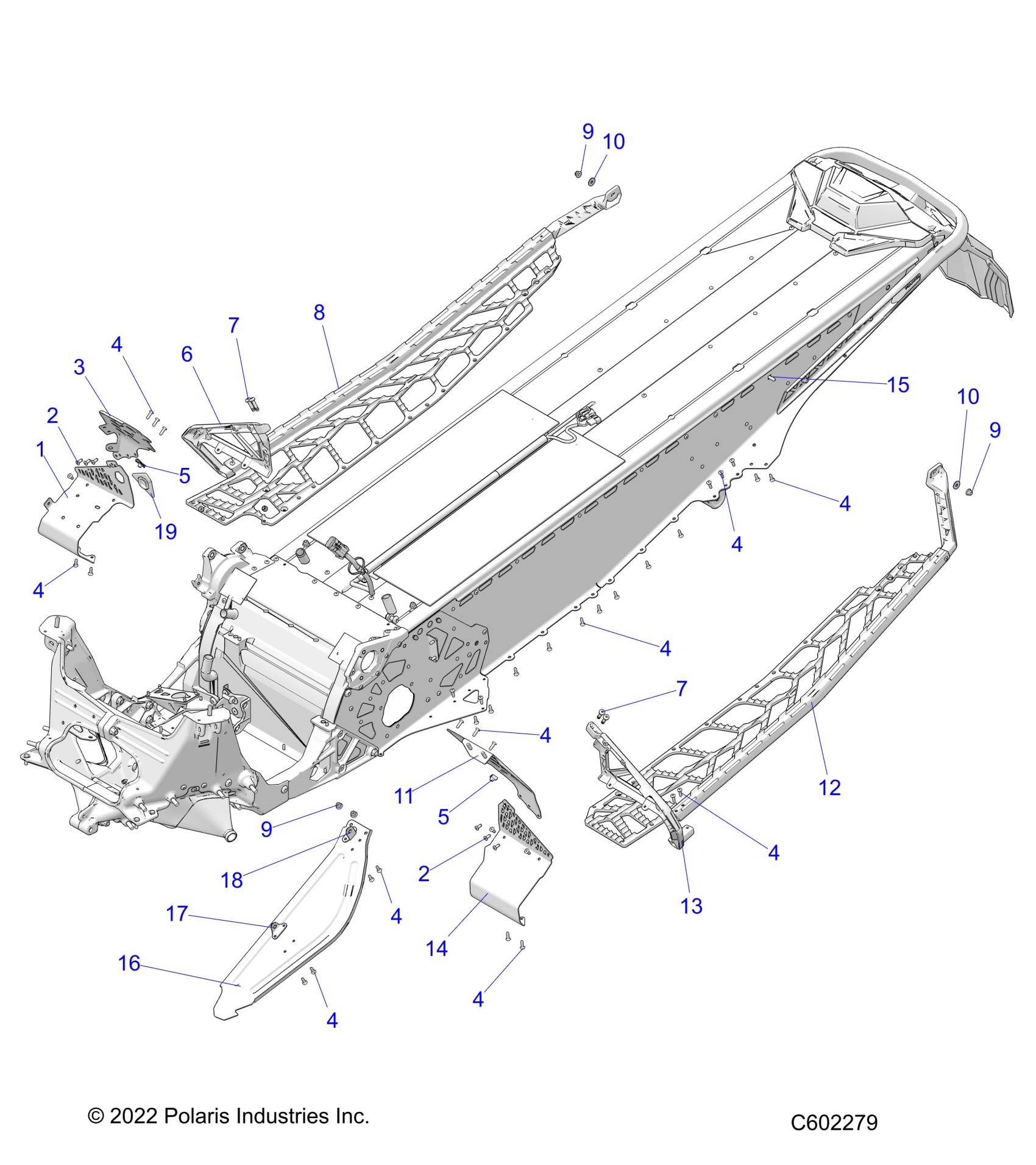

Polaris 650 SWITCHBACK XC 146 ALL OPTIONS (R01) - S23TLP6RS CHASSIS, CLUTCH GUARD, FOOTRESTS, and RUNNINGBOARDS - S23TLP6RS (C602279) Diagram

#

Description
Price

1

CLOSEOFF-FOOTREST RH

5272699

$104.99

2

RIVET-POP 3/16(.126-.250)-ST-B

7661973

$1.49

2

RIVET-POP 3/16(.126-.250)-ST-B

7661973

$1.49

3

ASM-CONSOLE SUPPORT [INCL. 5]

1027963

$28.32

4

RIVET-3/16-.090-.290

7661637

Unavailable

4

RIVET-3/16-.090-.290

7661637

Unavailable

4

RIVET-3/16-.090-.290

7661637

Unavailable

4

RIVET-3/16-.090-.290

7661637

Unavailable

4

RIVET-3/16-.090-.290

7661637

Unavailable

4

RIVET-3/16-.090-.290

7661637

Unavailable

4

RIVET-3/16-.090-.290

7661637

Unavailable

4

RIVET-3/16-.090-.290

7661637

Unavailable

4

RIVET-3/16-.090-.290

7661637

Unavailable

4

RIVET-3/16-.090-.290

7661637

Unavailable

5

CLIP-"U",M6.0X1.0

7547366

$5.99

5

CLIP-"U",M6.0X1.0

7547366

$5.99

6

SUPPORT-FOOTREST RH MACH

5143267

$44.51

6

SUPPORT-FOOTREST RH MACH BLK

5143267-067

$68.79

6

SUPPORT-FOOTREST RH MACH RED

5143267-293

$68.79

6

SUPPORT-FOOTREST RH MACH ORG

5143267-647

$68.79

6

SUPPORT-FOOTREST RH MACH PBLUE

5143267-751

$68.79

7

SCR-TXPH-M6X1.0X25 P80 ZC

7521292

$2.39

7

SCR-TXPH-M6X1.0X25 P80 ZC

7521292

$2.39

8

ASM-RUNNINGBOARD 146 RH

1027429

$343.71

8

ASM-RUNNINGBOARD 146 RH BLK

1027429-067

$343.71

8

ASM-RUNNINGBOARD 146 RH IRED

1027429-293

$343.71

8

ASM-RUNNINGBOARD 146 RH ORG

1027429-647

$343.71

8

ASM-RUNNINGBOARD 146 RH PBLUE

1027429-751

$343.71

9

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

9

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

9

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

10

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

10

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

11

ASM-CLUTCH GUARD SUPPORT

1025155

$40.46

12

ASM-RUNNINGBOARD 146 LH

1027428

$343.71

12

ASM-RUNNINGBOARD 146 LH BLK

1027428-067

$343.71

12

ASM-RUNNINGBOARD 146 LH IRED

1027428-293

$343.71

12

ASM-RUNNINGBOARD 146 LH ORG

1027428-647

$343.71

12

ASM-RUNNINGBOARD 146 LH PBLUE

1027428-751

$343.71

13

SUPPORT-FOOTREST LH MACH

5143266

$44.51

13

SUPPORT-FOOTREST LH MACH BLK

5143266-067

$68.79

13

SUPPORT-FOOTREST LH MACH RED

5143266-293

$68.79

13

SUPPORT-FOOTREST LH MACH ORG

5143266-647

$68.79

13

SUPPORT-FOOTREST LH MACH PBLUE

5143266-751

$68.79

14

CLOSEOFF-FOOTREST LH

5269374

$104.99

15

SCR-RHCARM6X1.0X20 8.8 ZOD

7518994

$3.22

16

ASM-GUARD CLUTCH [INCL. 4,17,18]

1025167

$82.29

17

ASM-BRKT OIL BOTTLE FRONT

1025803

Unavailable

18

ASM-BRKT OIL BOTTLE REAR

1025804

Unavailable

19

PLUG-FOOTREST HOLE COVER

5418418

$8.79
