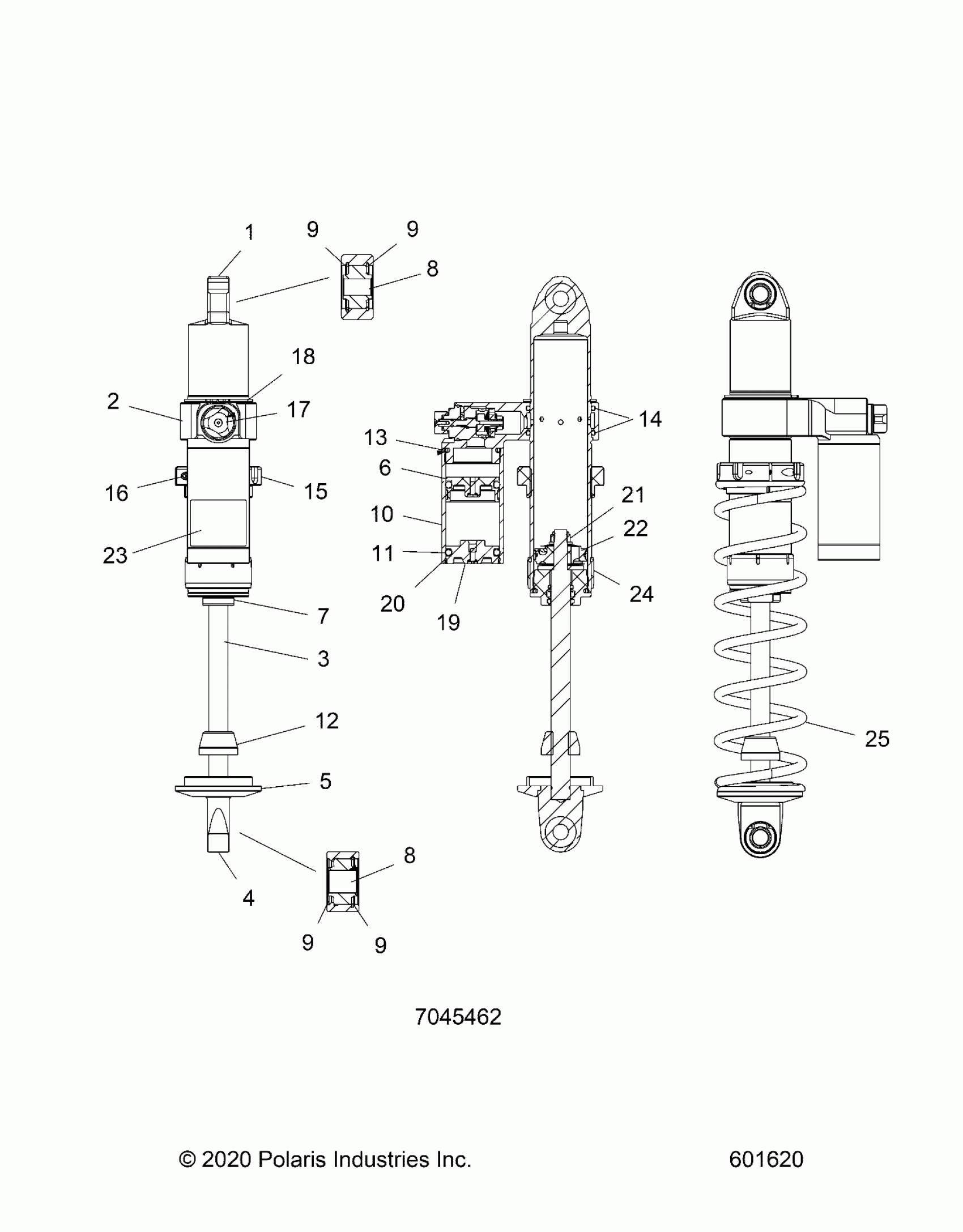

Polaris 650 MATRYX SWITCHBACK ASSAULT 146/INT (R02) - S21TLC6RS/6RE SUSPENSION, SHOCK, IFS - S21TLC6RS/6RE ALL OPTIONS (601620) Diagram

#

Description
Price

-

SHOCK-IFS WE VLCTY PIGGYBK 2" INCL. 1-24

7045462

$609.17

1

BODY, 2.0 MIDMOUNT [NOT AVAILABLE]

-------

Unavailable

2

BRIDGE, 2", ANO BLUE

1800998

$314.99

3

SHAFT-8.965L, .625DIA

1801166

$246.89

4

LOOP-SHAFT, 2.15L, BLUE

1801157

$121.41

5

RETAINER-SPRING CLIP, ANO BLUE

1800925

$39.99

6

IFP PISTON ASM 1.750, W- BLEED

1800739

$44.99

7

ASM-2.0 SEAL HEAD, BLU

1801151

$174.03

8

BEARING, END

1800040

$94.99

8

BEARING, END

1800040

$94.99

9

RING, SNAP, END BEARING

1800041

$7.27

9

RING, SNAP, END BEARING

1800041

$7.27

9

RING, SNAP, END BEARING

1800041

$7.27

9

RING, SNAP, END BEARING

1800041

$7.27

10

BODY-RESERVOIR 2.0" 3.75L

1800999

$119.99

11

O-RING, 2-324

1800184

$5.65

12

BUMPER, .62 IN SHAFT

1800462

$32.37

13

O-RING BODY LOOP

1800030

$2.02

14

O-RING, 2-226 1600018

1800863

$4.79

15

SPRING NUT- 2.0

1800936

$64.99

16

SCREW-SOC CAP M4X20

1801002

$3.99

17

ASM., ADJUSTER, HS-LS

1801021

$104.99

17

KNOB

1801053

$49.99

17

SCREW, 4-40X.375SS

1800738

$1.49

18

RING-RETAINING 2.06OD

1801003

$20.22

19

END CAP, RESERVOIR, 2"

1801006

$114.99

20

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

21

NUT-FLEX-TOP LOCK 7/16

1801000

$7.99

22

ASM-PISTON 7045299

1801167

$121.41

23

DECAL [NOT AVAILABLE]

-------

Unavailable

24

WEAR BAND, SPRING

1800780

$64.99

25

SPRG-CMP .306X10.00 100#2" BLK

7045298-458

$48.40
