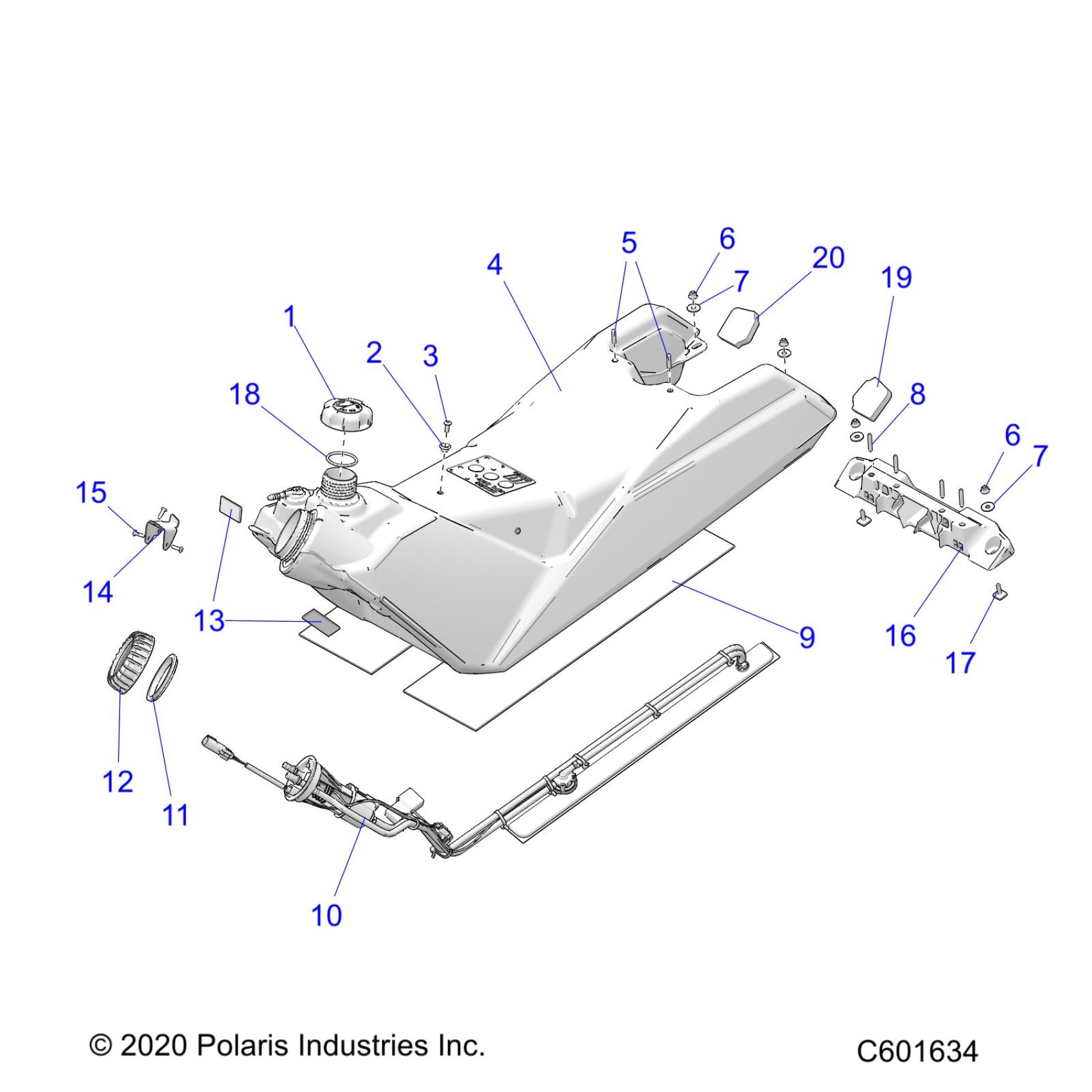

Polaris 650 MATRYX SWITCHBACK ASSAULT 146/INT (R02) - S21TLC6RS/6RE FUEL SYSTEM, FUEL TANK ASM. - S21TLC6RS/6RE ALL OPTIONS (C601634) Diagram

CAP-GAS TANK

5450389

$20.22

MOUNT-SEAT FRONT

5451185

$4.03

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

ASM-FUEL TANK MACH

2522198

$524.99

STUD-M6X1.0X25 8.8 ZOD

7520428

$10.39

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

WASHER-.28 X .81 X .06, ST-M

7555935

$2.39

WASHER-.28 X .81 X .06, ST-M

7555935

$2.39

STUD-M6X1.0X32 8.8 ZF

7527828

$7.19

PAD-GAS TANK

5815007

$20.22

K-FUEL PUMP 650 3BAR [INCL. PUMP, GASKET, PICK UP, AND INSTRUCTIONS]

2209298

$1,059.99

FLOAT

5437046

$8.89

K-PICK UP 650/850 [INCL. PICK UP, GASKET, AND INSTRUCTIONS]

2208145

$144.99

GASKET-PFA

5415105

$64.99

NUT-PFA

5436628

Unavailable

PAD-RUBBER 1.0 X 2.50 X.13

5813729

$28.32

BRKT-FUEL TANK

5269306

$11.32

RIVET-3/16-.090-.290

7661637

$1.49

ASM-FUEL TANK SUPPORT [INCL. STUDS]

1026480

$99.99

SCREW-SPL M6X1.0X20 8.8 ZOD

7520464

$3.99

O-Ring

5411174

$1.60

FOAM-TANK MOUNT LH

5814988

$4.84

FOAM-TANK MOUNT RH

5814989

$4.84
