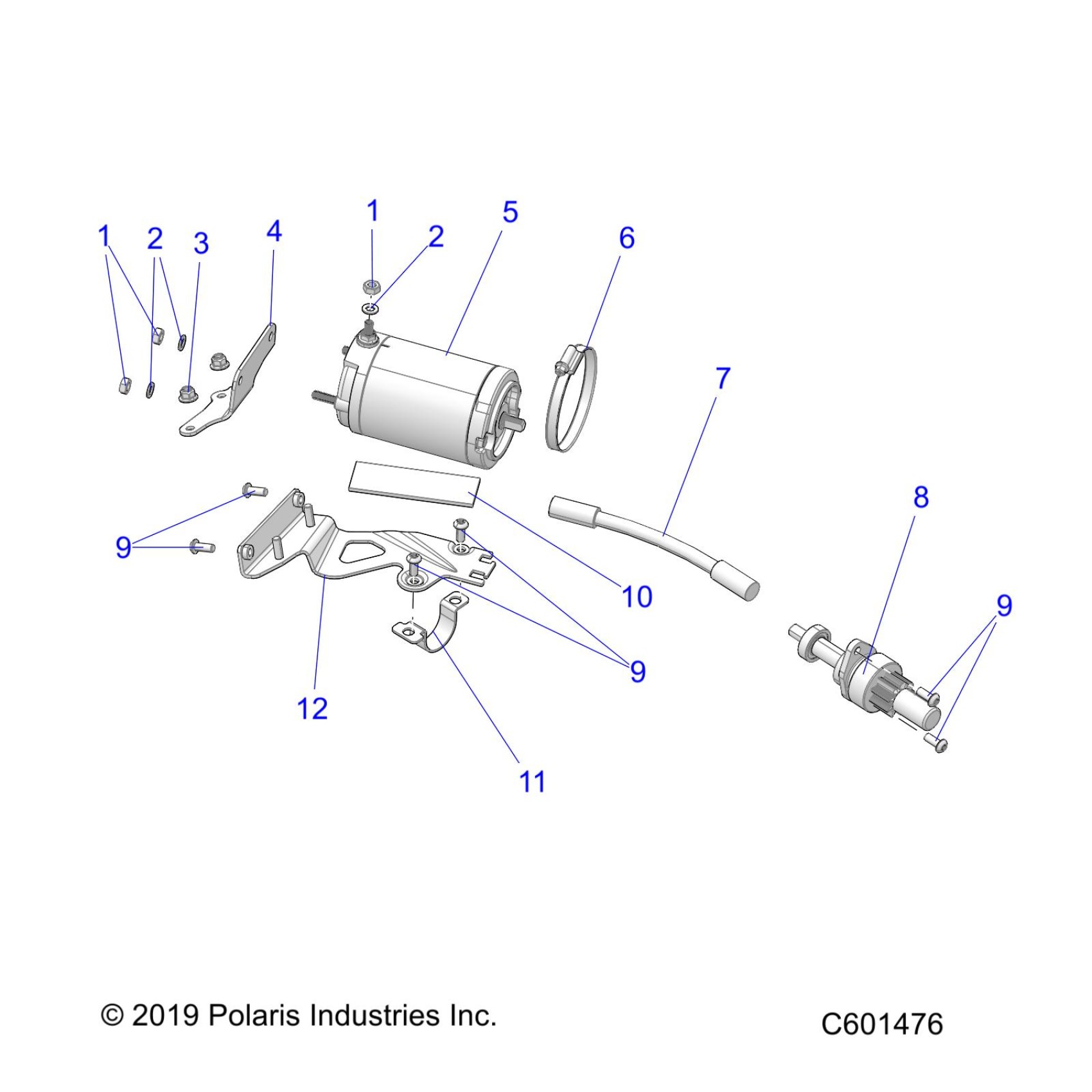

Polaris 650 MATRYX SWITCHBACK ASSAULT 146/INT (R02) - S21TLC6RS/6RE ENGINE, STARTER MOTOR - S21TLC6RS/6RE ELECT. START OPTON (C601476) Diagram

#

Description
Price

1

NUT-1/4-20 HEX-Y

7542105

$3.99

1

NUT-1/4-20 HEX-Y

7542105

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

2

WASHER, SPRING LOCK

7552801

$1.59

3

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

4

BRACKET, ELECTRIC START/CLIP

5267454

Unavailable

5

MOTOR, STARTER

4018147

$399.99

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

7

SHAFT, FLEX, STARTER 7.11

6230404

$94.99

8

ASM-PINION

1205959

Unavailable

9

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

9

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

9

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

10

FOAM-SEAL,REAR COOLER

5810947

$4.03

11

ASM., BRACKET, ELECTRIC START/UCA TUBE, LOWER

1018033

Unavailable

12

ASM-BRKT ES/UCA TUBE UPPER

1024505

$48.56
