- 650 MATRYX INDY XC 129 ALL OPTIONS (R01) - S22TKP6RS
SUSPENSION, RAIL BEAM LH/RH - S22TKP6RS ALL OPTIONS (C601863)

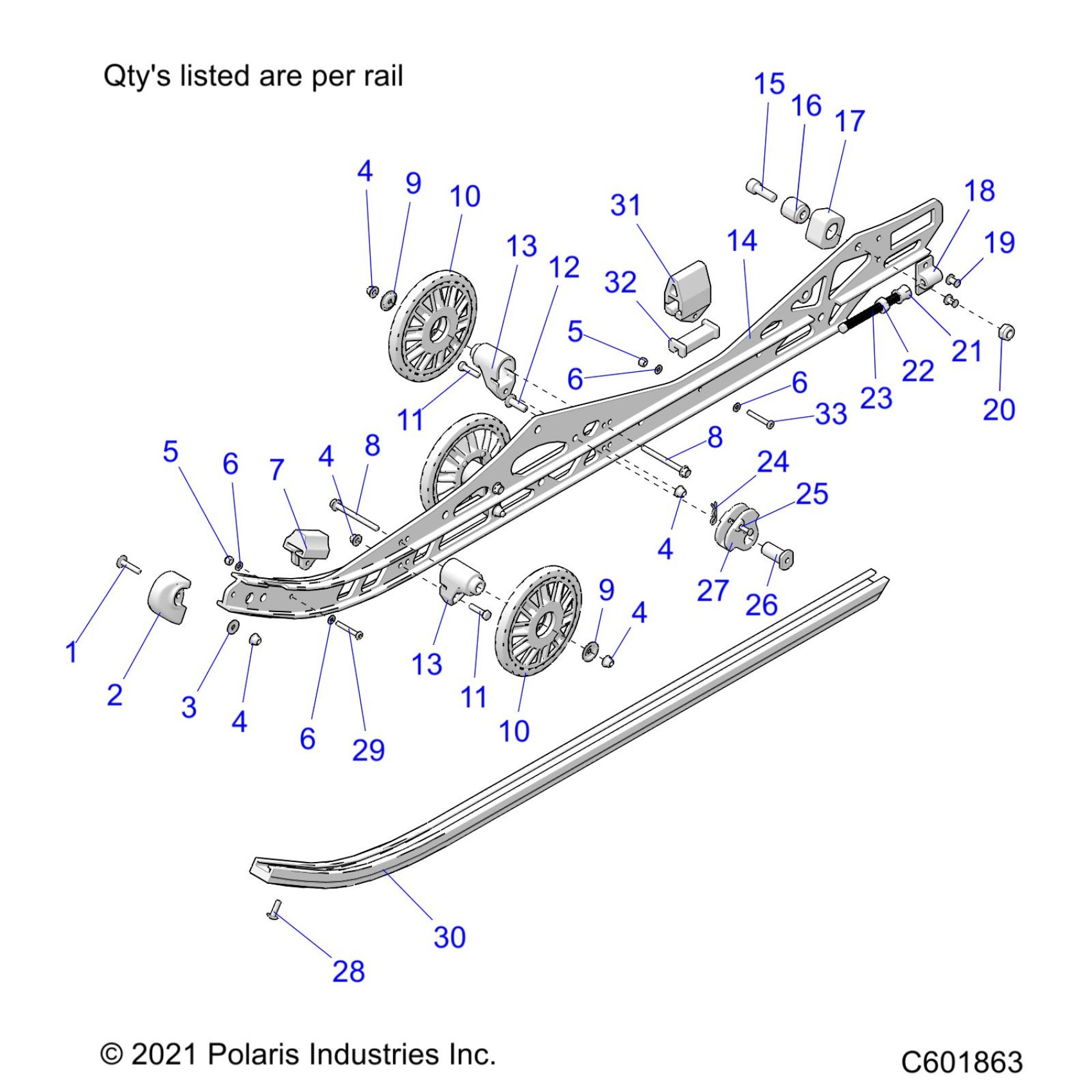

Polaris 650 MATRYX INDY XC 129 ALL OPTIONS (R01) - S22TKP6RS SUSPENSION, RAIL BEAM LH/RH - S22TKP6RS ALL OPTIONS (C601863) Diagram
#
1
SCR-TXTH-M6X1.0X30,8.8,ZPB
7520133
$3.19
2
CAP, RAIL TIP
5452441
$16.99
3
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
4
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
4
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
4
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
4
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
4
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
5
NUT-NYLOC 10-24 Y
7541925
$1.49
5
NUT-NYLOC 10-24 Y
7541925
$1.49
6
Washer, Flat
7555783
$3.99
6
Washer, Flat
7555783
$3.99
6
Washer, Flat
7555783
$3.99
6
Washer, Flat
7555783
$3.99
7
BUMPER, JOUNCE, FRONT
5522253
$8.89
8
SCR-HXFL- M6X1.0X70 10.9 ZOD
7519908
$4.79
8
SCR-HXFL- M6X1.0X70 10.9 ZOD
7519908
$4.79
9
WSHR-M6 OFFSET 2.01 ZOD
7556799
$3.19
9
WSHR-M6 OFFSET 2.01 ZOD
7556799
$3.19
10
ASM-WHEEL SPOKED 5.62
1590632
$38.39
10
BEARING [1 PER WHEEL]
3515142
$19.99
10
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
10
ASM-WHEEL SPOKED 5.62
1590632
$38.39
10
BEARING [1 PER WHEEL]
3515142
$19.99
10
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
11
SCR-HH-M6X1.0X25 8.8 ZPB
7517510
$4.79
11
SCR-HH-M6X1.0X25 8.8 ZPB
7517510
$4.79
12
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
13
BLOCK-WHEEL MOUNT
5633278
$29.99
13
BLOCK-WHEEL MOUNT
5633278
$29.99
14
ASM-RAIL 129 PREM SVC LH NAT [COLOR OPTION[INCL.18,19]
1544444-309
$539.99
14
ASM-RAIL 129 PREM SVC LH BLK [COLOR OPTION[INCL.18,19]
1544444-067
$769.99
14
ASM-RAIL 129 PREM SVC LH IRED [COLOR OPTION[INCL.18,19]
1544444-293
$654.99
14
ASM-RAIL 129 PREM SVC LH LMSQ [COLOR OPTION[INCL.18,19]
1544444-630
$654.99
14
ASM-RAIL 129 PREM SVC LH ISKYB [COLOR OPTION[INCL.18,19]
1544444-737
$654.99
14
ASM-RAIL 129 PREM SVC LH STGRY [COLOR OPTION[INCL.18,19]
1544444-804
$654.99
14
ASM-RAIL 129 PREM SVC RH NAT [COLOR OPTION[INCL.18,19]
1544445-309
$539.99
14
ASM-RAIL 129 PREM SVC RH BLK [COLOR OPTION[INCL.18,19]
1544445-067
$654.99
14
ASM-RAIL 129 PREM SVC RH RED [COLOR OPTION[INCL.18,19]
1544445-293
$654.99
14
ASM-RAIL 129 PREM SVC RH LMSQ [COLOR OPTION[INCL.18,19]
1544445-630
$654.99
14
ASM-RAIL 129 PREM SVC RH ISKYB [COLOR OPTION[INCL.18,19]
1544445-737
$654.99
14
ASM-RAIL 129 PREM SVC RH STGRY [COLOR OPTION[INCL.18,19]
1544445-804
$654.99
15
SCR-SH-M10X1.5X30 8.8 ZPB
7519844
$4.79
16
MOUNT-BUMPER METRIC
5136571
$9.70
17
BUMPER, PIVOT ARM
5410925
$12.94
18
BLOCK-IDLER BOLT ADJ METRIC
5136570
$34.99
19
RIVET
7621501
$2.39
20
NUT-HEX M10X1.5 8 ZOD NYL
7547442
$3.99
21
SPACER-IDLER ADJ ALUM
5141837
$8.99
22
NUT-HEX-M10X1.5 8 ZOD
7547707
$4.99
23
SCR-HX-M10X1.5X100,8.8,ZOD
7520083
$12.79
24
PIN-HITCH, 3/32-Y
7661644
$2.39
25
PIN-CLEVIS 3/16X1 1/4
7661123
$3.99
26
SHAFT-SPRING ROLLER M8 ANOD
5136687
$10.51
27
GUIDE-SPRING SQUARE
5434334
$28.32
28
SCR-M6X1.0X20 TR/TX/TAP ZOD
7518976
$3.19
29
SCR-10-24X1.25TFM PN TRX TRI-Y
7512025
$4.79
30
HI-FAX-146 BLK
5526364-070
$56.65
31
BUMPER, HOLLOW, TALL
5415327
$19.99
32
LINER, BUMPER,LOW PROFILE
5451787
$6.99
33
SCREW-#10-24X1.5,TRX/PN MC-Y
7510504
$6.76
