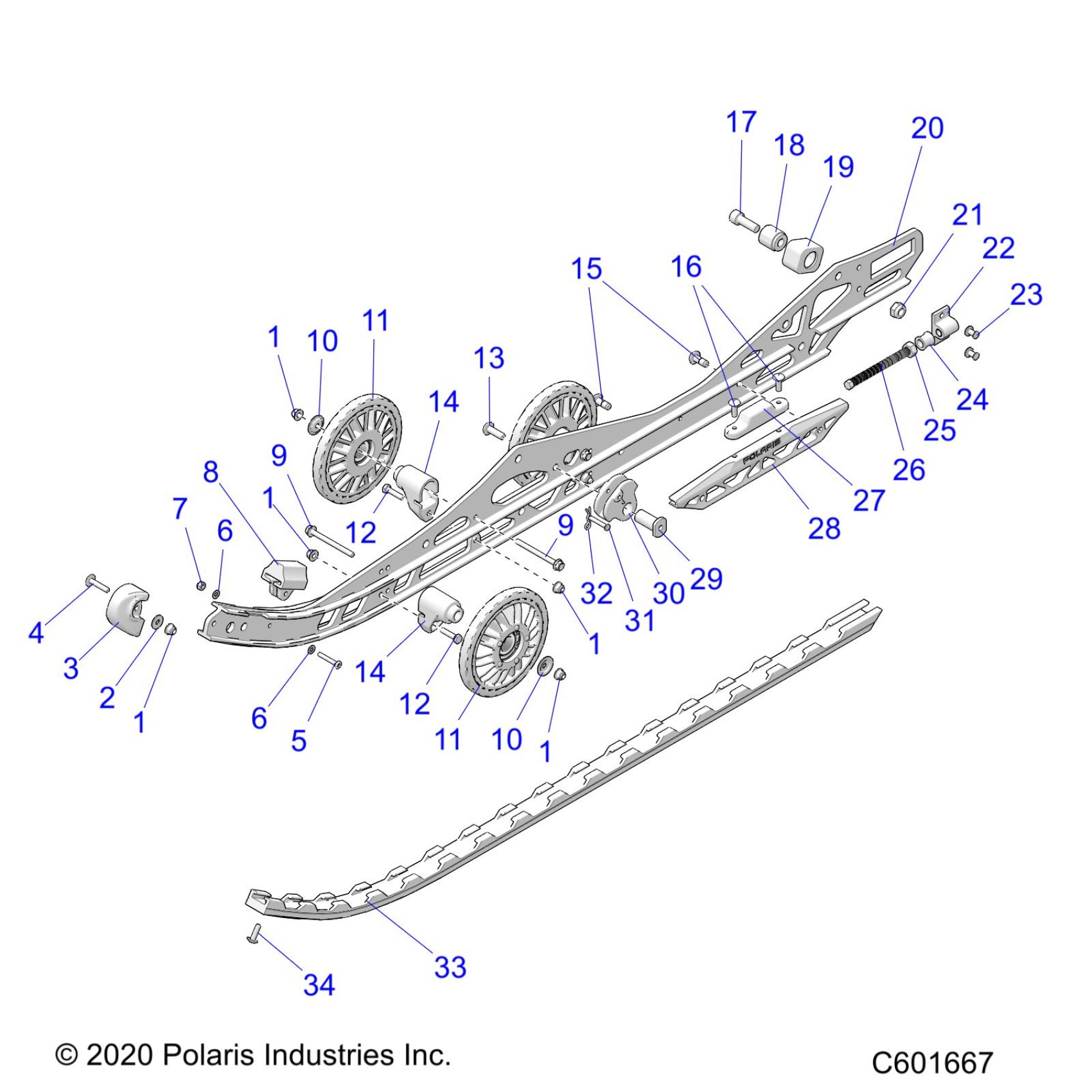

Polaris 650 MATRYX INDY VR1 129 ALL OPTIONS (R01) - S22TKV6RS SUSPENSION, RAIL BEAM LH/RH - S22TKV6RS ALL OPTIONS (C601667) Diagram

#

Description
Price

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

2

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

3

CAP, RAIL TIP

5452441

$16.99

4

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

5

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.79

6

Washer, Flat

7555783

$3.99

6

Washer, Flat

7555783

$3.99

7

NUT-NYLOC 10-24 Y

7541925

$1.49

8

BUMPER, JOUNCE, FRONT

5522253

$8.89

9

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

9

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

10

WASHER, OFFSET

7556799

$3.19

10

WASHER, OFFSET

7556799

$3.19

11

ASM-WHEEL SPOKED 5.62

1590632

$38.39

11

BEARING-.7874X1.6535X.4724 NSK [1 PER WHEEL]

3515142

$19.99

11

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

11

ASM-WHEEL SPOKED 5.62

1590632

$38.39

11

BEARING-.7874X1.6535X.4724 NSK [1 PER WHEEL]

3515142

$19.99

11

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

12

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

12

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

13

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

14

BLOCK-WHEEL MOUNT

5633278

$29.99

14

BLOCK-WHEEL MOUNT

5633278

$29.99

15

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

16

SCR-1/4-20X3/4,TR/TX/TAP-Y

7515199

$1.49

17

SCREW-SH-M10X1.5X30 8.8 ZPB

7519844

$4.79

18

MOUNT-BUMPER METRIC

5136571

$9.70

19

BUMPER,F.PIVOT ARM

5410925

$12.94

20

ASM-RAIL 129 PREM SVC LH BLK [COLOR OPTION][INCL. 22,23]

1544444-067

$769.99

20

ASM-RAIL 129 PREM SVC RH BLK [COLOR OPTION][INCL. 22,23]

1544445-067

$654.99

20

ASM-RAIL 129 PREM SVC LH IRED [COLOR OPTION][INCL. 22,23]

1544444-293

$654.99

20

ASM-RAIL 129 PREM SVC RH RED [COLOR OPTION][INCL. 22,23]

1544445-293

$654.99

20

ASM-RAIL 129 PREM SVC LH STGRY [COLOR OPTION][INCL. 22,23]

1544444-804

$654.99

20

ASM-RAIL 129 PREM SVC RH STGRY [COLOR OPTION][INCL. 22,23]

1544445-804

$654.99

20

ASM-RAIL 129 PREM SVC LH LMSQ [COLOR OPTION][INCL. 22,23]

1544444-630

$654.99

20

ASM-RAIL 129 PREM SVC RH LMSQ [COLOR OPTION][INCL. 22,23]

1544445-630

$654.99

20

ASM-RAIL 129 PREM SVC LH ISKYB [COLOR OPTION][INCL. 22,23]

1544444-737

$654.99

20

ASM-RAIL 129 PREM SVC RH ISKYB [COLOR OPTION][INCL. 22,23]

1544445-737

$654.99

20

ASM-RAIL 129PREMSVC LH PLUMCZY [COLOR OPTION][INCL. 22,23]

1544444-784

$654.99

20

ASM-RAIL 129PREMSVC RH PLUMCZY [COLOR OPTION][INCL. 22,23]

1544445-784

$654.99

20

ASM-RAIL 129 PREM SVC LH ORGB [COLOR OPTION][INCL. 22,23]

1544444-647

$654.99

20

ASM-RAIL 129 PREM SVC RH ORGB [COLOR OPTION][INCL. 22,23]

1544445-647

$654.99

20

ASM-RAIL 129 PREM SVC LH WHT [COLOR OPTION][INCL. 22,23]

1544444-599

$654.99

20

ASM-RAIL 129 PREM SVC RH WHT [COLOR OPTION][INCL. 22,23]

1544445-599

$654.99

21

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

22

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

23

RIVET-FLAT HD-1/4 X .575

7621501

$2.39

24

SPACER-IDLER ADJ ALUM

5141837

$8.99

25

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

26

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

27

BUMPER-FRT TORQ ARM, XTRA 12

5432166

$5.59

28

PLATE-RAIL REINF BLK ANODIZED

5143395

$194.99

29

SHAFT, SPRING ROLLER

5136687

$10.51

30

GUIDE, SPRING, SQUARE

5434334

$28.32

31

Pin, Clevis

7661123

$3.99

32

PIN, HITCH

7661644

$2.39

33

HI-FAX-129 LWT BLK

5522230-070

$56.65

34

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19
