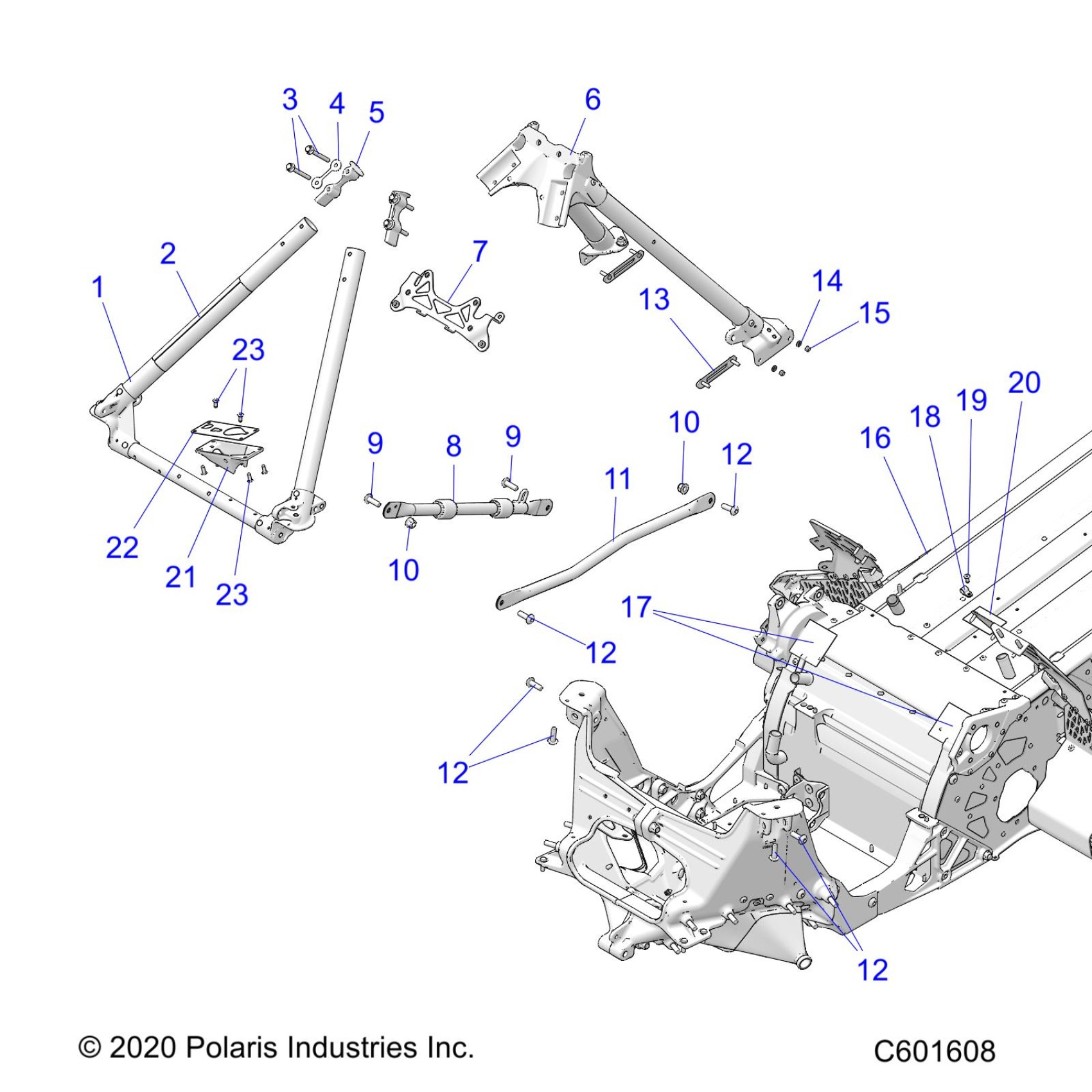

Polaris 650 MATRYX INDY VR1 129 ALL OPTIONS (R01) - S22TKV6RS CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S22TKV6RS ALL OPTIONS (C601608) Diagram

#

Description
Price

1

ASM., FRAME, TUBULAR, FRONT CF

1023852

$374.99

2

FOIL-100MM X 200MM

5814124

$8.99

3

SCR-HXFL-M6X1X60 10.9 ZOD P30

7520723

$4.99

4

SHIM-TUBE CAST 31.76 DIA

5633083

$6.99

5

SPACER, TUBE CAST

5632923

$9.99

6

ASM-TUBE FRAME REAR

1025156

$784.99

7

ASM-REGULATOR MOUNT

1024479

$36.41

8

WELD-CROSS BRACE BLK

1026865

$74.99

9

SCREW-TXTR

7518906

$3.19

9

SCREW-TXTR

7518906

$3.19

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

TUBE-BRACE LH BLK

5337391-329

$34.99

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

13

ASM-STUD PLATE 5MM

1023672

$12.79

14

WSHR-FL,5.5X1.0,(10)

7556071

$4.79

15

NUT-M5X.8,HX NYL-Y

7546601

$1.49

16

ASM-CHASSIS 650/850 129 BLK [INCL. BULKHEAD][COLOR OPTION]

1026712-067

$2,684.99

16

ASM-TUNNEL 650/850 129 BLK [INCL. TUNNEL COOLER][COLOR OPTION]

1026713-067

$1,534.99

16

ASM-CHASSIS 650/850 129 RED [INCL. BULKHEAD][COLOR OPTION]

1026712-293

$2,684.99

16

ASM-TUNNEL 650/850 129 INDYRED [INCL. TUNNEL COOLER][COLOR OPTION]

1026713-293

$1,534.99

16

ASM-CHASSIS 650/850 129 TSILVR [INCL. BULKHEAD][COLOR OPTION]

1026712-402

$2,684.99

16

ASM-TUNNEL 650/850 129 TSILVER [INCL. TUNNEL COOLER][COLOR OPTION]

1026713-402

$1,534.99

16

ASM-CHASSIS 650/850 129 PLMCZY [INCL. BULKHEAD][COLOR OPTION]

1026712-784

Unavailable

16

ASM-TUNNEL 650/850 129 PLMCRZY [INCL. TUNNEL COOLER][COLOR OPTION]

1026713-784

Unavailable

16

ASM-CHASSIS 650/850 129 STGRAY [INCL. BULKHEAD][COLOR OPTION]

1026712-804

Unavailable

16

ASM-TUNNEL 650/850 129 STLGRY [INCL. TUNNEL COOLER][COLOR OPTION]

1026713-804

$1,534.99

17

PAD, 2.5"X2.5"

5814187

$4.03

18

CLAMP-CABLE,NYLON,5/16"

7080960

$4.79

19

RIVET-4.8MM DIA-1.5-6.0GRIP BK

7662251

$2.49

20

PAD-40X63.5

5814353

$9.70

21

MOUNT-LOAD CENTER

5454789

$9.70

22

BRKT-LOAD CENTER

5265340

$4.84

23

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49

23

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49
