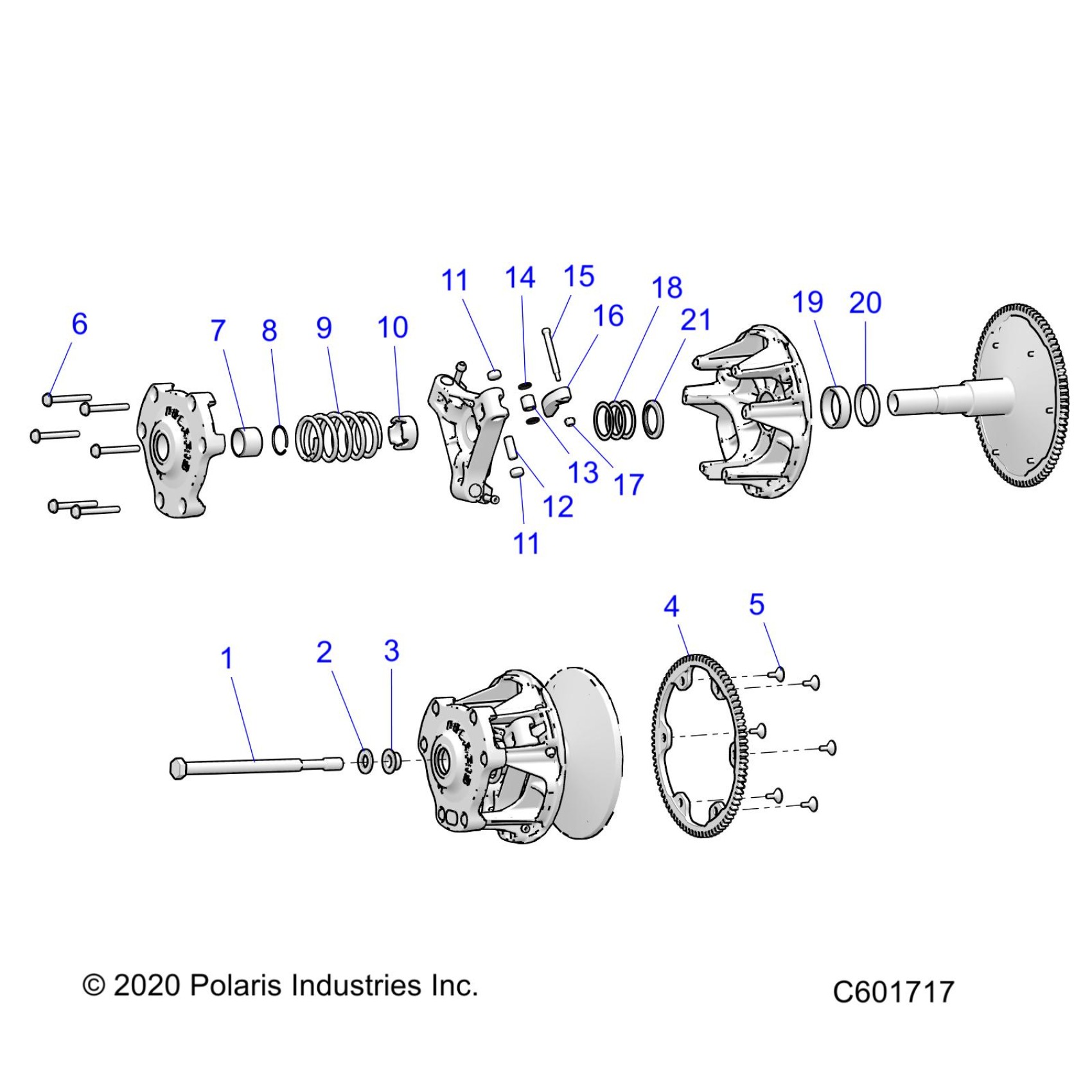

Polaris 650 INDY VR1 129 ALL OPTIONS (R01) - S23TKV6RS DRIVE TRAIN, CLUTCH, PRIMARY - S23TKV6RS (C601717) Diagram

#

Description
Price

-

ASM-DRIVE CLUTCH BSC 6:1 ES [INCL. 6-8,10,11-15,17-21]

1323613

$549.89

-

ASM., DRIVE CLUTCH, BSC 6:1 [INCL. 6-8,10,11-15,17-21]

1323614

$518.69

1

SCR-M14X1.5X215,HX,10.9,Y35,R

7518412

$34.99

2

WSHR-0.5625X1.1X0.109 ZY3 HRD

7556702

$4.79

3

WASHER-CLUTCH RET,M14

5132441

$23.99

4

KIT, GEAR, STARTER, RING [E.S.][INCL. 5]

2870002

$134.99

5

SCR-SHFL-5/16-18X.625 GR5 ZY3 [E.S.]

7515351

$3.99

6

SCR-1/4-20X2 1/4 HX FLNG GR5-Y

7518349

$1.49

7

BEARING COVER GARMAX

3514347

$36.41

8

RING-RETAINING,COVER

7710417

$1.49

9

SPRING-DRV CLUTCH 120/320 DRE

7044537

$56.65

10

NUT-JAM

5020425

$23.99

11

BUTTON, GUIDE

5430445

$6.39

11

Kit - Shim, Drive Clutch

2200387

$24.27

11

BUTTON, GUIDE

5430445

$6.39

11

Kit - Shim, Drive Clutch

2200387

$24.27

12

PIN, ROLLER

5133079

$6.39

13

ASM-ROLLER AND BUSHING

1321622

$32.37

14

WASHER,MULTILUBE

5430945

$1.59

15

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

16

ASM-WEIGHT/BUSHING (10-66)

1321584

$40.46

17

NUT-10-24-FLEX LOC-Z

7541906

$3.19

18

SPACER, .050

5210754

$3.19

18

SPACER, .032

5210753

$2.39

18

SPACER, .025

5242981

$3.99

18

SPACER, .020

5210752

$1.59

19

BEARING-SLEEVE

3514641

$19.99

20

INSERT-MOVEABLE

5010188

$7.99

21

SHIM-1.25X1.74X.103 STEP

5142519

$11.32
