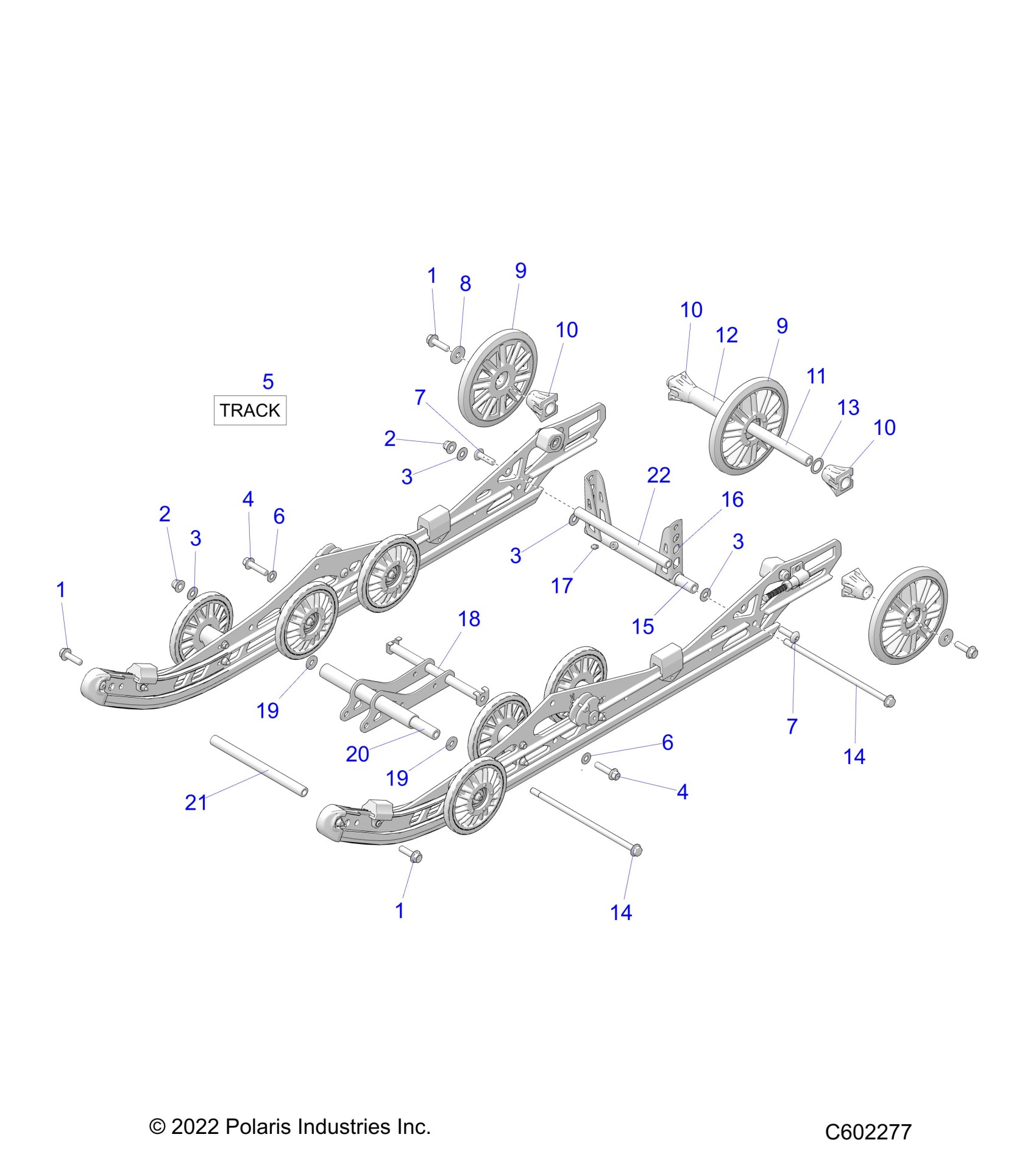

Polaris 650 INDY ADVENTURE 137 ALL OPTIONS (R03) - S25TDE6RS SUSPENSION, REAR - S25TDE6RS (C602277) Diagram

#

Description
Price

1

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

1

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

1

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

2

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

2

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

4

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

4

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

5

TRACK-15X137" 1.25 ICE RIPPER OPTION

5416995

$801.99

5

TRACK,1.352"x137 INCH COBRA OPTION

5413661

$869.99

5

TRACK-15X137" 1.5" STORM 150 OPTION

5416618

$818.99

5

CLIP-TRACK,LNG GUIDE

5251274

Unavailable

5

CLIP-TRACK, FLAT

5251273

Unavailable

6

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

6

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

7

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

7

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

8

WASHER-SPRING.406X1.25X.125ZOD

7556490

$4.79

9

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

9

BEARING

3514384

$19.84

9

RING-RETAINING

7710444

$8.79

9

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

9

BEARING

3514384

$19.84

9

RING-RETAINING

7710444

$8.79

10

SPACER-IDLER

5432535

$11.99

10

SPACER-IDLER

5432535

$11.99

10

SPACER-IDLER

5432535

$11.99

11

SHAFT, IDLER

5136745

$38.71

12

SPACER-IDLER, LONG

5333285

$11.99

13

BUSHING

7555918

$1.59

14

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

14

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

15

SHAFT, CROSS

5137418

$32.37

16

WELD-REAR PIVOT ARM ECOAT

1543905-329

$121.02

17

FITTING-LUBRICATION 1/4-28

7080424

$4.79

18

H-BRACKET ECOAT

1544014-329

$106.49

19

WSHR-M10.5X25X2.4 ZPC

7556559

$3.19

19

WSHR-M10.5X25X2.4 ZPC

7556559

$3.19

20

SHAFT-H-BRKT CC AL

5140492

$43.56

21

SFT-M10X1.5IDX17.47ODX220.1 LG

5136572

$33.87

22

SHAFT-CROSS MACH

5139172

$29.03
