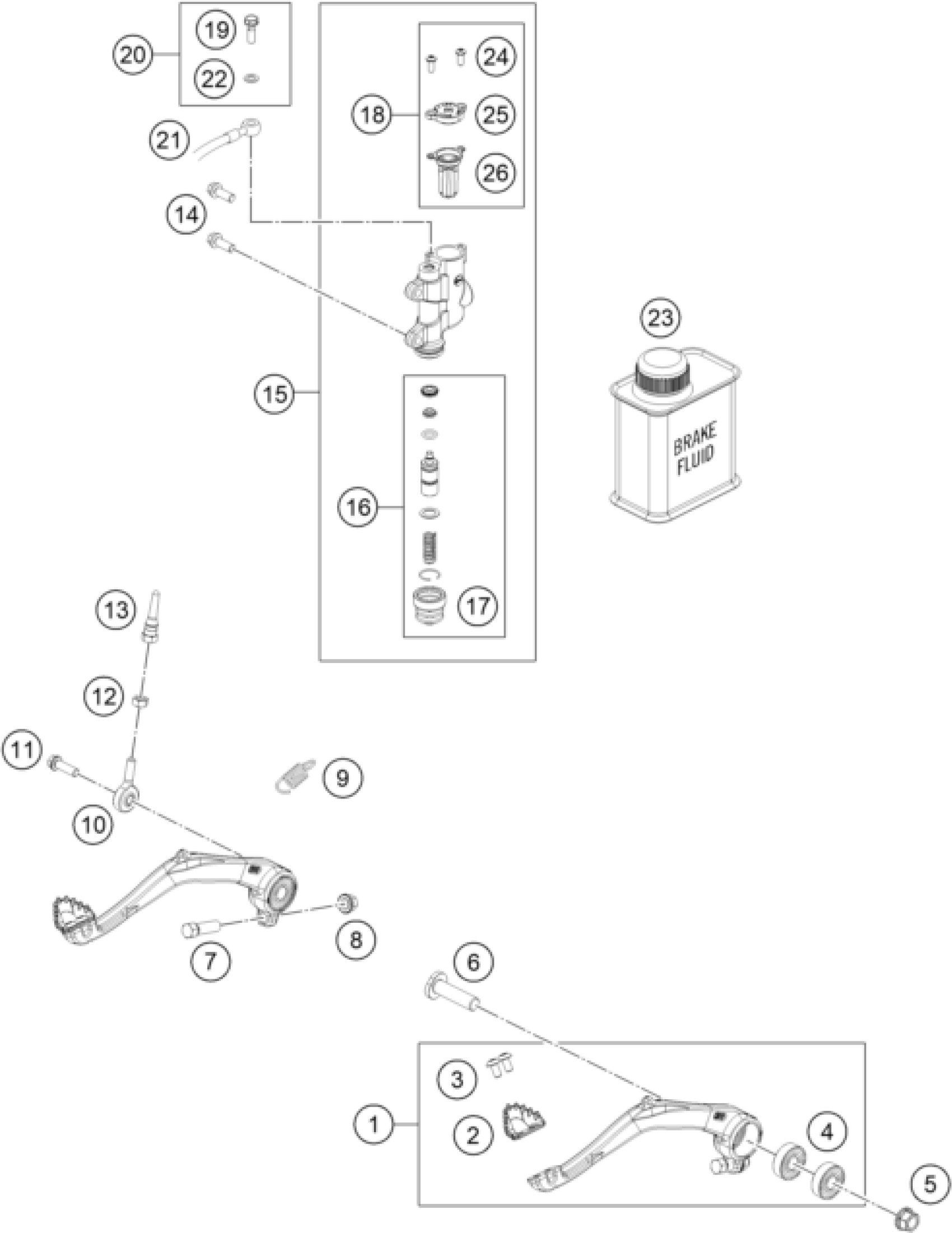

KTM 65 SX 2026 REAR BRAKE CONTROL Diagram

Brake pedal cmpl.

A40513050144

Unavailable

STEP PLATE FOOT BRAKE LEVER

55413051000

$27.67

Torx hexagon socket screw M5x1

58605083010S

$2.05

Grooved ball bearing 6000 LUV

0625060003

$12.33

COLLAR NUT M10 WS=13

54630044000

$1.49

Screw foot brake lever

47213054000

$4.11

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

flanged nut M8 WS10

46030045000

$7.85

Retracting spring

A46003062000

$2.05

Joint head CMP6

54813055100

$19.91

HH collar screw M6x20 TX30

0025060206S

$2.05

Hex. nut DIN 934 M6

0934060003

$1.49

PRESSURE ROD 85 SX 06

47013056100

$13.08

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

Complete master cylinder

47213060044

$198.49

Rep.set piston, rear D=12 2004

47013061100

$75.45

Dust cover

47213063000

$5.23

Membrane kit

47213062000

$19.16

Hollow screw, brake cylinder 0

47013025000

$10.84

Hose screws kit

47213025000

$18.88

brake pipe rear

A40513070000

$105.09

O-RING 8,00X1,00 FORMULA

0770080019

$2.05

Brake fluid DOT5.1 0,25L

00062030000

$12.52

AH.SCREW DIN0912-M 4X10

0912040103

$2.05

CYLINDER COVER REAR 85 SX 03

47013062000

$8.87

GASKET CYLINDER COVER REAR 03

47013063000

$10.74
