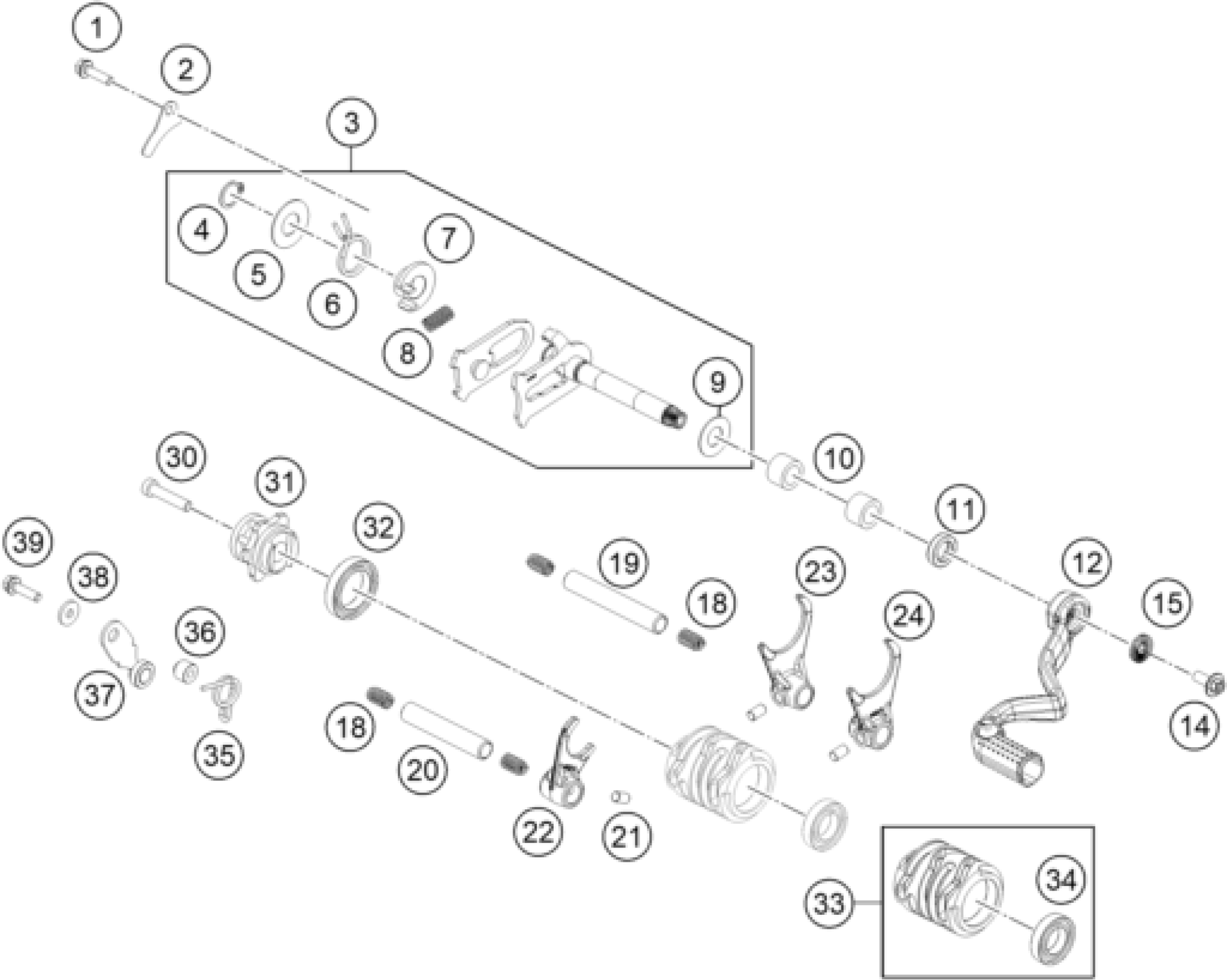

KTM 65 SX 2025 SHIFTING MECHANISM Diagram

#

Description
Price

1

Hex collar screw M5x12 ISA30 S

0025050126S

$1.49

2

SHIFTING SHAFT FENDER RET. PL.

46234005110

$5.23

3

Shift shaft cmpl.

A40534005044

$65.35

4

retaining ring DIN 471 14x1

0471140100

$1.49

5

STOP DISK 14X30X1

54634050000

$2.05

6

RETURN SPRING 03

54834014000

$4.11

7

SPRING GUIDE

54634020000

$6.44

8

TENSIONING SPRING 0,8MM

56534013100

$1.49

9

STOP DISK 12,1X25X1

49033013000

$4.11

10

NEEDLE BEARING 12X18X12 2002

46034027000

$8.03

11

SHAFT SEAL RING 12X20X5 B

0760122050

$8.03

12

Gear shift lever

A40534031000

$66.10

14

HH collar screw M6x15 TX30

0024060156S

$2.05

15

PAIR NORDLOCK WASHER M6

50233041500

$4.11

18

Compression spring L=25mm D=0.

58038023400

$1.49

19

Shift fork shaft (L=75.5 mm)

A40534019000

$9.44

20

Shift fork shaft (L=66 mm)

A46034020000

$7.85

21

NEEDLE ROLLER ZRB 6X10

0402061000

$6.35

22

SHIFT FORK MAIN SHAFT

46234001000

$61.42

23

SHIFT FORK COUNTERSHAFT R/S

46234002000

$57.87

24

SHIFT FORK COUNTERSHAFT Ll/S

46234003000

$57.59

30

AH SCREW DIN0912-M 6X30

0912060303

$2.05

31

Shift star cmpl.

A40534015100

$27.67

32

Grooved ball bearing 6805 JR C

0410002500700

$43.94

33

SHIFT ROLLER CPL.

46234012033

$82.08

34

BALL BEARING 6903 C4

0625069034

$20.37

35

LOCKING LEVER SPRING 03

54834023000

$3.08

36

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

37

Detent arm cmpl.

A46034024044

$11.59

38

washer DIN 9021 A - 5.3

0021050003

$1.49

39

HH collar screw M5x25 TX30

0025050256S

$1.49
