Description

Price

1

Main wiring harness

A40511075000

$59.83

2

CDI control unit

A40539031000

$225.79

3

Rubber support CDI

A40539030000

$2.98

4

Ignition coil

A40539006000

$124.07

5

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

6

Spark plug connector

46239190000

$34.12

7

Spark plug AR12C

A40039093012

$5.13

8

Sealing boot

A40539091000

$9.34

9

Stator

A40539004000

$256.56

10

HH Collar Screw M5x16 ISA30 SS

0025050166S

$1.49

11

Rotor

A40539005000

$158.19

12

LOCKING RING VSK 12

50230029012

$2.05

13

COLLAR NUT M12X1 R/S

49030021000

$2.05

15

Ignition cover

A40530002000

$22.15

16

HH collar screw M6x20 TX30

0025060206

$3.08

14

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

18

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

17

HH collar screw M6x12 TX30

0025060126

$3.08

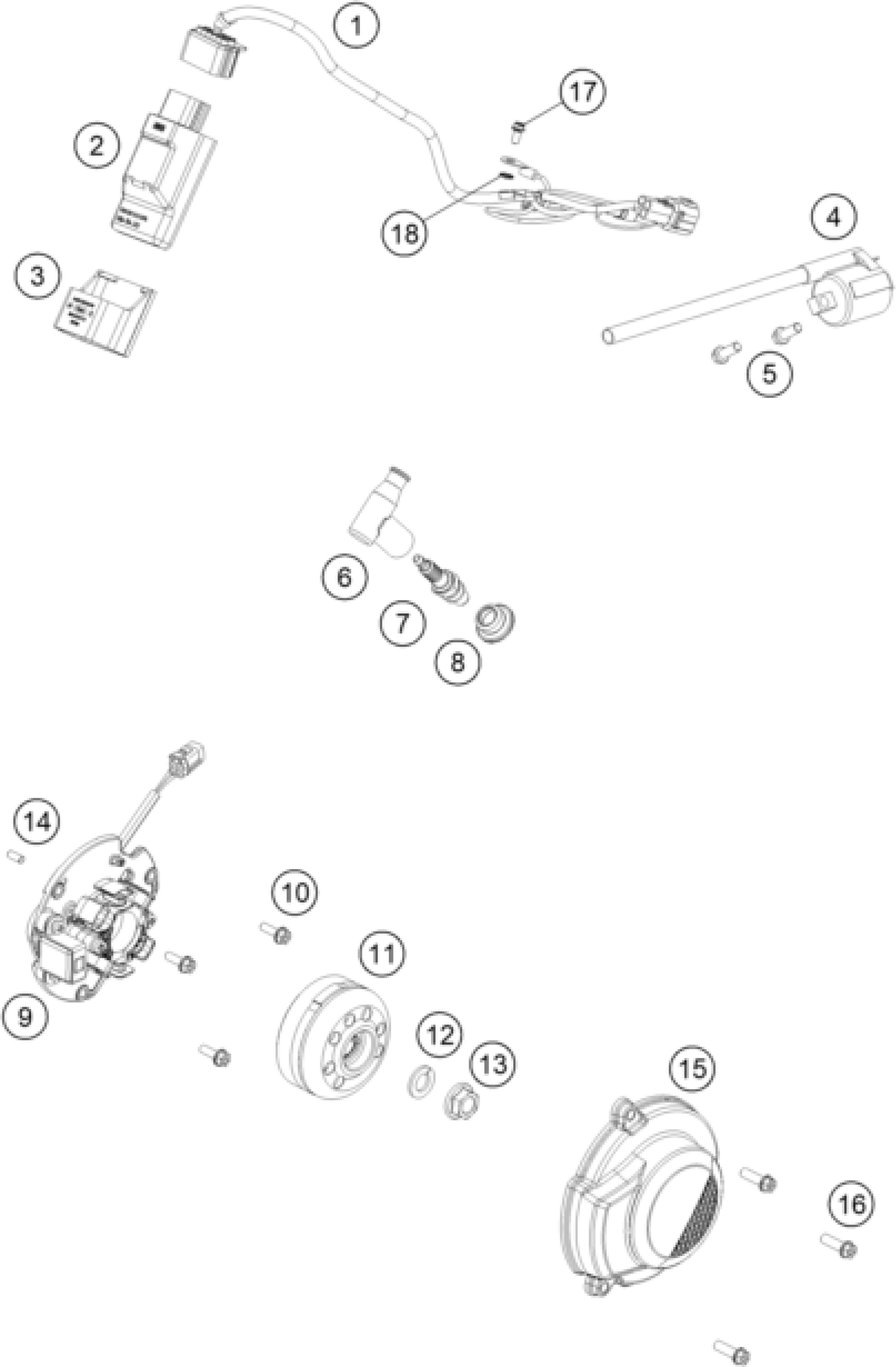

KTM 65 SX 2024 IGNITION SYSTEM Diagram

Main wiring harness

CDI control unit

Rubber support CDI

Ignition coil

HH collar screw M6x16 TX30 SL

Spark plug connector

Spark plug AR12C

Sealing boot

Stator

HH Collar Screw M5x16 ISA30 SS

Rotor

LOCKING RING VSK 12

COLLAR NUT M12X1 R/S

Ignition cover

HH collar screw M6x20 TX30

Needle roll.DIN5402 NRB 4X9.8

CONTACT WASHER M6 VSV-K6

HH collar screw M6x12 TX30
