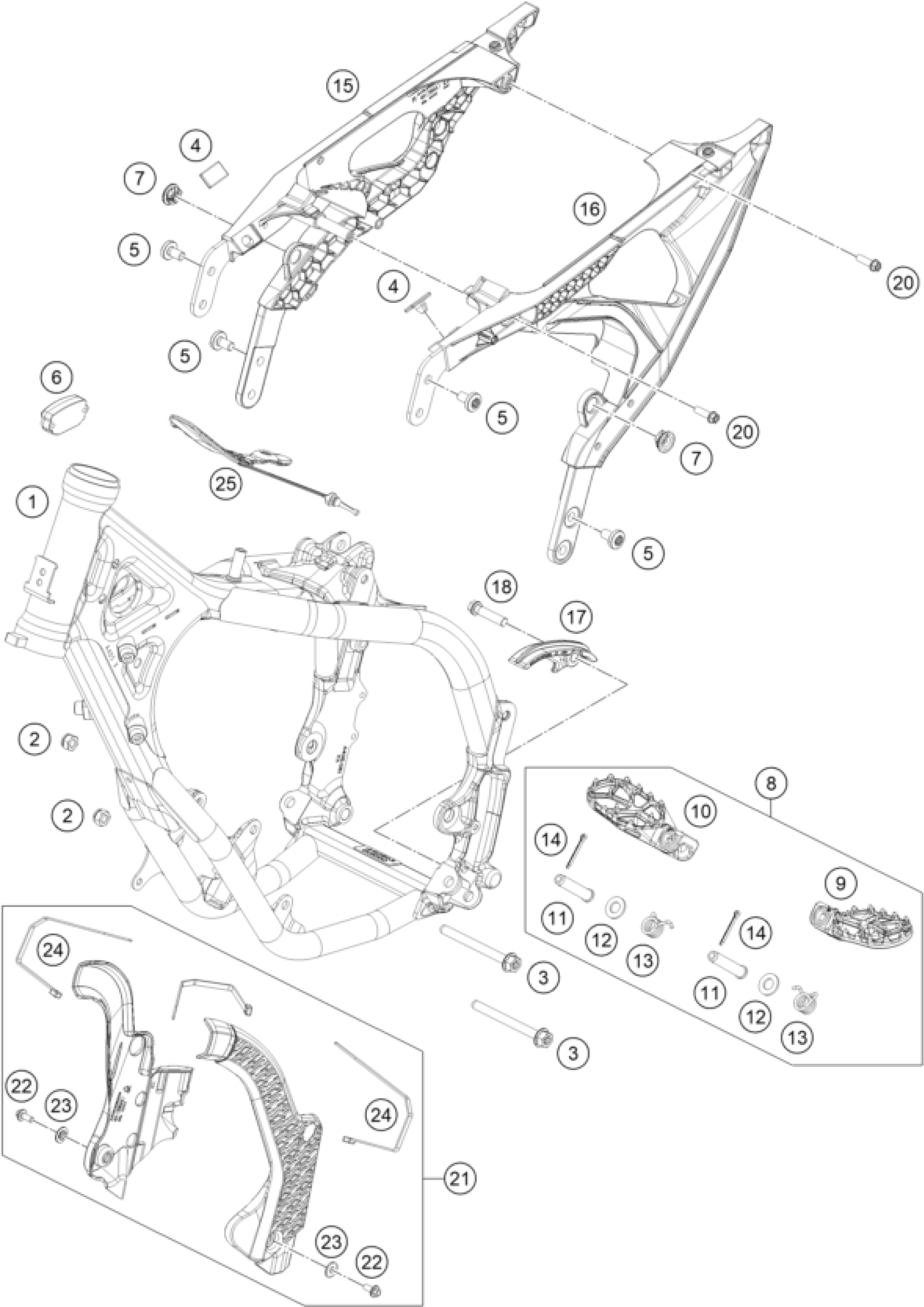

KTM 65 SX 2024 FRAME Diagram
#
Description
Price
1
Frame
A40503001000EB
$597.46
2
self-locking nut M8 Cu
51010086100
$3.08
3
Hex screw EN 1665-M8x85-10.9
01665080856
$1.96
6
HOUR METER KTM
78112920000
$56.09
8
Footpeg set
A40503037033
$128.37
9
Footpeg left
A40003040000
$69.93
10
Footpeg right
A40003041000
$69.93
11
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
$12.43
12
washer DIN 125 A 10.5
0125100003
$2.05
13
Footrest spring right
A46003045000
$1.49
14
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
15
Subframe right
A40503002020
$83.58
5
Special screw M8x16 ISA45 self
09000008016U0
$1.49
17
Chain slider bottom
45303053000
$10.09
18
HH collar screw M8x30
0025080306
$3.08
16
Subframe left
A40503002010
$72.64
4
Isolation pad
77307040041
$2.05
20
HH collar screw M6x20 TX30
0025060206
$3.08
7
quick release rubber grommet
47106003160
$4.11
21
Frame protector set
A40503094000EB
$22.90
22
HH COLLAR SCREW M 5X12 WS=6
0014050123
$2.05
23
Bush f. frame protection 03
54803092060
$4.11
24
Cable tie 200/4.6mm black
44011076200
$1.49
25
Tank support rubber
A40507012000
$9.34
