Description

Price

1

HH NUT 14X1,25X7 WS=22

46030029000

$9.72

2

STOP DISK 15,2X25X1 MM

83061015000

$3.08

3

Primary gear

A40532023023

$74.70

5

Rotary shaft lip-type seal 30x

0760304774E

$12.05

6

NEEDLE BEAR.PISTONPIN 12X15X17

46030034000

$13.55

7

GROOVED BALL BEAR.20X52X15 NTN

46030082200

$22.71

8

woodruff key DIN 6888 4x5x13

0888040050

$4.11

9

Crankshaft

A40530018000

$435.33

10

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

11

SEAL SHAFT RING 20X35X6 BTSL

47030076100

$21.50

14

CONNECT. ROD REPAIR SET

46230015000

$284.51

15

Piston cpl. I

46230007100 I

Unavailable

15

Piston cpl. II

46230007100 II

Unavailable

16

Piston pin

46230033100

$14.11

17

CIRCLIP 09

45230074000

$2.05

18

PISTON RING 45MM 65CCM

46030030500

$47.58

99

Crankshaft Bearing Repair Kit

A40530018010

Unavailable

4

O-RING 20X2 VITON

0770020020

$4.11

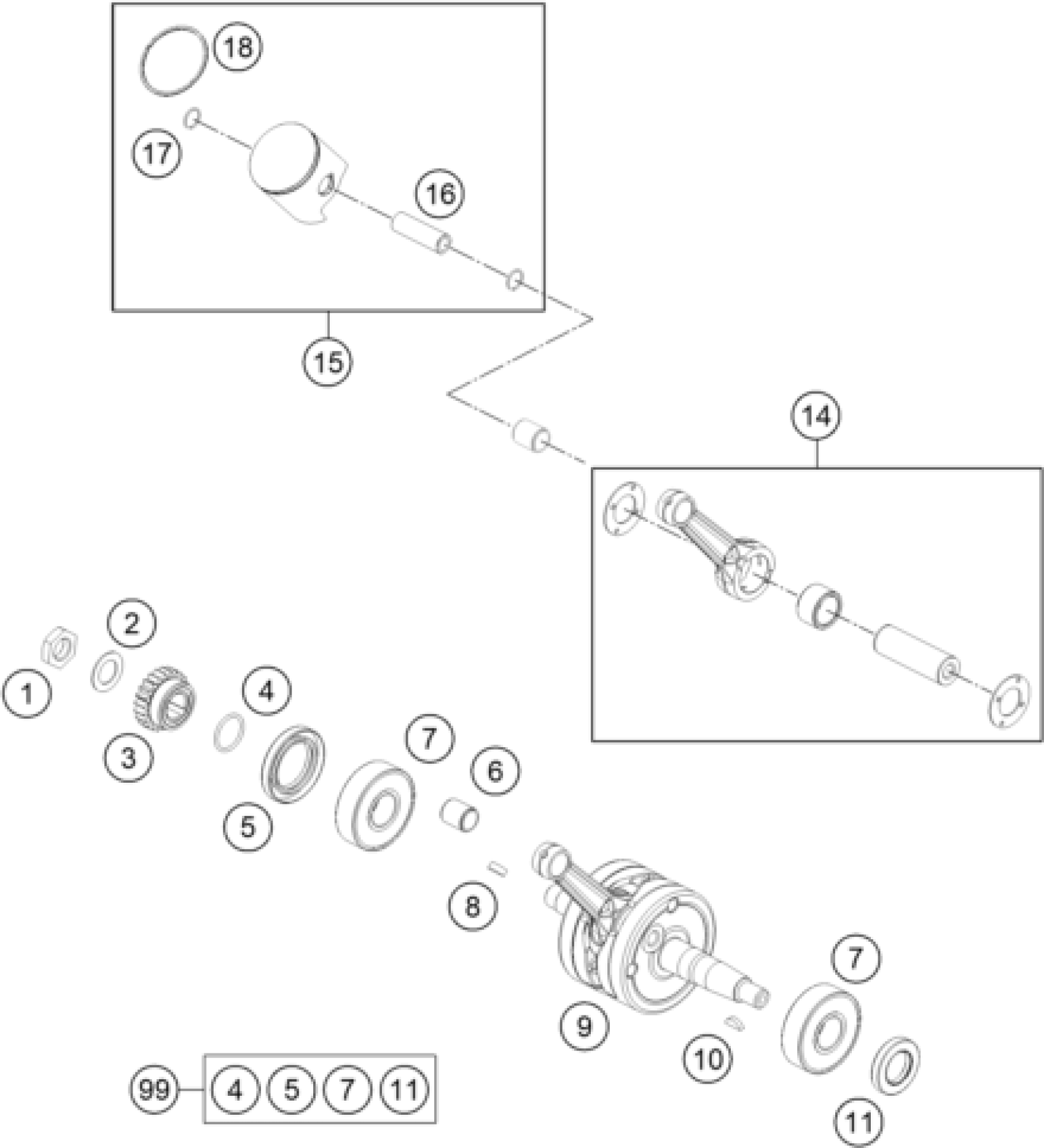

KTM 65 SX 2024 CRANKSHAFT, PISTON Diagram

HH NUT 14X1,25X7 WS=22

STOP DISK 15,2X25X1 MM

Primary gear

Rotary shaft lip-type seal 30x

NEEDLE BEAR.PISTONPIN 12X15X17

GROOVED BALL BEAR.20X52X15 NTN

woodruff key DIN 6888 4x5x13

Crankshaft

WOODRUFF KEY DIN6888-3X5X13

SEAL SHAFT RING 20X35X6 BTSL

CONNECT. ROD REPAIR SET

Piston cpl. I

Piston cpl. II

Piston pin

CIRCLIP 09

PISTON RING 45MM 65CCM

Crankshaft Bearing Repair Kit

O-RING 20X2 VITON
