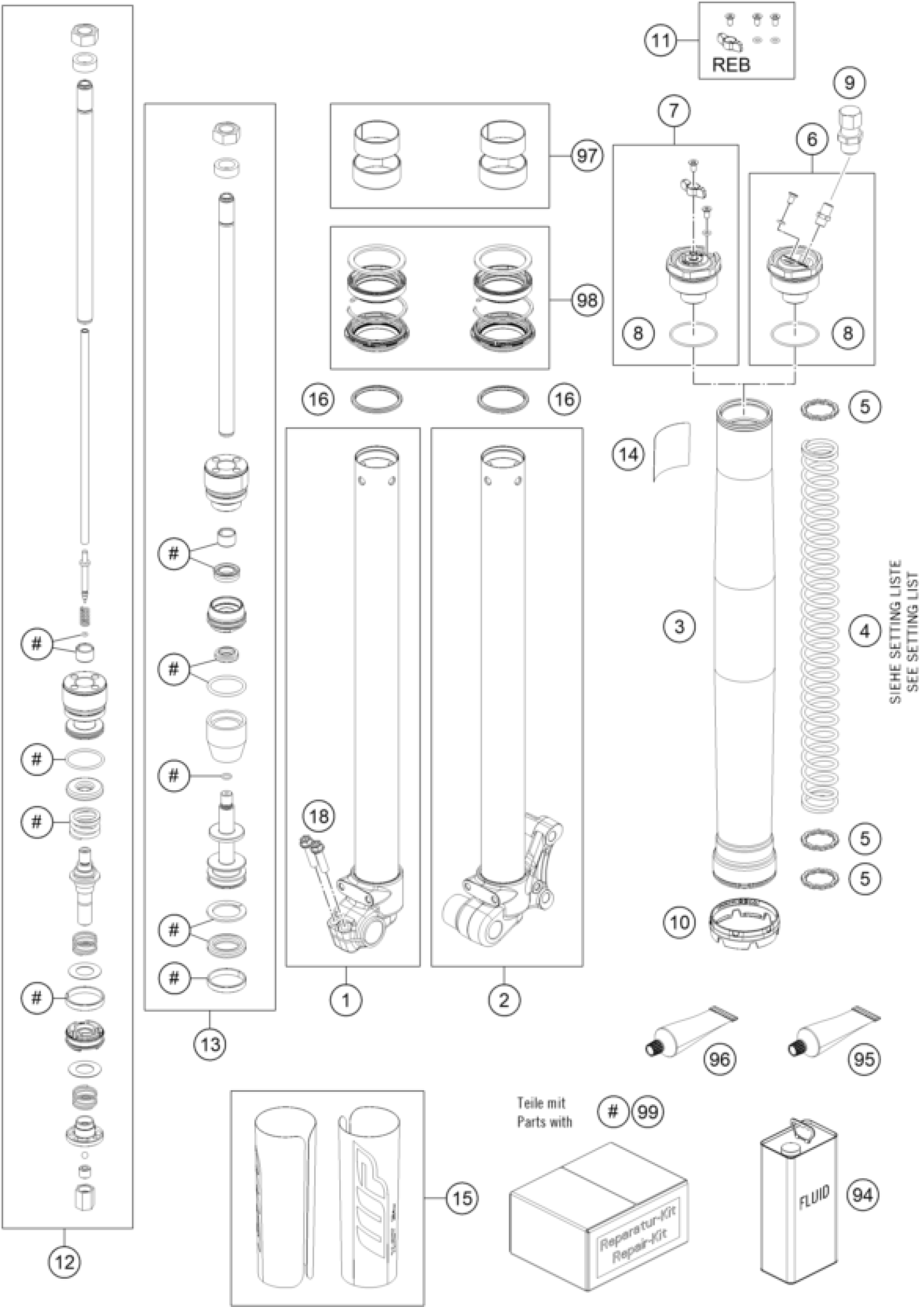

KTM 65 SX 2020 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

AXLE CLAMP KTM 65SX R/S. CPL.

35480455S4

$326.87

2

AXLE CLAMP KTM 65SX L/S CPL.

35480466S3

$326.87

3

Fork outer tube 36x465 dt44 db

35480564

$211.11

4

SPRING 2,8N/MM D3,6 SET

95010044S

$130.89

5

Washer 22x30x2,5

35480497

$1.49

6

screw cap M38x1,5 air cpl.

35480591S

$80.96

7

Screw cover M38x1,5 cmpl.

35480592S

$79.47

8

O-ring 35x1,5 NBR70 yellow

46180581

$2.05

9

Schrader valve M8x1 cmpl.

48601494S

$24.98

11

Adjuster kit screw cap

RP10021

$5.70

12

Piston rod cmpl. right

35480546S3

$237.95

13

Piston rod cmpl. left

35480546S4

$212.70

94

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

96

special grease AER Fork 400g

00062010053

Unavailable

97

BUSHING KIT 35MM

RP10006

Unavailable

98

gasket kit 35mm black

RP10027

Unavailable

99

REPAIR KIT 50+65SX AIR 2017

RP10008

Unavailable

14

Sticker warning 40x40

52000271

$24.02

15

Sticker set XACT AER 142x171

52000227SET

$33.46

16

Stroke indicator d35 red

35480583

$4.11

18

HH collar screw M6x25 TX30

0025060256

$3.08

95

Fuchs grease IPR (250g)

T14034

Unavailable

4

SPRING 3,0 N/MM SET

95010057S

Unavailable

10

Fork protection ring 48,4mm

35480623

$2.05
