Description

Price

1

Front wheel 65SX 2018

46309001144

$590.63

2

FRONT WHEEL HUB CPL. 65SX 2012

46209010044

$179.43

3

DISTANCE BUSHING FRONT 65SX

46209012000

$13.64

5

BEARING SPACER TUBE

46009011100

$18.60

9

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

23

Rim band 14"

46009073000

$7.66

30

Front rim 1,6x14"

4620907010033

$219.06

31

SPOKE NIPPLE ALU

46210072000

$2.05

36

BRAKE DISC FRONT 65 SX 2012

46209060100

$114.34

40

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

41

Self locking nut M6 - 10

56509064100

$2.05

42

SPOKE 3X148 C.165° C.3,3

46209071148

$3.08

43

SPOKE 3X150 C.166° C.2,6

46209071150

$3.08

44

AXLE FRONT

45209081000

$65.82

45

Plug SFL16

50210086000

$3.08

46

HH COLLAR SCREW M10X20 WS=17

49032011000

$5.88

47

Rim lock 2004

45110090000

$31.03

48

NUT FOR WHEEL HOLDER

77110090050

$5.23

98

FRONT WHEEL REP. KIT 65 SX

46209015000

Unavailable

99

SPOKE KIT FRONT 14'' '12

00050000918

Unavailable

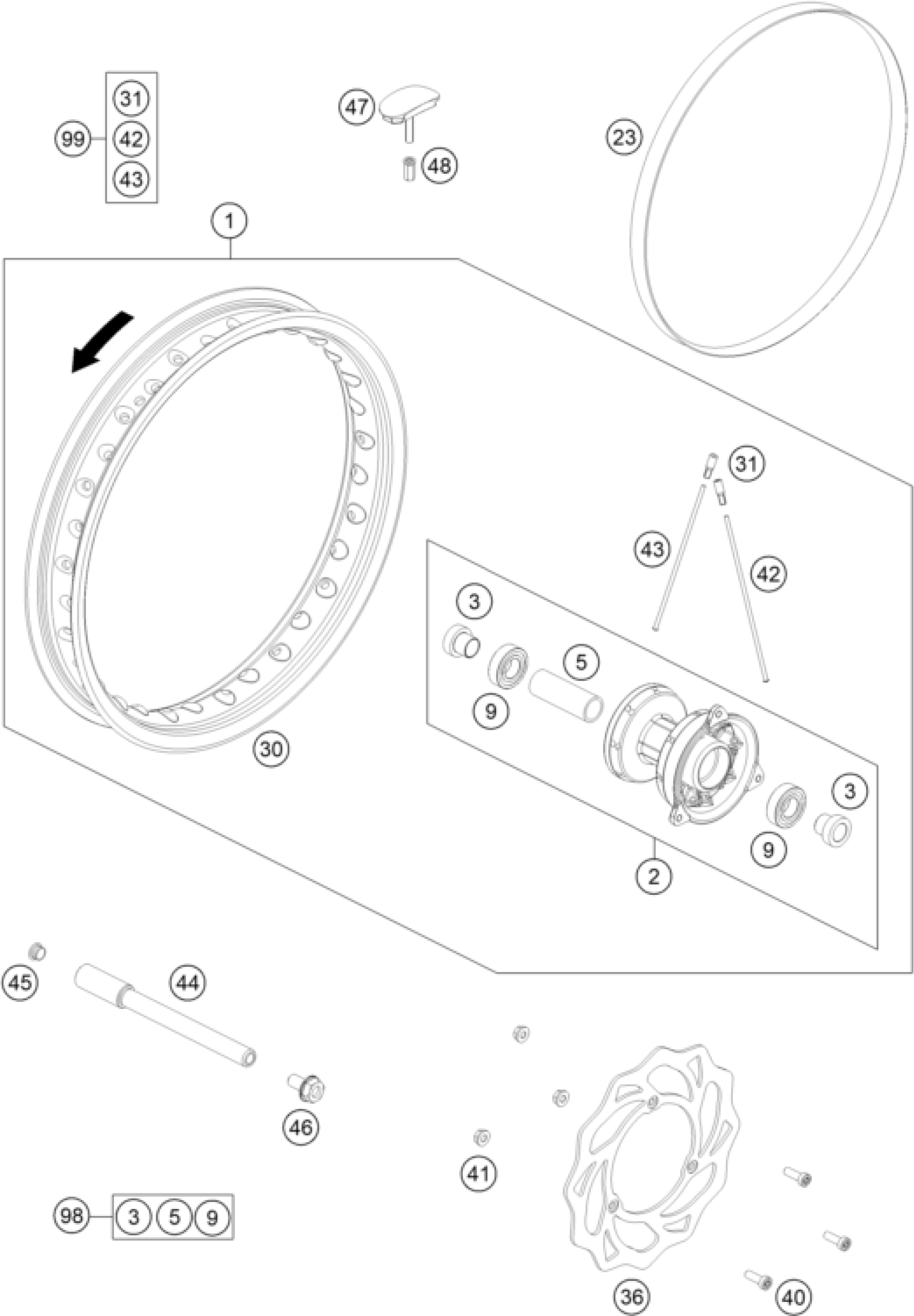

KTM 65 SX 2019 FRONT WHEEL Diagram

Front wheel 65SX 2018

FRONT WHEEL HUB CPL. 65SX 2012

DISTANCE BUSHING FRONT 65SX

BEARING SPACER TUBE

GR.BALL BEAR. 6003-2RSH/C3HMTF

Rim band 14"

Front rim 1,6x14"

SPOKE NIPPLE ALU

BRAKE DISC FRONT 65 SX 2012

SPECIAL SCREW M6X16 WS=8 10.9

Self locking nut M6 - 10

SPOKE 3X148 C.165° C.3,3

SPOKE 3X150 C.166° C.2,6

AXLE FRONT

Plug SFL16

HH COLLAR SCREW M10X20 WS=17

Rim lock 2004

NUT FOR WHEEL HOLDER

FRONT WHEEL REP. KIT 65 SX

SPOKE KIT FRONT 14'' '12
