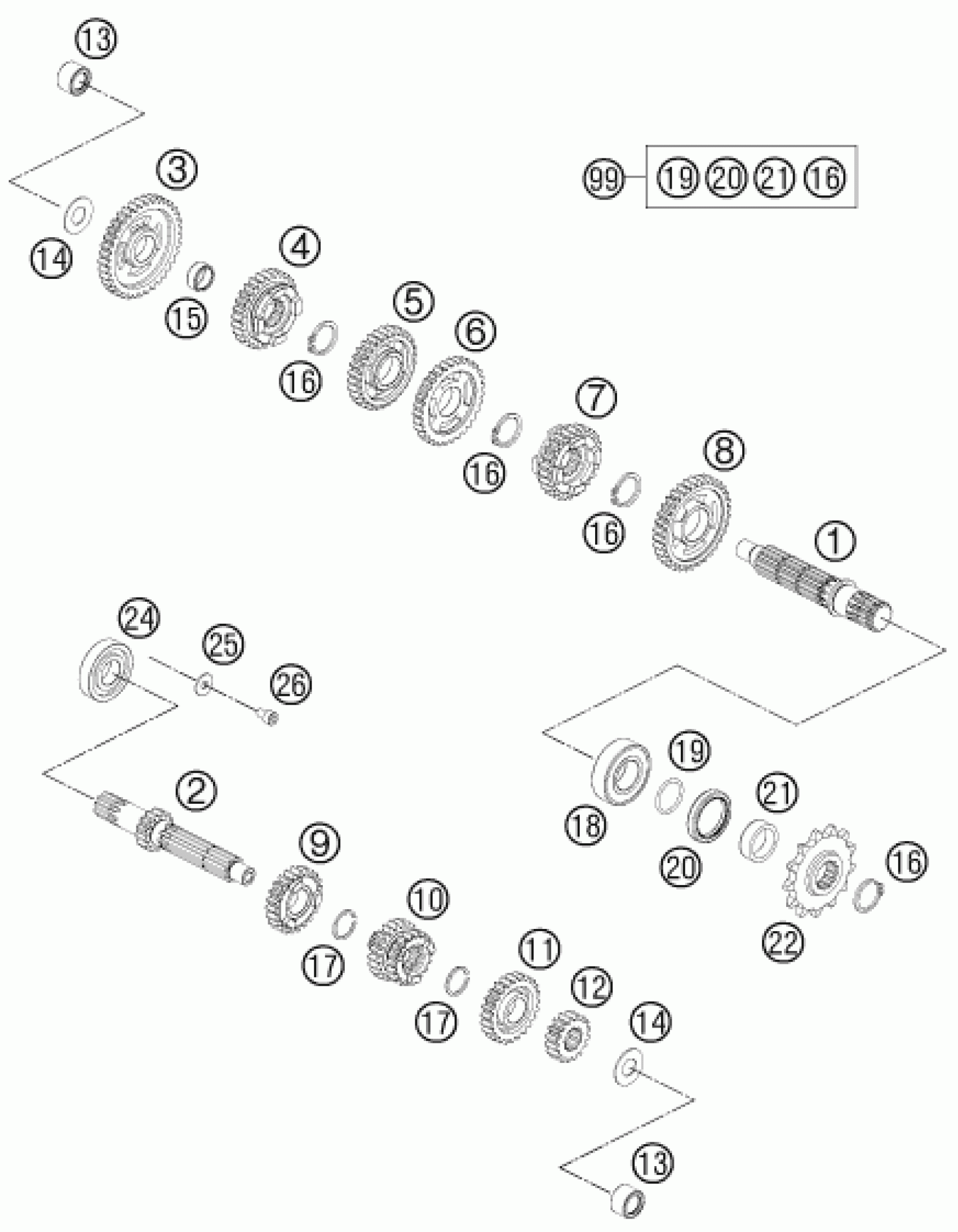

KTM 65 SX 2016 TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT

46233010000

$95.55

2

MAIN SHAFT 13-T

46233001000

$112.19

3

IDLER GEAR 1.G.

46233011000

$75.35

4

SLIDING GEAR 5.G.

46233015000

$67.40

5

IDLER GEAR 4.G

46233014000

$25.14

6

IDLER GEAR 3.G

46233013100

$81.80

7

SLIDING GEAR 6.G.

46233016000

$78.81

8

IDLER GEAR 2.G

46233012000

$81.52

9

IDLER GEAR 5.G.

46233005000

$51.70

10

SLIDING GEAR 3/4. G

46233003000

$102.00

11

IDLER GEAR 6.G.

46233006000

$54.50

12

SOLID GEAR 2.G

46233002000

$30.85

13

NEEDLE BUSH NK1212

0618121912

$20.09

14

STOP DISK 12,1X25X1

49033013000

$4.11

15

NEEDLE BEARING 14X18X8

46033020000

$18.41

16

CIRCLIP AS20X1,75

49033091000

$4.11

17

LOCK RING

46233022000

$1.49

18

Grooved ball bearing 20X42X12

46033028000

$38.42

19

O-RING 20X2 VITON

0770020020

$4.11

20

SHAFT SEAL RING 26X35X6BSL NB

0760263561

$6.26

21

DISANCESPACER F. SPROCKET

46233030000

$13.74

22

CHAIN SPROCKET 14-T.

46233029014

$33.93

22

CHAIN SPROCKET 13-T.

46233029013

Unavailable

24

BALL BEARING 98203 KSE C3

0625982030

$20.84

25

washer DIN 9021 A - 5.3

0021050003

$1.49

26

SHCS DIN 912 M5x8

0912050083

$1.49

99

COUNTER SHAFT REP.KIT 65 SX

00050000947

Unavailable
