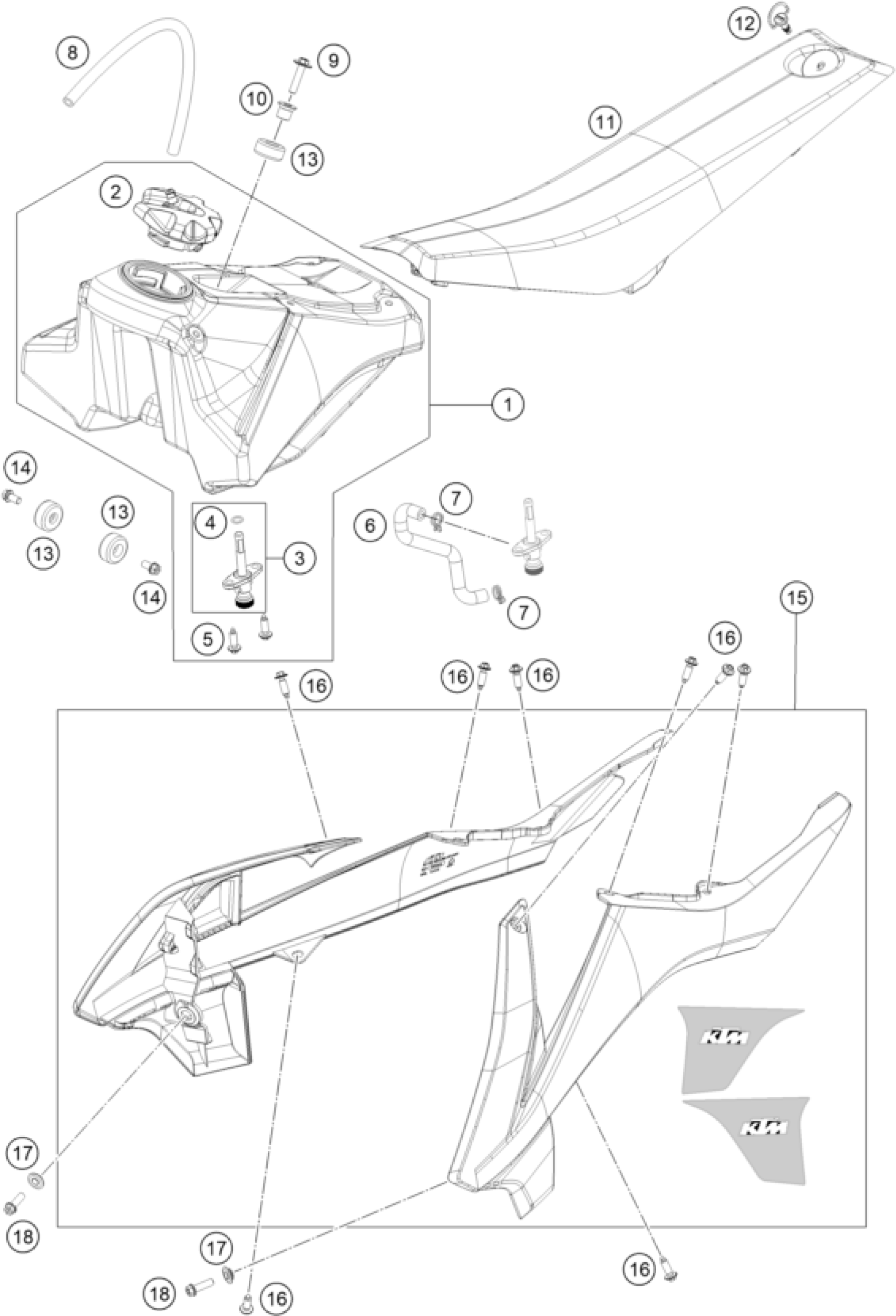

KTM 65 SX 2016 TANK, SEAT Diagram

Fuel cock cmpl.

58507003200

$26.55

FUEL TANK CPL. 3L 2016

4630701303330

$219.62

TANK PLUG CPL. 14

78107008044X4

$29.07

O-RING 1,78x10,82x14,38 2-013

0770020130

$2.05

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

FUEL HOSE 65SX 2016

46307016000

$17.10

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

PVC-hose 5.6X10X270MM

78007000270

$2.61

COLLAR SCREW M6X27 TX

0024060273

$3.08

TANK BUSHING 07

77307026000

$4.11

SEAT

46307040000

$93.02

Quick lock

45007040051

$20.19

TANK ROLLER 12X26X12 '98

50307014000

$11.02

HH collar screw M6x12 TX30

0025060126

$3.08

SPOILER SET 65 SX 2016

46308054000EBA

$83.21

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

HH collar screw M6x20 TX30

0025060206

$3.08
