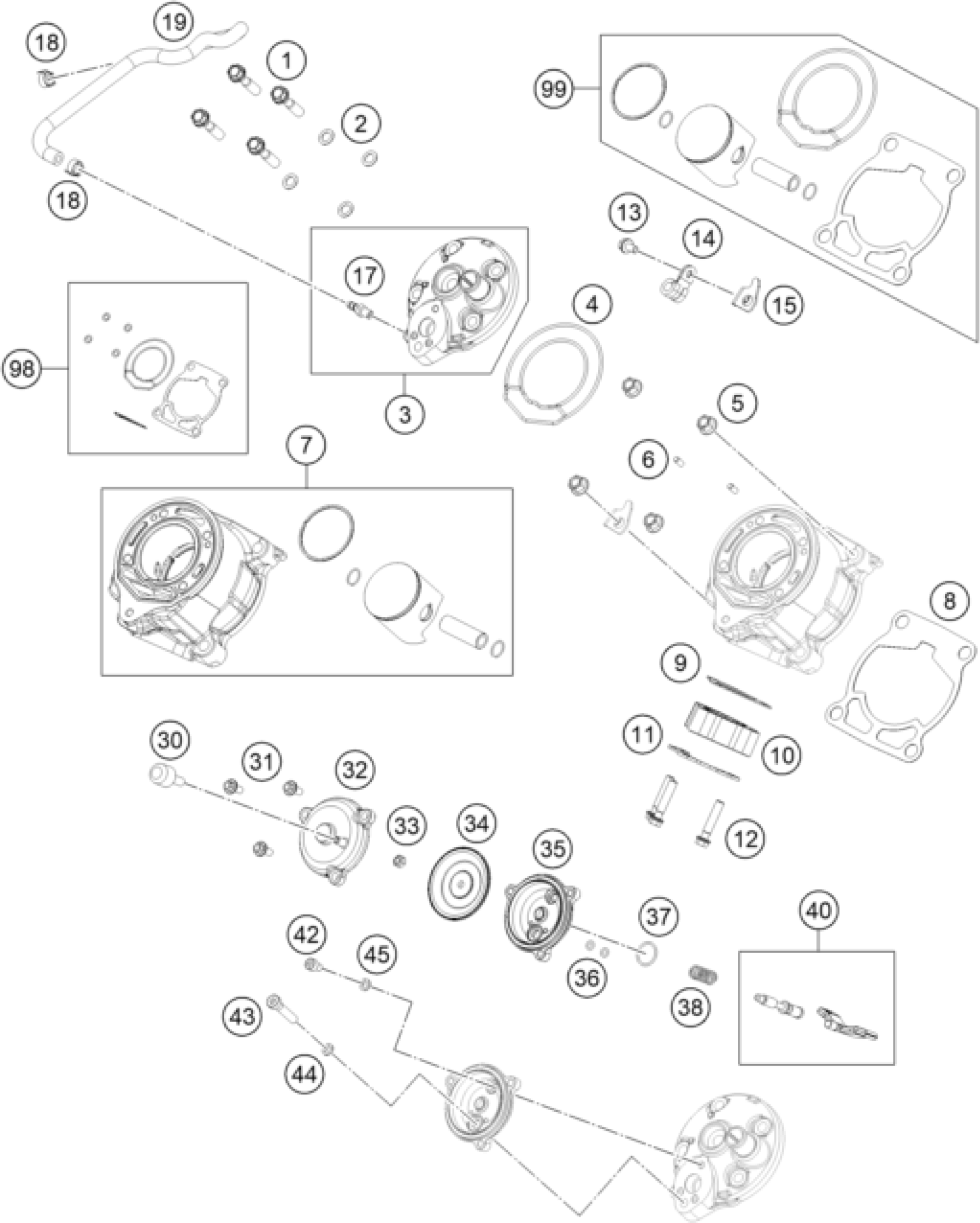

KTM 65 SX 2016 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

98

GASKET SET CYL. 65 SX 13-14

46230097000

Unavailable

1

CYL. HEAD BOLT M 7X30 WS=10

50330079000

$3.08

2

CU-SEAL RING DIN7603- 7,3X12X1

0603070121

$1.49

3

CYLINDER HEAD

46230006000

$142.86

4

CYLINDER HEAD GASKET

45230036000

$4.11

5

flanged nut M8 WS10

46030045000

$7.85

6

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

7

CYLINDER + PISTON

46230038000

$490.87

8

CYLINDER BASE GASKET 0,2 MM

46230035020

Unavailable

8

CYLINDER BASE GASKET 0,4 MM

46230035040

Unavailable

8

CYLINDER BASE GASKET 0,5 MM

46230035050

Unavailable

8

CYLINDER BASE GASKET 0,6MM

46230035060

Unavailable

9

EXHAUST PIPE FLANGE GASKET

46205004000

$8.41

10

EXHAUST FLANGE

46205003000

$24.11

11

BRACKET FOR SPRINGHOLDER

46205003050

$15.33

12

HH collar screw M6x30 TX30

0025060306

$3.08

13

HH collar screw M5x10 TX30

0025050106

$1.49

14

BRAKE CABLE CLAMP RSGU 9/12

45001070000

$5.23

15

RETAINING PLATE CLUTCHHOSE

46332060050

$13.36

17

VACUUM CONECTION M6/3MM '97

58336020190

$5.23

18

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

19

Hose, exhaust control

46337014000

$46.09

30

VENTILATION CPL.

46237036044

$11.12

31

HH COLLAR SCREW M 5X16 WS=6

0014050163

$2.05

32

CLOSING COVER

46237035000

$15.61

33

Self locking nut DIN 985 M5

0985050003

$2.05

34

MEMBRANE

46237013000

$43.75

35

FLANGE EXHAUST CONTROL

46237011000

$30.85

36

O-RING 3,00X1,50 NBR 70

0770030015

$1.96

37

O-RING 15,00X1,50 VITON

0770150151

$3.08

38

ADJ. SPRING - EXHAUST CONTROL

46237074100

$3.08

40

CONTROL SLIDE CPL.

46237020144

$65.25

42

SHCS DIN 912 M5x8

0912050083

$1.49

43

AH SCREW DIN6912 M6X30 8.8

0012060303

$1.49

44

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

45

COPPERT GASKET 5X9X1

0603050901

$2.05

99

PISTON KIT GR.I 65 SX/TC

00050000202

Unavailable

99

PISTON KIT GR.II 65 SX/TC

00050000203

Unavailable
