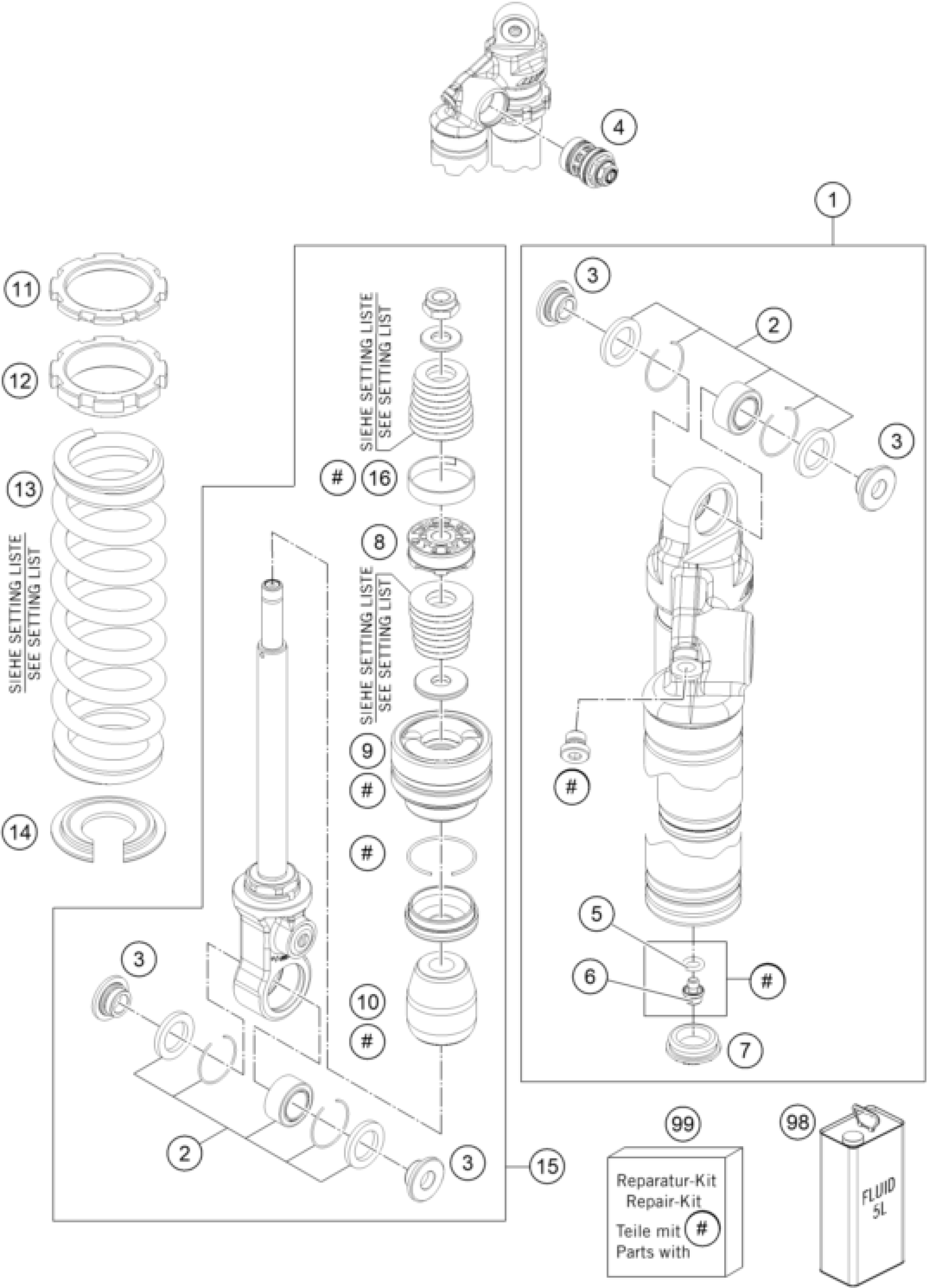

KTM 65 SX 2015 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

13

SHOCK SPRING 40N/mm - 210mm

93010208S

Unavailable

13

SHOCK SPRING 45N/mm - 210mm

93010209S

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

$149.59

1

MONOSHOCK TOP PART CPL.

36120846S1

$444.02

2

BEARING KIT KGW 1525 990DUKE

R15009

$35.71

3

Distance bush 10x15/18/24,5x9,

46180009

$4.11

4

DCC-COMPR.DAMP.CONTROL CPL. 15

50180213S25

$80.69

5

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

6

HS lock screw M5x6

36120151

$1.86

7

Rubber cap do not open 22x5,5

46811208

$3.08

8

Piston 10,5x35,6x13,65 3,5/5,5

36120071

$61.70

9

Sealholder 36x26,6 cpl.

36120787S

$76.76

10

Rubber pad 13,9x38x43 black

36120799

$12.89

11

Lock nut shock M44x1,5

36120015

$30.75

12

Adjustment nut shock M44x1,5

36120418

$45.71

13

SHOCK SPRING 35N/mm - 210mm

93010207S

Unavailable

14

Spring retainer 27x57x2

36120386

$27.01

15

MONOSHOCK LOWER PART CPL.

36120781S12

$337.25

99

REPAIR KIT

R12023

$65.07

16

Pistonring 33x35x8

36120040

$6.91
