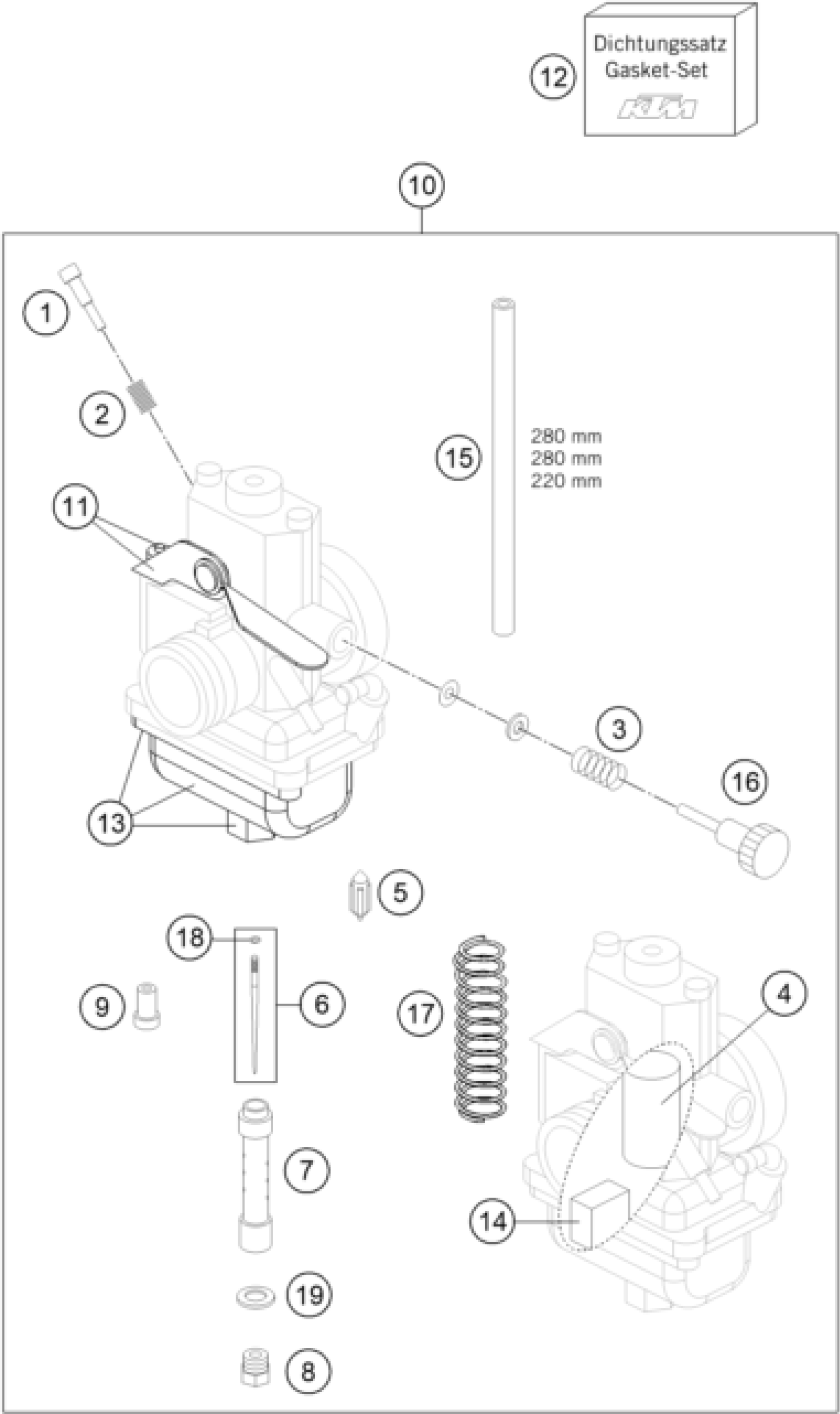

KTM 65 SX 2015 CARBURETOR Diagram

#

Description
Price

1

ADJUSTING SCREW MIKUNI

46131017000

$9.90

2

SPRING IDLE ADJUST SCREW

45031015200

$4.11

3

SPRING

45031015000

$5.23

4

THROTTLE VALVE MIKUNI 2.5

46231035000

$135.38

5

NEEDLE VALVE CPL. 2.5

46231020100

$54.88

6

JET NEEDLE MIKUNI 5IPL43-2

46231034000

$18.04

7

MAIN JET HOLDER MIKUNI

46231034100

$33.93

8

MAIN JET 195

45031023195

Unavailable

8

MAIN JET 200

45031023200

Unavailable

8

MAIN JET 205

45031023205

Unavailable

8

MAIN JET 210

45031023210

Unavailable

8

MAIN JET 215

45031023215

Unavailable

8

MAIN JET 220

45031023220

Unavailable

8

MAIN JET 225

45031023225

Unavailable

8

MAIN JET

45031023230

Unavailable

9

IDLE JET 10 MIKUNI

45031007010

Unavailable

9

IDLING JET 15 MIKUNI

45031007015

Unavailable

9

IDLING JET 20 MIKUNI

45031007020

Unavailable

9

IDLING JET 25 MIKUNI

45031007025

Unavailable

9

IDLING JET

45031007000

Unavailable

10

CARBURETOR 65 SX 2011

46231001144

$358.98

11

CHOKE + LEVER CPL.

46231048044

$114.34

12

GASKET SET MIKUNI

46231099000

$44.03

13

FLOAT BODY + SCREW + GASKET

46231011044

$70.40

14

FLOAT + PIN

46231009044

$51.32

15

PVC-HOSE 3X5MM

52031137001

$5.23

16

ADJUSTER SCREW

46231094000

$12.33

17

THROTTLE VALVE SPRING

46231035050

$5.23

18

Lock ring

46231034060

$3.08

19

Washer

46231034050

$1.49
