CYLINDER, CYLINDER HEAD

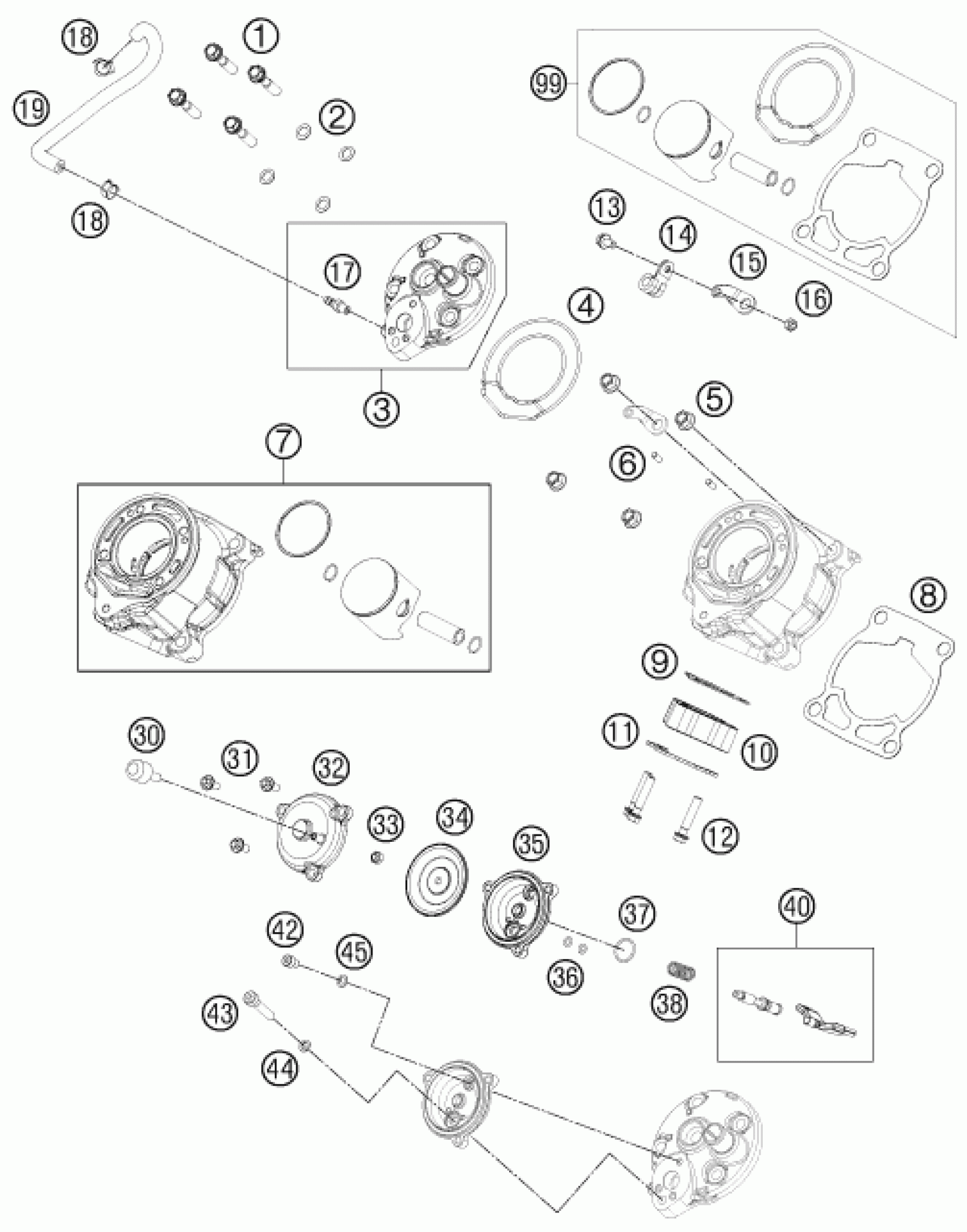

KTM 65 SX 2014 CYLINDER, CYLINDER HEAD Diagram
#
Description
Price
1
CYL. HEAD BOLT M 7X30 WS=10
50330079000
$3.08
2
CU-SEAL RING DIN7603- 7,3X12X1
0603070121
$1.49
3
CYLINDER HEAD
46230006000
$142.86
4
CYLINDER HEAD GASKET
45230036000
$4.11
5
flanged nut M8 WS10
46030045000
$7.85
6
Needle roll.DIN5402 NRB 4X9.8
0402040980
$3.08
7
CYLINDER + PISTON
46230038000
$490.87
8
CYLINDER BASE GASKET 0,2 MM
46230035020
Unavailable
8
CYLINDER BASE GASKET 0,4 MM
46230035040
Unavailable
8
CYLINDER BASE GASKET 0,5 MM
46230035050
Unavailable
8
CYLINDER BASE GASKET 0,6MM
46230035060
Unavailable
9
EXHAUST PIPE FLANGE GASKET
46205004000
$8.41
10
EXHAUST FLANGE
46205003000
$24.11
11
BRACKET FOR SPRINGHOLDER
46205003050
$15.33
12
HH collar screw M6x30 TX30
0025060306
$3.08
13
HH collar screw M5x10 TX30
0025050106
$1.49
14
BRAKE CABLE CLAMP RSGU 9/12
45001070000
$5.23
15
RETAINING PLATE CLUTCHHOSE
46232060050
$3.48
16
Self locking nut DIN 985 M5
0985050003
$2.05
17
VACUUM CONECTION M6/3MM '97
58336020190
$5.23
18
CLAMP YDNAC 10096F (9,6MM)
59007017000
$2.05
19
HOSE EXHAUST CONTROL
45237014100
$17.65
30
VENTILATION CPL.
46237036044
$11.12
31
HH COLLAR SCREW M 5X16 WS=6
0014050163
$2.05
32
CLOSING COVER
46237035000
$15.61
33
Self locking nut DIN 985 M5
0985050003
$2.05
34
MEMBRANE
46237013000
$43.75
35
FLANGE EXHAUST CONTROL
46237011000
$30.85
36
O-RING 3,00X1,50 NBR 70
0770030015
$1.96
37
O-RING 15,00X1,50 VITON
0770150151
$3.08
38
ADJ. SPRING - EXHAUST CONTROL
46237074100
$3.08
40
CONTROL SLIDE CPL.
46237020144
$65.25
42
SHCS DIN 912 M5x8
0912050083
$1.49
43
AH SCREW DIN6912 M6X30 8.8
0012060303
$1.49
44
CU-SEAL RING DIN7603-6X10X1
0603061001
$2.05
45
COPPERT GASKET 5X9X1
0603050901
$2.05
99
PISTON KIT GR.I 65 SX/TC
00050000202
Unavailable
99
PISTON KIT GR.II 65 SX/TC
00050000203
Unavailable
