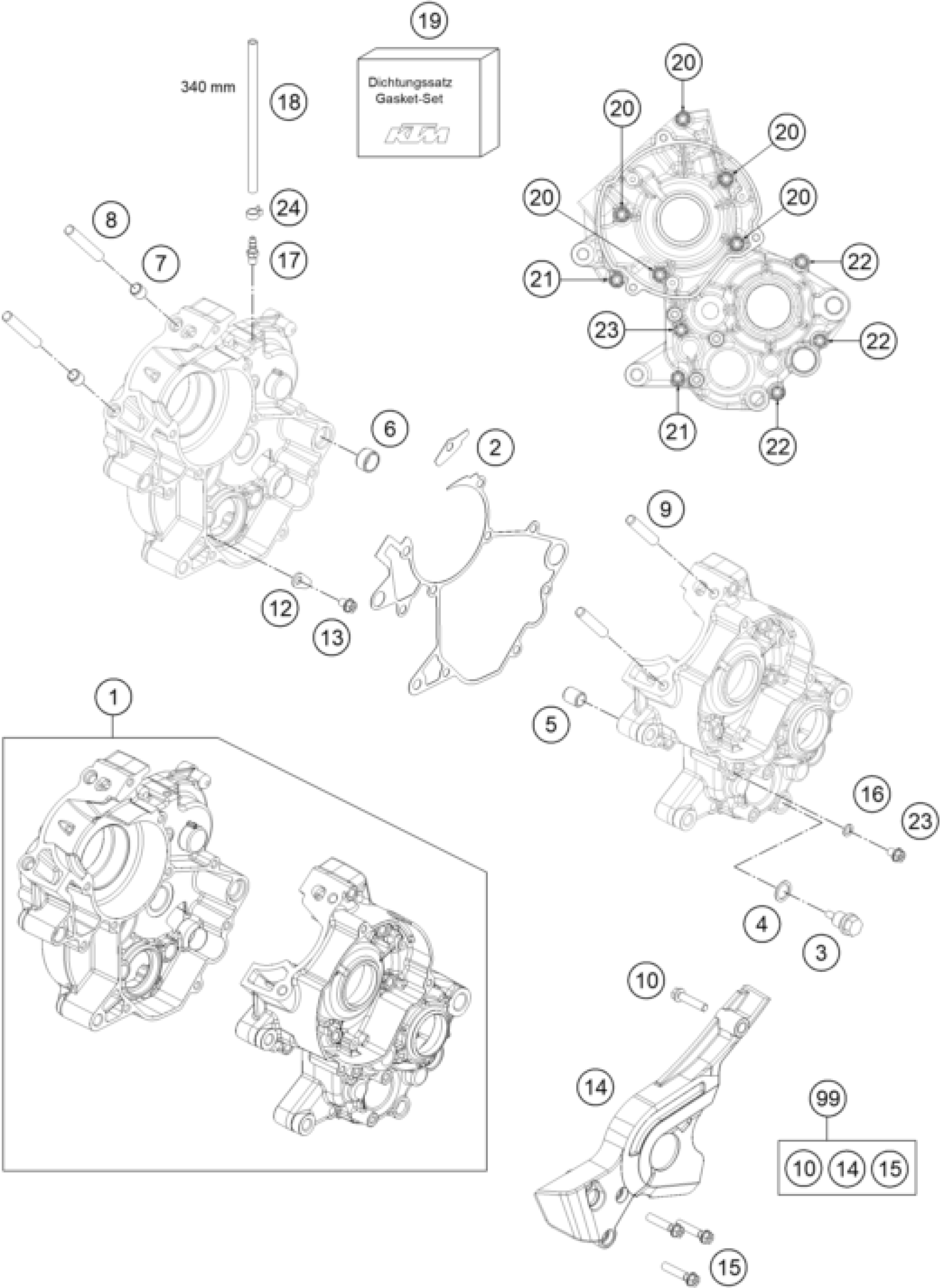

KTM 65 SX 2013 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL. + BEARING

46230000244

$787.26

2

ENGINE CASE GASKET

46230039000

$16.54

3

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

4

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

5

DOWEL 12X9X14,5

46230024000

$6.44

6

DOWEL 17/12.1/9.5

46230123000

$6.44

7

DOWEL 10X8,2X10

46230023000

$5.23

8

STUD DIN0835-M 8X35 10.9

0835080355

$3.08

9

STUD M8X41

46030043000

$5.79

12

RETAINING PLATE

54634049000

$4.11

13

Hex collar screw M6x10 ISA30 S

0025060106S

$1.49

14

CHAIN SPROCKET GUARD

46230060000

$23.55

15

HH collar screw M6x30 TX30

0025060306

$3.08

16

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

17

VACUUM CONECTION M6/3MM '97

58336020190

$5.23

18

PVC-HOSE 4X6MM

31007007101

$4.11

19

GASKET SET 65 SX 2009

46230099000

$159.32

20

HH collar screw M6x55 TX30

0025060556

$3.08

21

HH collar screw M6x40 TX30

0025060406

$3.08

22

HH collar screw M6x30 TX30

0025060306

$3.08

23

HH collar screw M6x8 TX30

0025060086

$2.05

24

YDNAC-CLAMP 10068 (6,8MM)

45230089000

$1.49

99

SPROCKET COVER KIT

46204060010

$29.16

10

HH collar screw M8x35 TX40

0025080356

$4.11
