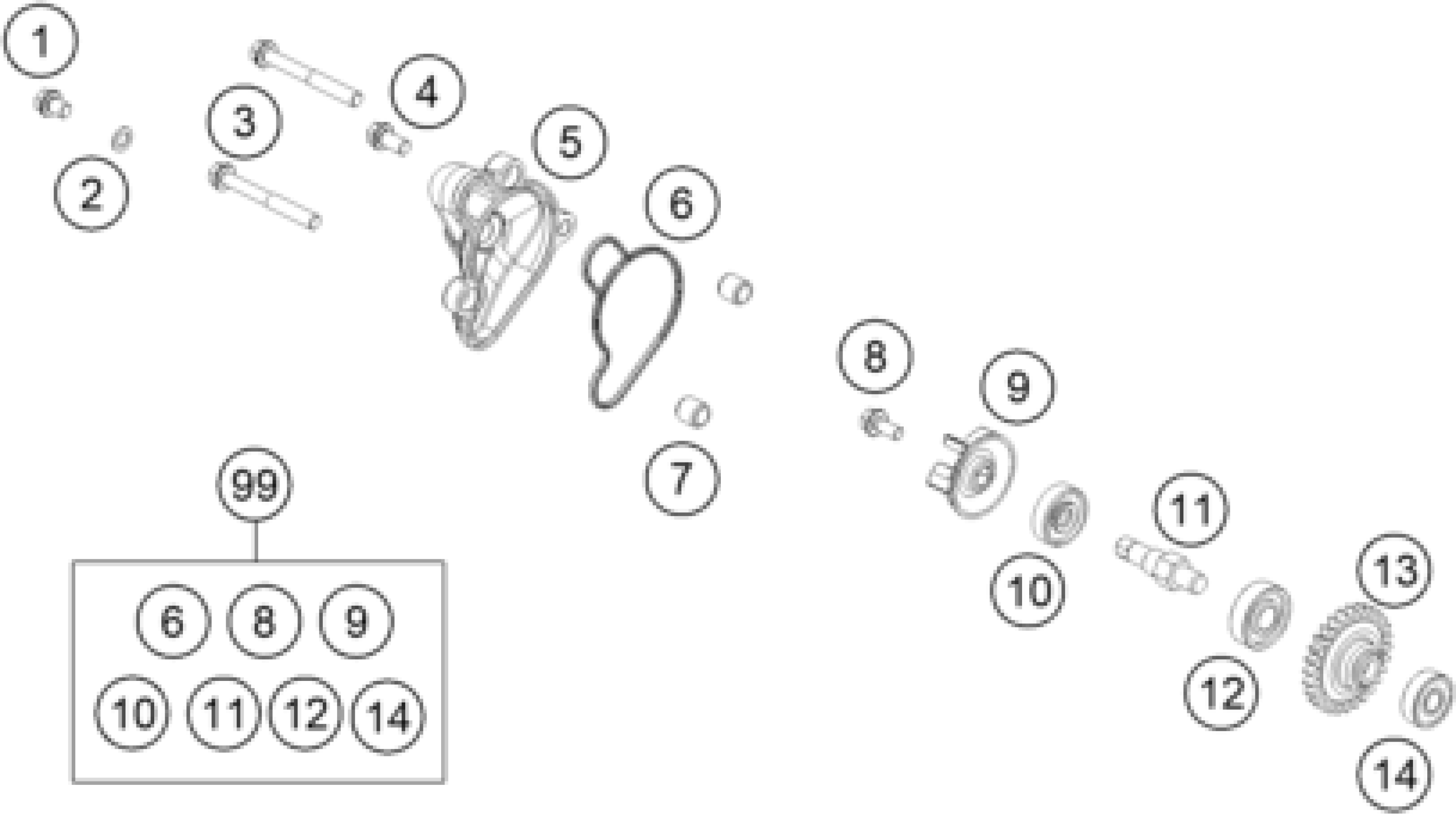

KTM 65 SX 2012 WATER PUMP Diagram

HH collar screw M6x8 TX30

0025060086

$2.05

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

HH collar screw M6x50 TX30

0025060506

$3.08

HH collar screw M6x12 TX30

0025060126

$3.08

Water pump cover

45235052000

$41.04

WATER PUMP COVER GASKET

45235053000

$21.50

DOWEL 9,8 X 7 X 10

49030090000

$2.05

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

WATER PUMP WHEEL 07

54835005000

$4.11

SHAFT SEAL RING 8X24X7 A DUO

0760082472

$7.66

WATER PUMP SHAFT

50335054150

$18.60

BALL BEARING 6000/C3

0625060001

$13.83

DRIVE WHEEL

45235054028

$7.10

Grooved ball bearing 608 2RS C

0625006087

$21.40

WATER PUMP REP. KIT 50/65 SX

54835055010

$99.38
