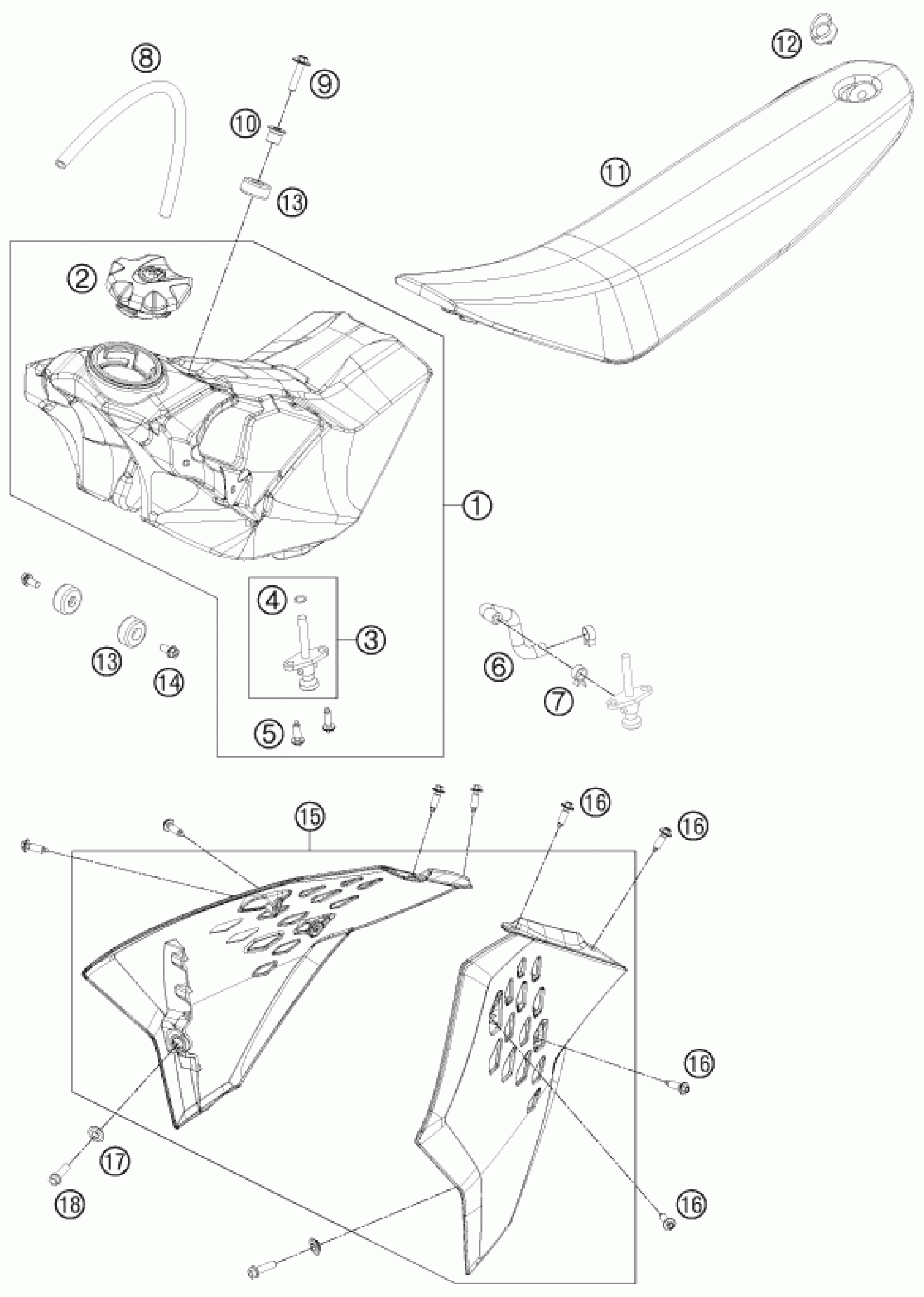

KTM 65 SX 2012 TANK, SEAT Diagram

FUEL TANK CPL. 65 SX 2009

4620701303330

$117.64

TANK PLUG ORANGE/BLACK

78007008044X4

$29.07

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

O-RING 1,78x10,82x14,38 2-013

0770020130

$2.05

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

FUEL PREFORMED HOSE 65 SX 2009

46207016000

$8.41

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

PVC-hose 5.6X10X270MM

78007000270

$2.61

COLLAR SCREW M6X27 TX

0024060273

$3.08

TANK BUSHING 07

77307026000

$4.11

SEAT 65 SX 2009

46207040000

$106.21

Quick lock

45007040051

$20.19

TANK ROLLER 12X26X12 '98

50307014000

$11.02

HH collar screw M6x12 TX30

0025060126

$3.08

SPOILERSET 65 SX 2012

4620805400004A

$70.23

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

HH collar screw M6x20 TX30

0025060206

$3.08
