Description

Price

1

CLUTCH COVER OUTSIDE

4623002600015

$87.79

2

GASKET - CLUTCH OUTER COVER

46230027000

$7.38

3

RETAINING PLATE

51005074000

$3.08

4

oil plug cpl. M24x3

58030020100

$5.23

5

O-RING 19,00X3,00 NBR

0770191015

$2.05

6

INNER CLUTCH COVER

46230001100

$82.27

7

DOWEL 9,8 X 7 X 10

49030090000

$2.05

8

GASKET - CLUTCH INNER COVER

46230025100

$15.33

20

HH collar screw M6x25 TX30

0025060256

$3.08

21

HH collar screw M6x20 TX30

0025060206

$3.08

22

HH collar screw M6x55 TX30

0025060556

$3.08

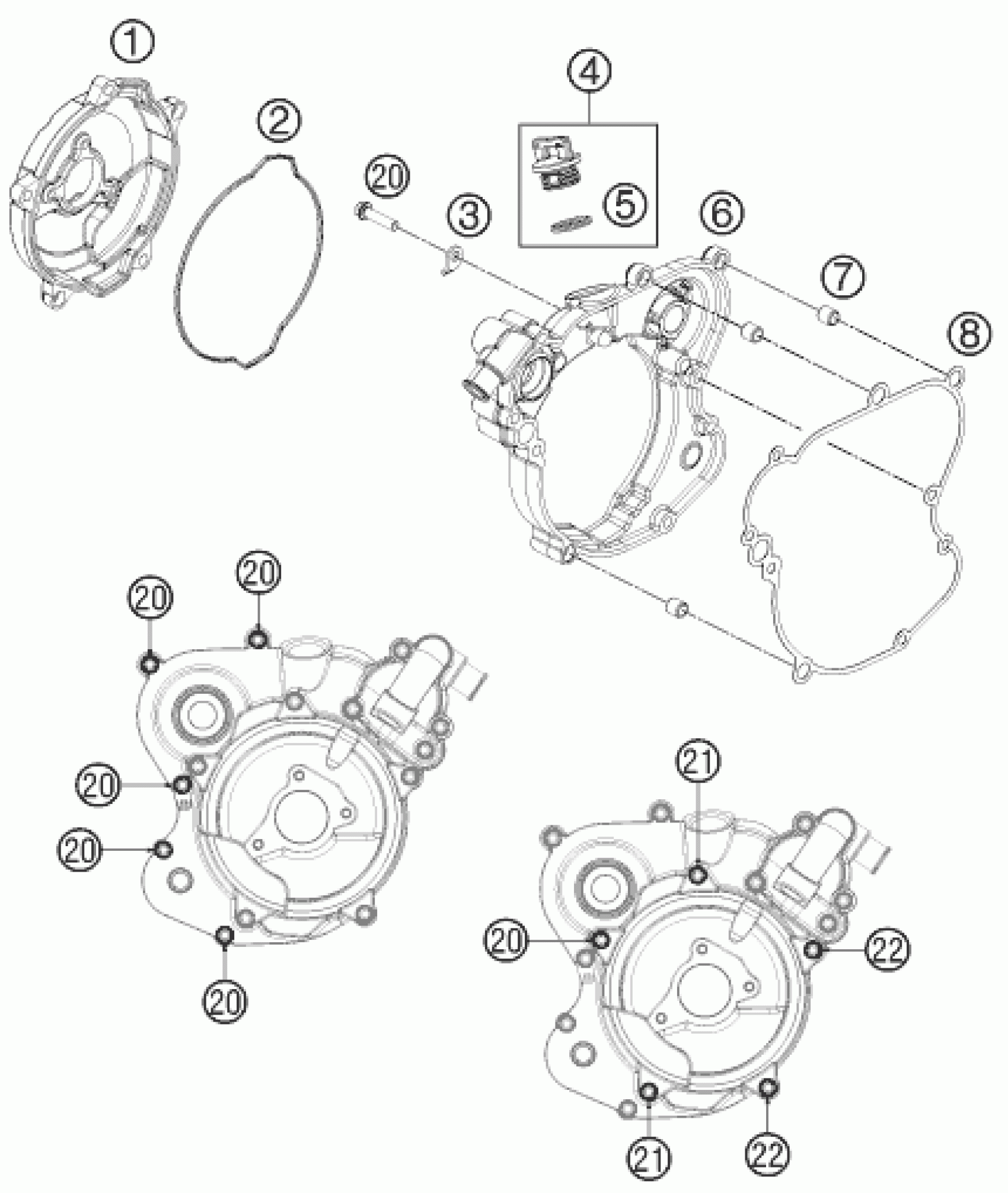

KTM 65 SX 2012 CLUTCH COVER Diagram

CLUTCH COVER OUTSIDE

GASKET - CLUTCH OUTER COVER

RETAINING PLATE

oil plug cpl. M24x3

O-RING 19,00X3,00 NBR

INNER CLUTCH COVER

DOWEL 9,8 X 7 X 10

GASKET - CLUTCH INNER COVER

HH collar screw M6x25 TX30

HH collar screw M6x20 TX30

HH collar screw M6x55 TX30
