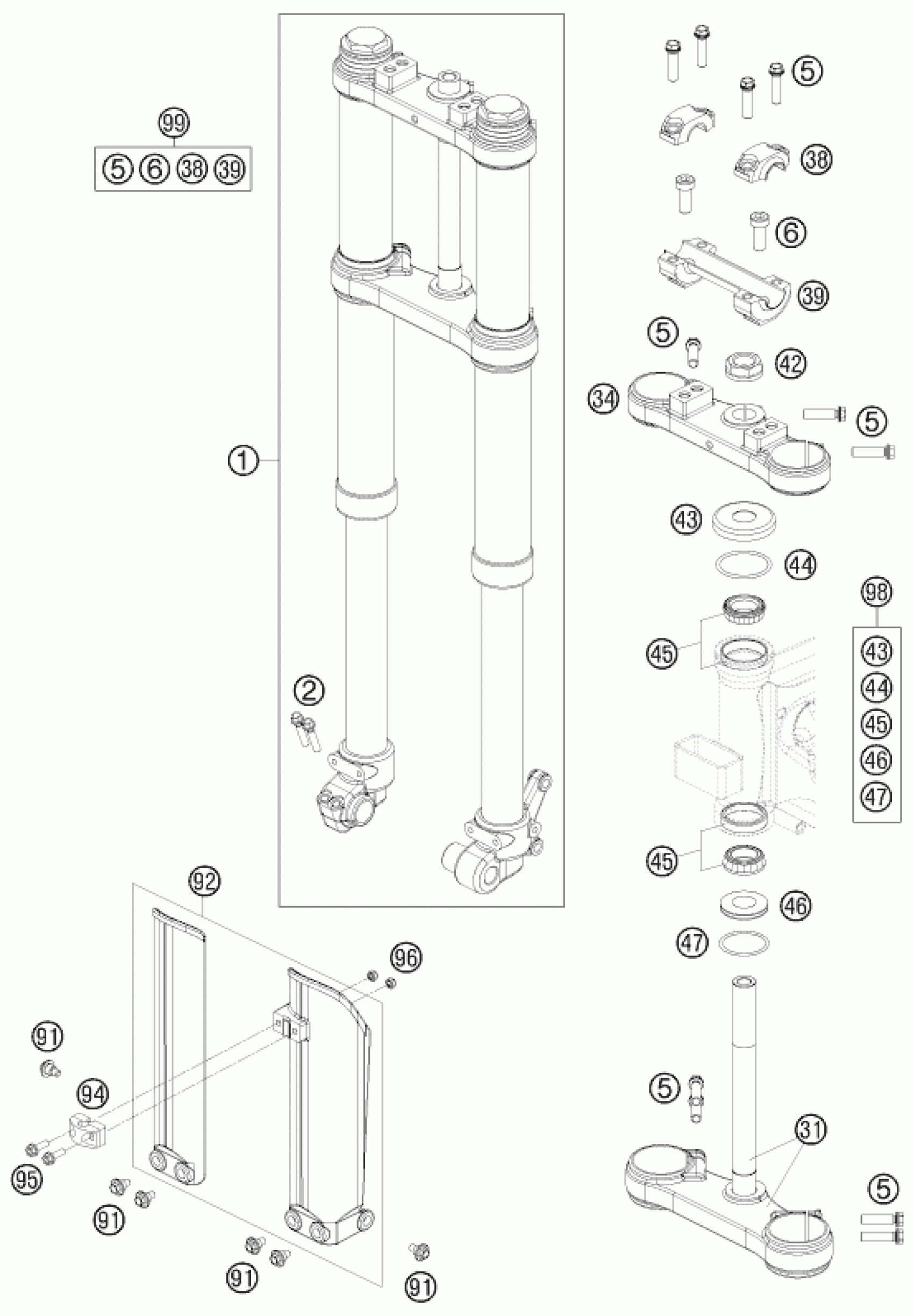

KTM 65 SX 2011 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FRONT FORK USS D035MM 09

46201000033

$643.82

2

HH collar screw M6x30 TX30

0025060306

$3.08

5

HH collar screw M8x30

0025080306

$3.08

6

AH collar screw M10x25 ISA45

0032100256S

$4.11

31

BOT.TRIPLE CLAMP + FORK TUBE

77051116

$192.59

34

TOP TRIPLE CLAMP

7501478

$109.80

38

HANDLEBAR CLAMP D=22MM 2001

50301038000

$21.50

39

HANDLEBAR SUPPORT 22MM 2T 2000

59001039000

$53.05

42

HH NUT M20X1,5 WS=27 RIGHT

59030029000

$8.87

43

COVERING CAP

49001086000

$6.72

44

O-ring 40.94X2.62 NBR70

0770021300

$3.08

45

TAPERED ROLLER BEARING 32004X

49001081000

$42.16

46

PROTECTION RING 20,1X39X5

46001086000

$8.59

47

O-RING 36,00X3,00 NBR

0770360030

$2.05

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROTECTOR SET 65 SX WHITE

4610109400028

$21.68

94

BRAKE HOSE CLIP

5460108500028

$4.11

95

HH collar screw M5x16 TX30

0025050166

$2.05

96

Self locking nut DIN 985 M5

0985050003

$2.05

99

HANDLEBAR SUPPORT KIT

00050000923

Unavailable

98

STEARING HEAD REP. KIT MINI

00050000931

Unavailable
