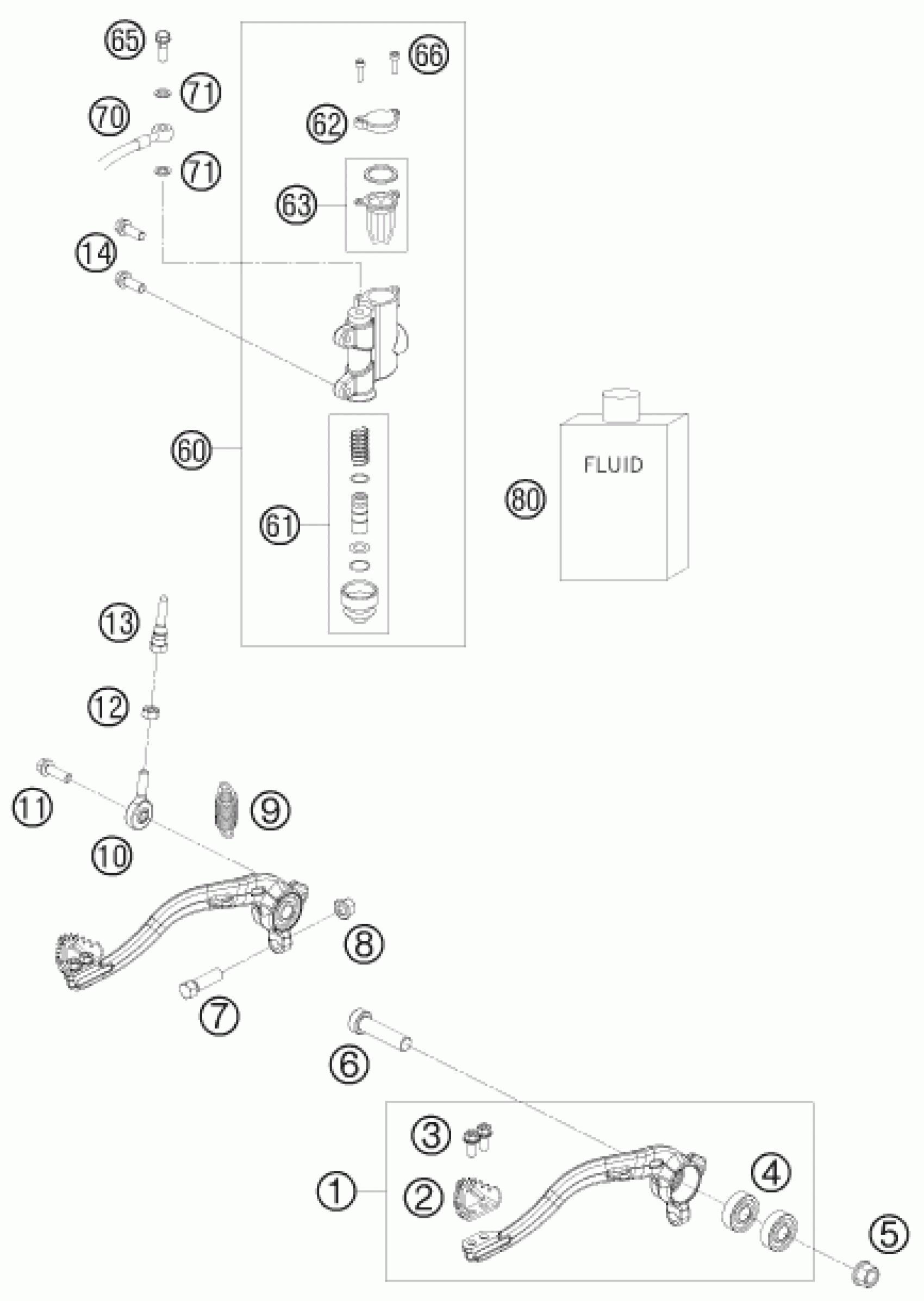

KTM 65 SX 2010 REAR BRAKE CONTROL Diagram

FOOT BRAKE LEVER 65SX CPL.

46213050044

$100.97

STEP PLATE FOR BRAKE LEVER

54813051000

$11.02

HH collar screw M5x12 TX30

0025050126

$3.08

deep groove ball bearing SKF 6

0625060002

$12.33

COLLAR NUT M10 WS=13

54630044000

$1.49

AH SCREW DIN6912 M10X40 10.9

0912100406

$4.11

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

flanged nut M8 WS10

46030045000

$7.85

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

SWIVEL HEAD KA6 03

54813055000

$19.91

HH collar screw M6x20 TX30

0025060206

$3.08

Hex. nut DIN 934 M6

0934060003

$1.49

PRESSURE ROD 85 SX 06

47013056100

$13.08

HH collar screw M6x16 TX30

0025060166

$3.08

FOOTBRAKECYL.R. CPL. D=12 05

47013060300

$189.14

Rep.set piston, rear D=12 2004

47013061100

$75.45

CYLINDER COVER REAR 85 SX 03

47013062000

$8.87

GASKET CYLINDER COVER REAR 03

47013063000

$10.74

Hollow screw, brake cylinder 0

47013025000

$10.84

AH.SCREW DIN0912-M 4X10

0912040103

$2.05

BRAKE HOSE REAR 65 SX 09

46213070000

$101.81

O-RING 8,00X1,00 FORMULA

0770080019

$2.05

Brake fluid DOT5.1 0,25L

00062030000

$12.52
