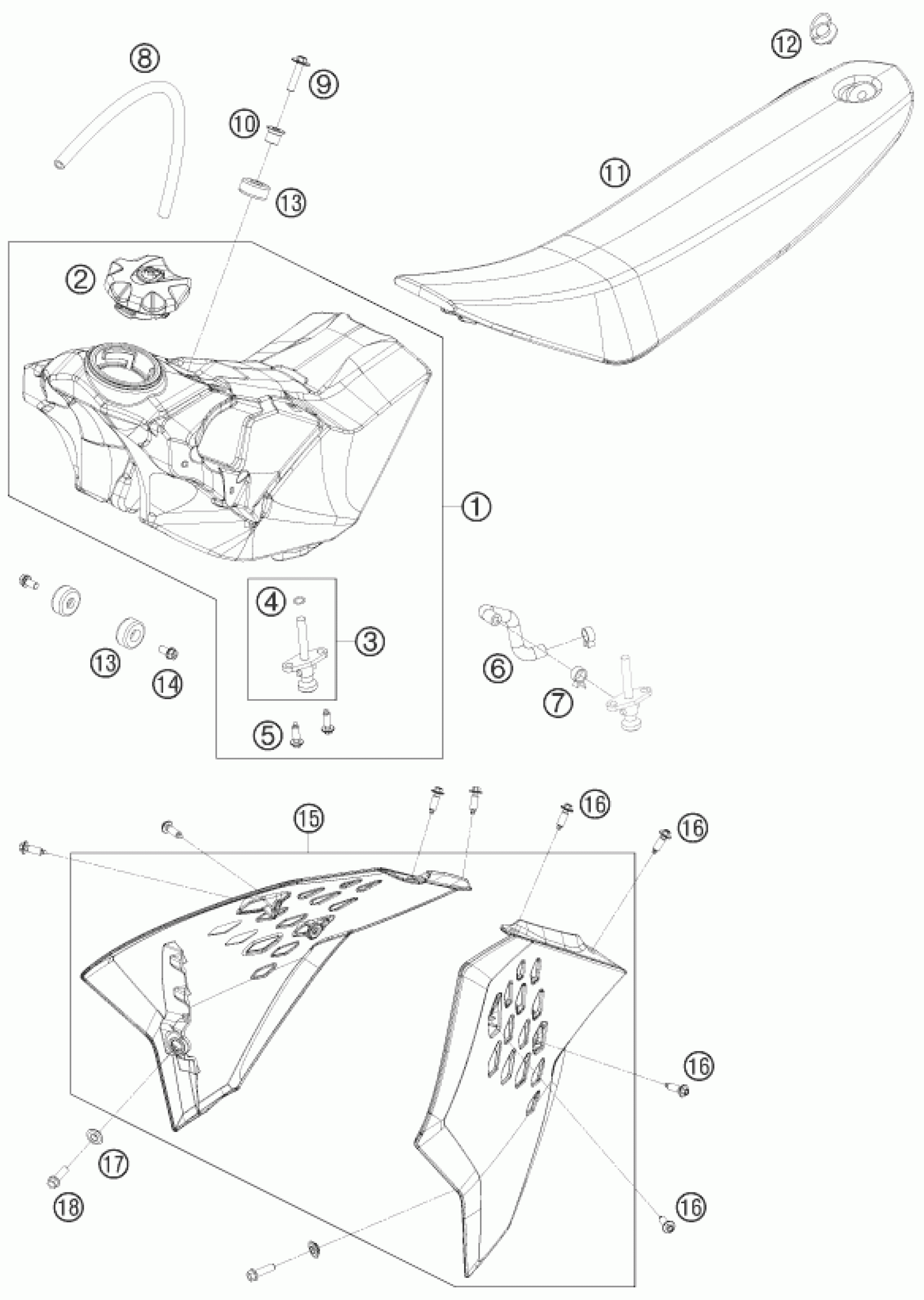

KTM 65 SX 2009 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. 65 SX 2009

4620701303330

$117.64

2

TANK PLUG ORANGE/BLACK

7800700804404

$29.07

3

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

4

O-RING 11X1,8 NBR 70

55007006200

$2.05

5

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

6

FUEL PREFORMED HOSE 65 SX 2009

46207016000

$8.41

7

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

8

PVC-hose 5.6X10X270MM

78007000270

$2.61

9

COLLAR SCREW M6X27 TX

0024060273

$3.08

10

TANK BUSHING 07

77307026000

$4.11

11

SEAT 65 SX 2009

46207040000

$106.21

12

Quick lock

45007040051

$20.19

13

TANK ROLLER 12X26X12 '98

50307014000

$11.02

14

HH collar screw M6x12 TX30

0025060126

$3.08

15

SPOILER SET BLACK 65SX/XC 09

4620805400030A

$50.97

16

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

17

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

18

HH collar screw M6x20 TX30

0025060206

$3.08
