SWING ARM

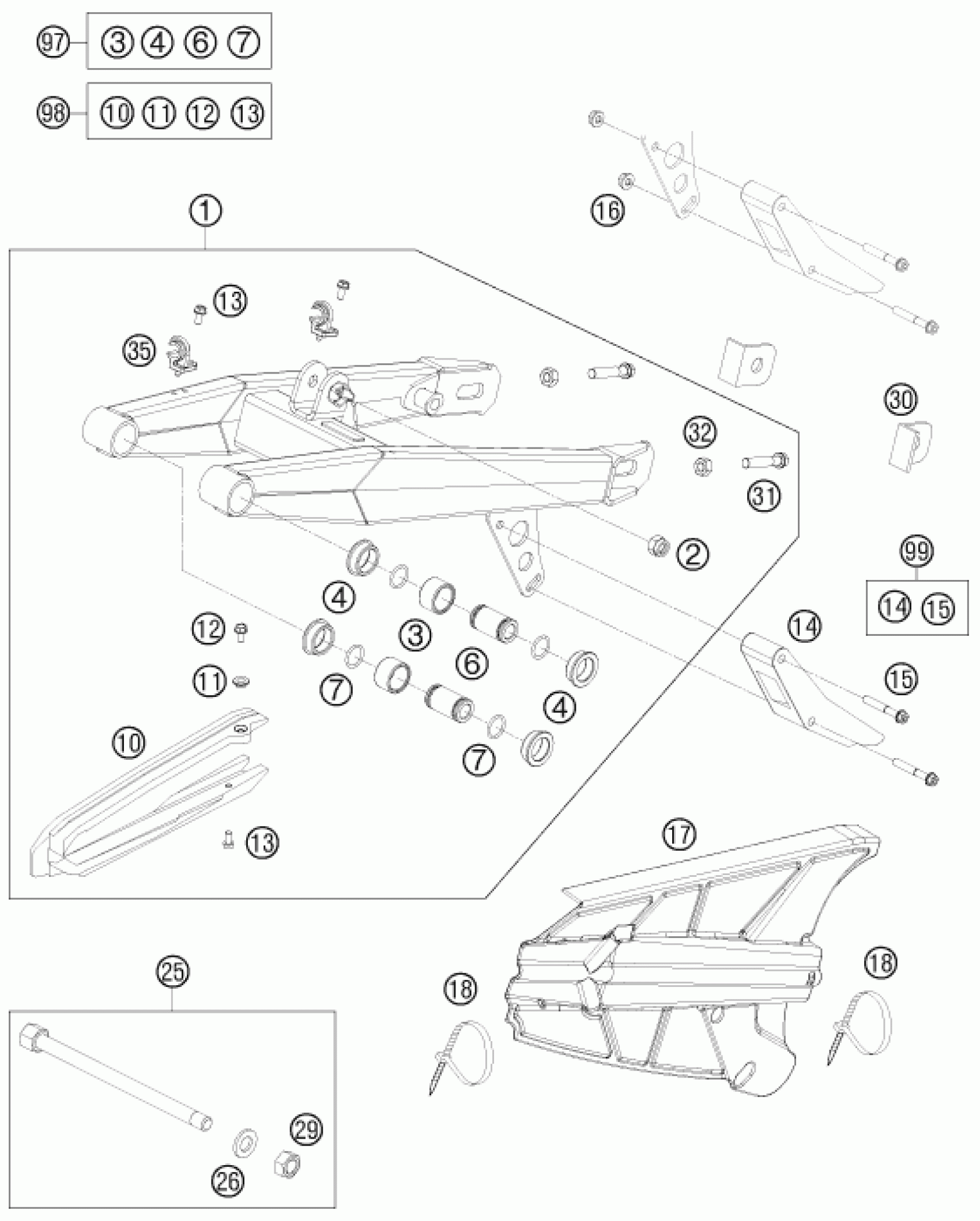

KTM 65 SX 2009 SWING ARM Diagram
#
Description
Price
6
Bearing bush 12x20x36.5
46004030071
$17.85
7
O-ring 16x2 Viton 75
0770160021
$3.08
10
CHAIN SLID. GUARD FRO. 65SX 02
46104066000
$18.78
11
BUSH FOR CHAINSLIDER GUARD 02
46104066050
$8.31
12
SPECIAL SCREW M 5,0X10
0010050103
$2.05
13
SPECIAL SCREW M 5,0X10
0009050103
$2.05
14
CHAIN GUIDE REAR 60/65 '98
46007066000
$14.02
15
HH collar screw M6x40 TX30
0025060406
$3.08
16
Self locking nut M6 - 10
56509064100
$2.05
25
SWINGARM BOLT CPL. 201MM
46204037033
$46.46
26
FLAT WASHER DIN0125-A13
0125120003
$1.49
30
CHAIN ADJUSTER 60/65 '98
46010083000
$14.02
31
HH SCREW M8X40 WS=10
50203030090
$4.11
32
Hexagon nut DIN934 M8
0934080003
$2.05
35
RETAIN.CLAMP FOR BRAKE HOSE'96
54611076100
$2.05
29
Nut M12x1 h10 WAF19 DIN 934
0934120103
$2.05
1
SWING ARM CPL. 65 SX 2008
46104030144
$566.55
3
Needle bushing HK 2016 / 20x26
54603097000
$15.04
4
Spacer bushing 20X26X30X9.7
46004030070
$3.08
17
CHAIN GUARD 08
46104061000
$14.02
18
CABLE TIE 300/4,8MM BLACK
44011076305
$2.05
2
SELF LOCKING NUT M10 CU WS=14
54310086100
$2.05
97
SWINGARM REP. KIT 50/65 SX
45204230010
$65.82
98
CHAIN GUARD KIT 09-14
46104066010
$24.86
99
CHAIN GUIDE KIT REAR 09-14
46007066010
$15.70
