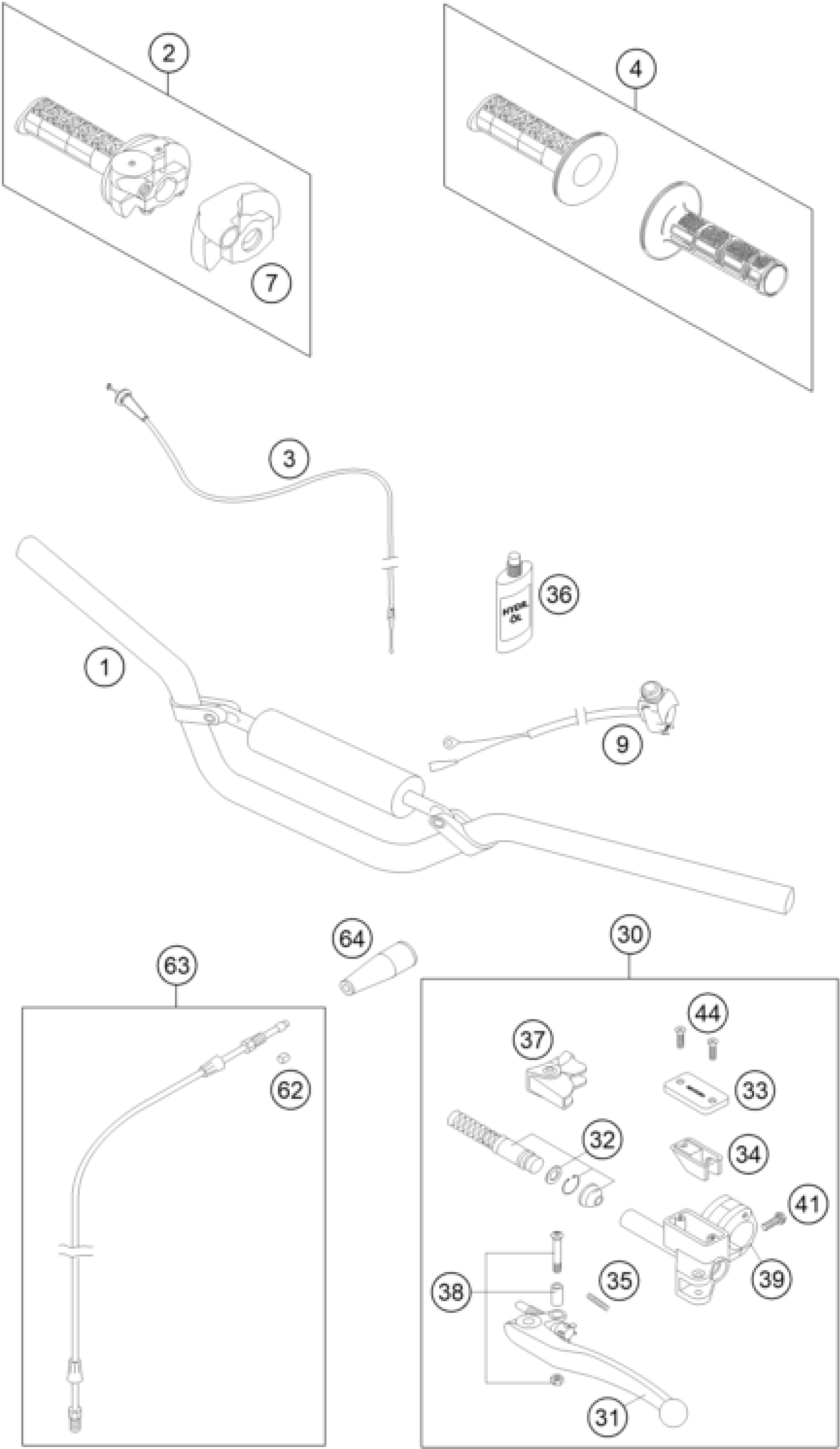

KTM 65 SX 2009 HANDLEBAR, CONTROLS Diagram

CLUTCH LEVER LONG CPL. 2003

59002031000

Unavailable

REP.KIT PISTON 9,0MM RAC. 2004

59002032100

$64.23

COVER HYD.CLUTCH 2T 2000

50302033100

$27.76

RUBBER FOR RESERVOIR '98

50302034000

$18.97

SPRING FOR CLUTCH LEVER 03

59002035000

$4.11

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

CLAMP WITH PIN 2000

50302030150

$33.18

HH collar screw M6x20 TX30

0025060206

$3.08

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

SELF CUTTING RING HYDR.PIPE

50332063050

Unavailable

PIPE KIT FOR HYDR.CLUTCH 65 SX

46132063000

$59.34

PROTECTION CAP

54002016000

$10.65

HANDLEBAR 65 SX 2009

46202001000

$144.08

THROTTLE GRIP 65SX 09

46202010000

Unavailable

THROTTLE CABLE 65 SX 2009

46202091000

$43.28

GRIP SET DUAL COMPOUND

63002021100

$26.17

PROTECTION COVER '97

50302020000

$19.16

Kill switch

50311089200

$37.58

MASTER CYLINDER CPL. D=9MM 05

46102030100

$284.23

CLUTCH LEVER SHORT CPL. 2003

54602031000

$39.16
