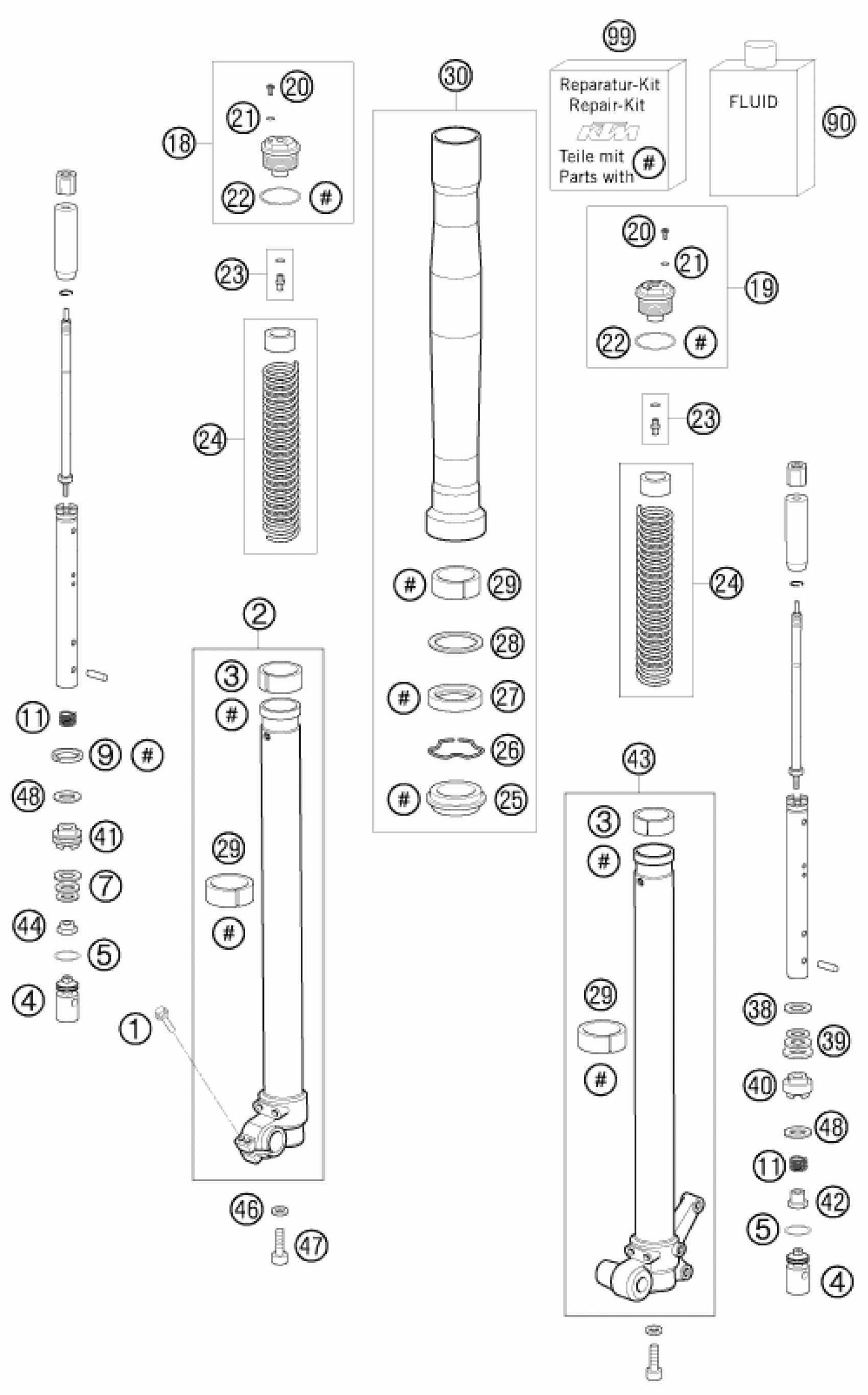

KTM 65 SX 2009 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

HH collar screw M6x30 TX30

0025060306

$3.08

2

SLIDER + AXLE CLAMP CPL. R/S

7819139/C

Unavailable

3

GUIDE RING D=35

7538029

$21.34

4

FOOT VALVE

7717065/R

Unavailable

5

O-RING D=20,3

7528005

$1.49

7

SHIM 8,1X23X0,1

7517082

$4.96

9

PISTON RING D=26

7524163

$7.13

11

LOWER REBOUND SPRING

75141087

$1.49

19

PLUG L/S CPL.

7701205AC

$99.60

20

LENTIL HEAD SCREW M4X6

7850208AR

$1.73

21

O-RING D=3,69, S=1,78

7528180

$1.49

22

O-RING D=34,6, S=1,78

7528008

$3.48

24

SPRINGS + PRELOAD SLEEVES KIT

7850728

Unavailable

25

DUST CAP

7533167

$33.46

26

LOCK WASHER D=51,5

7523236

$3.89

27

OIL SEAL 35X47X10

7528034

$20.78

28

WASHER 36X47X3

7539032AA

$2.61

29

GUIDE RING 35X15

7538038/A

Unavailable

30

OUTER TUBE CPL.

7760069FN/C

Unavailable

38

COMPRESSION DAMPING SHIM

7535099

$6.55

39

SHIM 8,1X23X0,2

7517028

$1.65

39

SHIM 8,1X18X0,2

7517074

$1.65

39

SHIM 8,1X21X0,2

7517057

$5.05

40

PISTON COMPRESSION D=26

7530090/B

Unavailable

42

SPECIAL NUT M6X1 WITH STEP

7521147/A

Unavailable

43

SLIDER + AXLE CLAMP CPL. L/S

7819140/C

Unavailable

46

SHIM 8X12X1,5

7522061

$1.49

47

AH SCREW DIN0912-M 8X25

0912080253

$2.05

48

SHIM 8,1X23X0,3

7517044

$1.73

90

FORKOIL EBH16 SAE 7.5

7550013

Unavailable

99

REPAIR-KIT USD 35

7850731/C

Unavailable

18

PLUG R/S CPL.

7701204AC

$104.57

23

PIN + O-RING

7850652

$16.55

41

PISTON COMPRESSION D=26

7530088/B

Unavailable

44

SPECIAL NUT M6X1 WITH STEP

7521092/E

Unavailable
