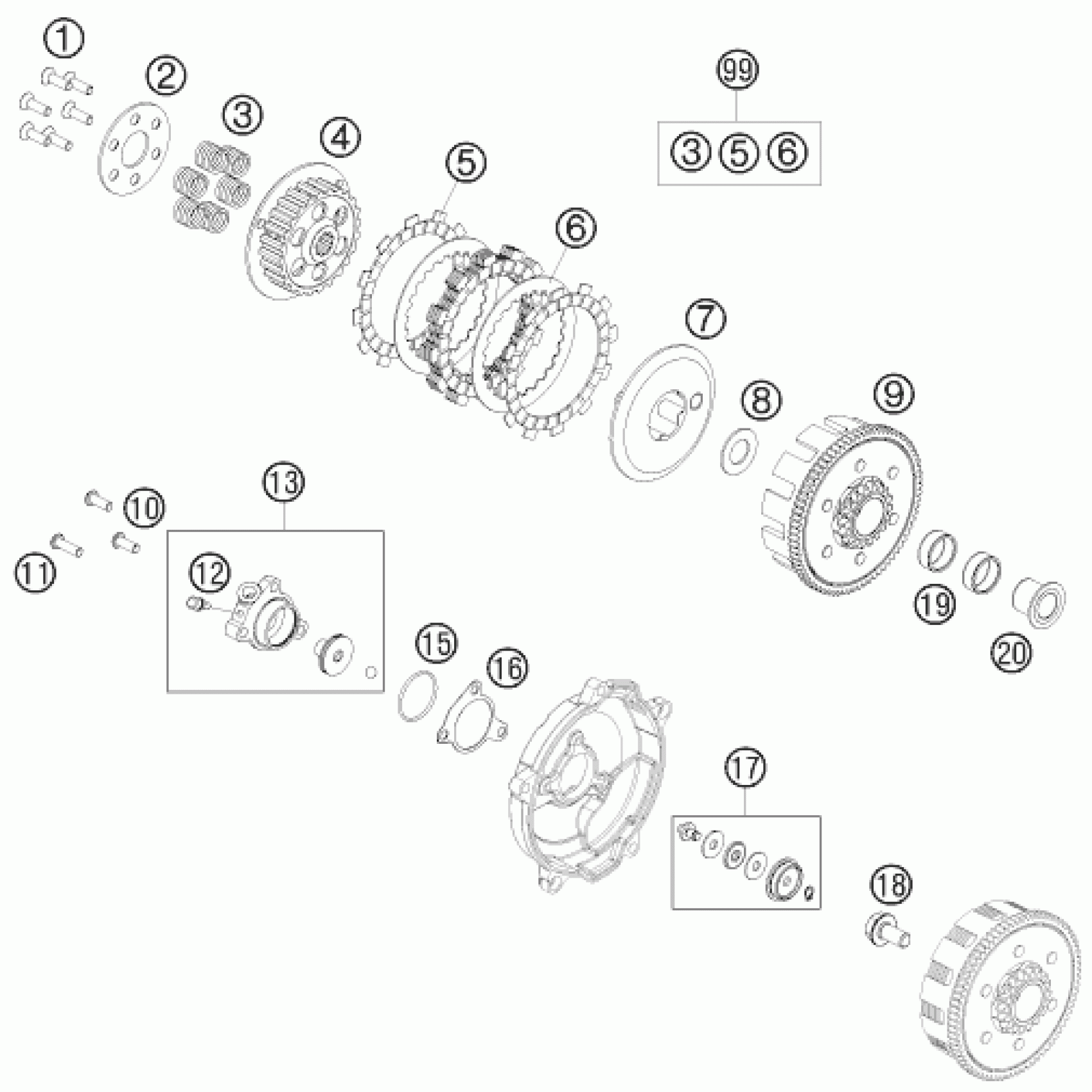

KTM 65 SX 2009 CLUTCH Diagram

NEEDLE BEARING K 22X26X10 A

0405222610

$6.72

INNER RING WITH COLLAR

46232015000

$24.02

Flat head screw DIN7991 M6X20

0991060202

$2.05

SPRING RETAINER 25X63,5X2

46032006000

$28.70

CLUTCH SPRING KIT

46232005044

$25.14

CLUTCH HUB

46232002000

$81.52

LINING DISK KIT

46032011044

$104.62

INTERMEDIATE DISK STEEL

46032010000

$12.33

CLUTCH PRESSURE CAP

46232003000

$62.54

FLAT HEAD SCREW ISO7380 M6X20

0738060201

$1.49

BLEEDER SCREW WITH CAP

54732064000

$21.96

GASKET FOR SLAVE CYLINDER

59032065000

$5.60

OUTPUT CYL. WITH BLEEDER SCREW

75032061044

$240.75

O-ring 30x1.5 NBR 70

0770300015

$2.05

PRESSURE PIECE CPL.

46232057000

$31.22

HH COLLAR SCREW M10X20

46132019000

$5.70

STOP DISC 17,2X32X1,5

46232012000

$2.05

PRIMARY DRIVE WITH CLUTCH CAGE

46232000044

$379.70

FLAT HEAD SCREW ISO7380 M6X16

0738060161

$1.49

CLUTCH KIT 65 SX 09-14

46232010010

$164.36
